Global Laser Cameo 1250 CW User Manual

Cameo Userguide

1. Product Overview

Thank you for purchasing a Cameo laser module. This module emits a red / infra red spot or

projection. You will have one of the following two versions.

1250 CW Cameo

1260 Gated Cameo

If you have any queries or require help when using the Cameo range please call us on +44(0)1495

212213 or contact your local representative.

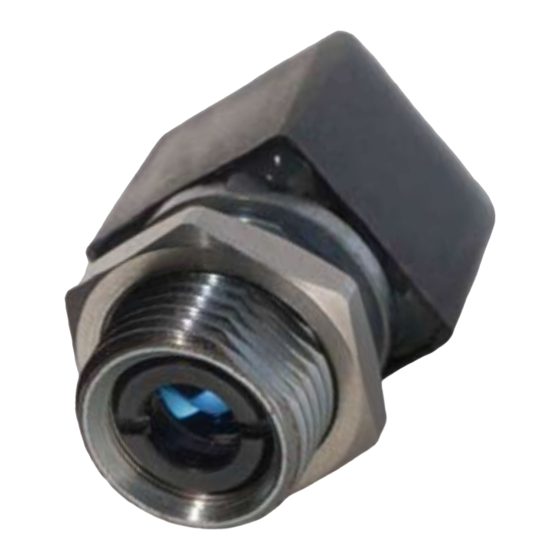

The Cameo series is a miniature laser diode module that has a threaded barrel for easy bulkhead

mounting which also ensures good thermal contact between module and heat sink. This new

concept in laser module design allows a laser diode, an adjustable collimating lens and a drive

circuit to be incorporated within a body which is just 23mm long and all without compromising

the performance. The Cameo offers high output power stability with transient and polarity

protection, as well as electrical isolation between diode and case. It has a latching connector

that improves reliability.

Table of Contents

Do you have a question about the Cameo 1250 CW and is the answer not in the manual?

Page 1 Cameo Userguide 1. Product Overview Thank you for purchasing a Cameo laser module. This module emits a red / infra red spot or projection. You will have one of the following two versions. 1250 CW Cameo 1260 Gated Cameo If you have any queries or require help when using the Cameo range please call us on +44(0)1495 212213 or contact your local representative.
Page 2 2. Production Operation A: 1250 CW Cameo To operate the laser, connect the input wires in the below configuration. 1. Red Lead: +3.3Vdc to +5Vdc 2. Green Lead: 0Vdc B: 1260 Gated Version Introduction A common requirement for applications which use photo detectors, cameras and other non- visual sensing is the ability to rapidly switch the laser output ON and OFF.
Page 3 1. Red Lead: +3.3Vdc to +5Vdc 2. Black Lead: 0Vdc 3. Yellow Lead: +V supply 4. Blue Lead: +V on, OV off TTL MODE: With this version, the yellow wire can be utilised to be driven with a TTL input modulation signal.
Page 4 6. Warranty & Repair If your product develops a fault within 12 months from the date of purchase Global Laser will repair / replace the product. If you wish to return a faulty product contact your local representative or Global Laser to obtain a RMA (Return Material Authorisation code) and...

Cameo 1260 gated
