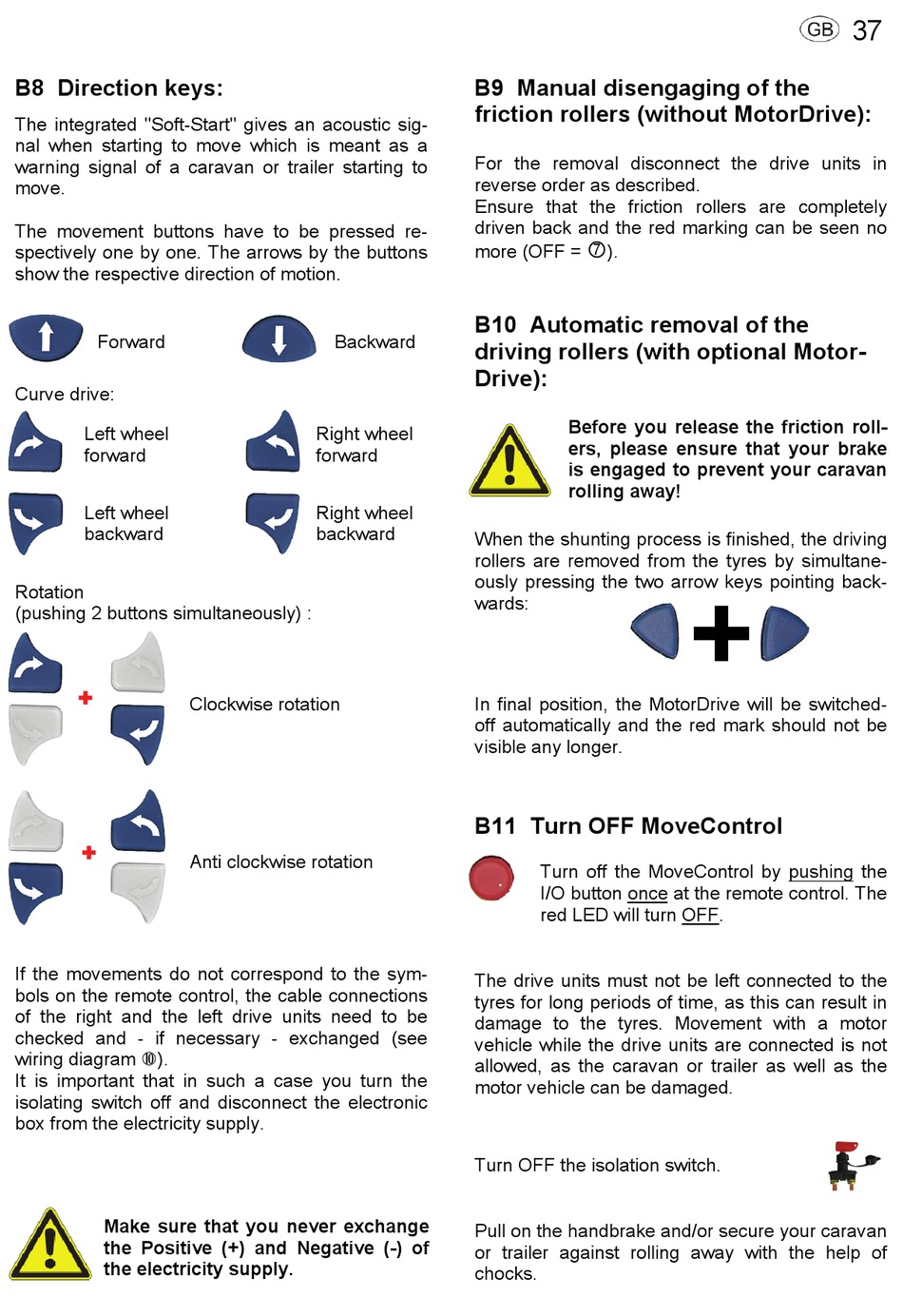

REICH Move Control 527-0521 Installation And Instruction Manual page 37

B8 Direction keys:
The integrated "Soft-Start" gives an acoustic sig-
nal when starting to move which is meant as a
warning signal of a caravan or trailer starting to
move.
The movement buttons have to be pressed re-
spectively one by one. The arrows by the buttons
show the respective direction of motion.
Forward
Curve drive:
Left wheel
forward
Left wheel
backward
Rotation
(pushing 2 buttons simultaneously) :
+
+
If the movements do not correspond to the sym-
bols on the remote control, the cable connections
of the right and the left drive units need to be
checked and - if necessary - exchanged (see
wiring diagram ).
It is important that in such a case you turn the
isolating switch off and disconnect the electronic
box from the electricity supply.
Make sure that you never exchange
the Positive (+) and Negative (-) of
the electricity supply.
Backward
Right wheel
forward
Right wheel
backward
Clockwise rotation
Anti clockwise rotation
B9 Manual disengaging of the
friction rollers (without MotorDrive):
For the removal disconnect the drive units in
reverse order as described.
Ensure that the friction rollers are completely
driven back and the red marking can be seen no
7
more (OFF = ).
B10 Automatic removal of the
driving rollers (with optional Motor-
Drive):
Before you release the friction roll-
ers, please ensure that your brake
is engaged to prevent your caravan
rolling away!
When the shunting process is finished, the driving
rollers are removed from the tyres by simultane-
ously pressing the two arrow keys pointing back-
wards:
In final position, the MotorDrive will be switched-
off automatically and the red mark should not be
visible any longer.
B11 Turn OFF MoveControl
Turn off the MoveControl by pushing the
I/O button once at the remote control. The
red LED will turn OFF.
The drive units must not be left connected to the
tyres for long periods of time, as this can result in
damage to the tyres. Movement with a motor
vehicle while the drive units are connected is not
allowed, as the caravan or trailer as well as the
motor vehicle can be damaged.
Turn OFF the isolation switch.
Pull on the handbrake and/or secure your caravan
or trailer against rolling away with the help of
chocks.
37
+
