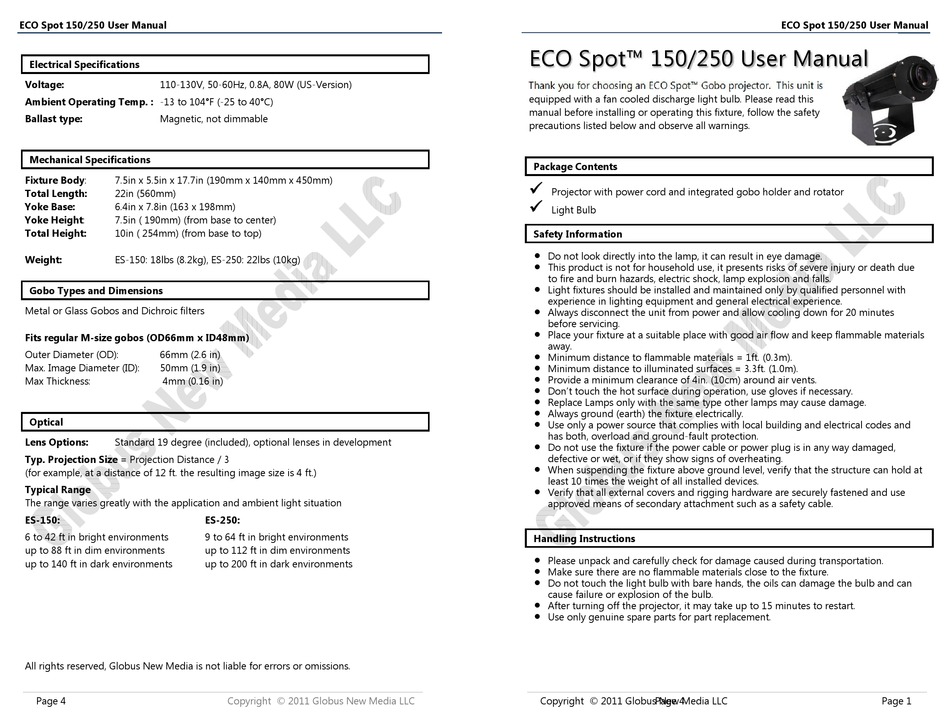

ECO Spot 150/250 User Manual

Electrical Specifications

Voltage: 110-130V, 50-60Hz, 0.8A, 80W (US-Version)
Ambient Operating Temp. : -13 to 104°F (-25 to 40°C)
Ballast type: Magnetic, not dimmable

Mechanical Specifications

Fixture Body: 7.5in x 5.5in x 17.7in (190mm x 140mm x 450mm)
Total Length: 22in (560mm)
Yoke Base: 6.4in x 7.8in (163 x 198mm)
Yoke Height: 7.5in ( 190mm) (from base to center)
Total Height: 10in ( 254mm) (from base to top)
Weight: ES-150: 18lbs (8.2kg), ES-250: 22lbs (10kg)

Gobo Types and Dimensions

Metal or Glass Gobos and Dichroic filters
Fits regular M-size gobos (OD66mm x ID48mm)
Outer Diameter (OD): 66mm (2.6 in)
Max. Image Diameter (ID): 50mm (1.9 in)
Max Thickness: 4mm (0.16 in)

Optical

Lens Options: Standard 19 degree (included), optional lenses in development
Typ. Projection Size = Projection Distance / 3
(for example, at a distance of 12 ft. the resulting image size is 4 ft.)

Typical Range

The range varies greatly with the application and ambient light situation
ES-150:
6 to 42 ft in bright environments
up to 88 ft in dim environments
up to 140 ft in dark environments
All rights reserved, Globus New Media is not liable for errors or omissions.
Page 4
ES-250:
9 to 64 ft in bright environments
up to 112 ft in dim environments
up to 200 ft in dark environments
Copyright © 2011 Globus New Media LLC
ECO Spot™ 150/250 User Manual
Thank you for choosing an ECO Spot™ Gobo projector. This unit is
equipped with a fan cooled discharge light bulb. Please read this
manual before installing or operating this fixture, follow the safety
precautions listed below and observe all warnings.
Package Contents

Projector with power cord and integrated gobo holder and rotator

Light Bulb

Safety Information


Do not look directly into the lamp, it can result in eye damage.

This product is not for household use, it presents risks of severe injury or death due
to fire and burn hazards, electric shock, lamp explosion and falls.

Light fixtures should be installed and maintained only by qualified personnel with
experience in lighting equipment and general electrical experience.

Always disconnect the unit from power and allow cooling down for 20 minutes
before servicing.

Place your fixture at a suitable place with good air flow and keep flammable materials
away.

Minimum distance to flammable materials = 1ft. (0.3m).

Minimum distance to illuminated surfaces = 3.3ft. (1.0m).

Provide a minimum clearance of 4in. (10cm) around air vents.

Don't touch the hot surface during operation, use gloves if necessary.

Replace Lamps only with the same type other lamps may cause damage.

Always ground (earth) the fixture electrically.

Use only a power source that complies with local building and electrical codes and
has both, overload and ground-fault protection.

Do not use the fixture if the power cable or power plug is in any way damaged,
defective or wet, or if they show signs of overheating.

When suspending the fixture above ground level, verify that the structure can hold at
least 10 times the weight of all installed devices.

Verify that all external covers and rigging hardware are securely fastened and use
approved means of secondary attachment such as a safety cable.

Handling Instructions


Please unpack and carefully check for damage caused during transportation.

Make sure there are no flammable materials close to the fixture.

Do not touch the light bulb with bare hands, the oils can damage the bulb and can
cause failure or explosion of the bulb.

After turning off the projector, it may take up to 15 minutes to restart.

Use only genuine spare parts for part replacement.
Copyright © 2011 Globus New Media LLC Page 4
