Suburbanite

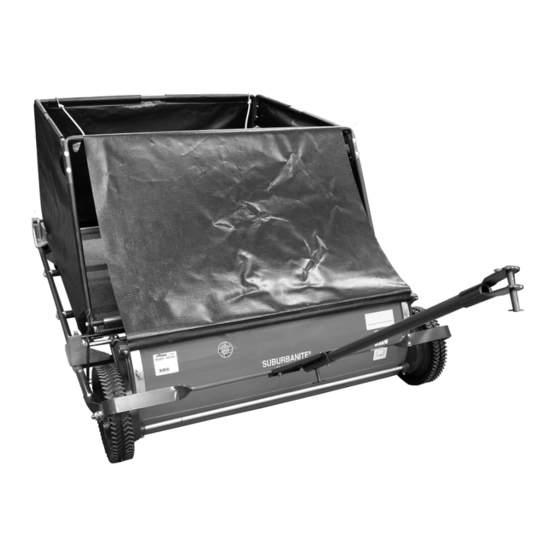

36" Trailing Lawn Sweeper
Owner/Operator & Parts Manual
Model
895803 – Mesh Bottom
895802 – Hard Bottom
04155800D 1/12
Printed in USA

Advertisement

loading
Need help?

Need help?

Do you have a question about the Suburbanite 895803 and is the answer not in the manual?

Questions and answers

Summary of Contents for Parker Suburbanite 895803

  • Page 1 Suburbanite 36” Trailing Lawn Sweeper Owner/Operator & Parts Manual Model 895803 – Mesh Bottom 895802 – Hard Bottom 04155800D 1/12 Printed in USA...
  • Page 2: Table Of Contents

    WARNING: Improper assembly or adjustments can cause serious injury. PRODUCT REGISTRATION The Parker dealer must register the product at the time of 2. Understand all Safety Precautions provided in the purchase. Registering the product will help the company manuals.
  • Page 3: Safety

    SAFETY SAFETY ALERTS Look for these symbols to point out important safety precautions. They mean: Attention! Personal Safety Is Involved! Become Alert! Obey The Message! The safety alert symbols above and signal words below are used on decals and in this manual. Read and understand all safety messages.
  • Page 4: Operation

    Check parts for wear, deterioration, or damage. Replace a large capacity of dry grass clippings. When ONLY with Parker original service parts before operating. grass clippings are wet or freshly cut, caution should be exercised on the amount picked up.
  • Page 5: Maintenance

    HOOD ADJUSTMENT 1. The hood can be adjusted to change the deflection of the material being handled by loosening the wing nuts on both sides of the hood and sliding the hood up or down (figure 3). 2. If sweeping at a high rate of speed, the hood should be raised to deflect the material to the back of the basket.
  • Page 6 Left Pinion Right Pinion 1/2" overlap Roller Plastic Tube Figure 5 Figure 7 RE-INSTALLING PINIONS IN MANUAL SWEEPERS 3. Assemble pinion part no. P74-79-BL to the left side If pinions are removed for any reason, carefully follow the of shaft and pinion part no. P74-78-BR to the right steps below to reassemble.
  • Page 7: Specifications

    SPECIFICATIONS Model Number 895803 895802 Description 36" Trailing Lawn Sweeper Sweeping Width 36" Application Large Turf Areas Conditions Wet or Damp Weight (lbs.) Overall Dimensions 93" (236 cm) L x 32" (81 cm) H x 46" (117 cm) W Bottom Mesh Hard Material...
  • Page 8: Parts List

    PARTS LIST SWEEPER UNIT ASSEMBLY...
  • Page 9 Hood with Decals PSA-609-C Sweeper Tire/Wheel Assembly (includes items 7, 8 & 9) PSA-1580-B Pinion Kit (includes items 3, 4, 5 & 26) 07800314 Decal, Parker Logo 04199900 Decal, Suburbanite 04147800 Decal, Danger Read Manual 07800317 Decal, Parker, Heritage Small...
  • Page 10 FRAME ASSEMBLY...
  • Page 11 FRAME ASSEMBLY Item Part No. Qty. Description P80-126-B Frame Side P82-12-B Clamp, Half P92-22-D End Cap, Tube P81-105-B Angle Bracket P59-59-A Bracket, Adjust P78-130-A Bearing P76-136-B Caster Fork P76-58-A Roller P82-138-B-3 Washer, Area Vac 35 29/64 x 1-3/4 x.134 PSA-835-C Cross Brace, Forward P81-172-A Tube Connector, Round To Round...
  • Page 12 BASKET ASSEMBLY NOTE: To replace basket sides or bottom, drill out rivets (item 15) in bottom using 3/16" diameter drill bit. Item Part No. Qty. Description PSA-1590-C Basket Clamp Assembly PSA-1591-C Basket Clamp Assembly PSA-1427-B Basket Clamp Assembly P86-105-B Support Rod P82-86-B Rear Upright P82-87-B...
  • Page 13 HITCH ASSEMBLY Item Part No. Qty. Description P75-32-B Tongue Weldment M88183 Ring, Locking 04197800 Pin, Hitch P75-134-B 1 Yoke P75-40-B Hitch Plate Weldment 05946900 Bolt, Hex .31-18 x 1.00 Gr 5 YWZC 06530200 Nut, Nylok .312-18 YWZC 06700002 Pin, Cotter .09 x 1.50 YWZC...
  • Page 14: Warranty

    An authorized Ariens dealer (Ariens brand products), Gravely dealer (Gravely brand products), Parker dealer (Parker brand products), or Countax dealer (Countax brand products) will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser except as noted below.
  • Page 15 Exclusions - Items Not Covered by This Warranty • Parts that are not genuine Ariens, Gravely, Parker or Countax service parts are not covered by this warranty and may void the warranty. • Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty.
  • Page 16 Parker 655 West Ryan Street Brillion, WI 54110 920-756-4688 Fax 920-756-2407 www.ariens.com www.parkersweeper.com...

This manual is also suitable for:

Suburbanite 895802
