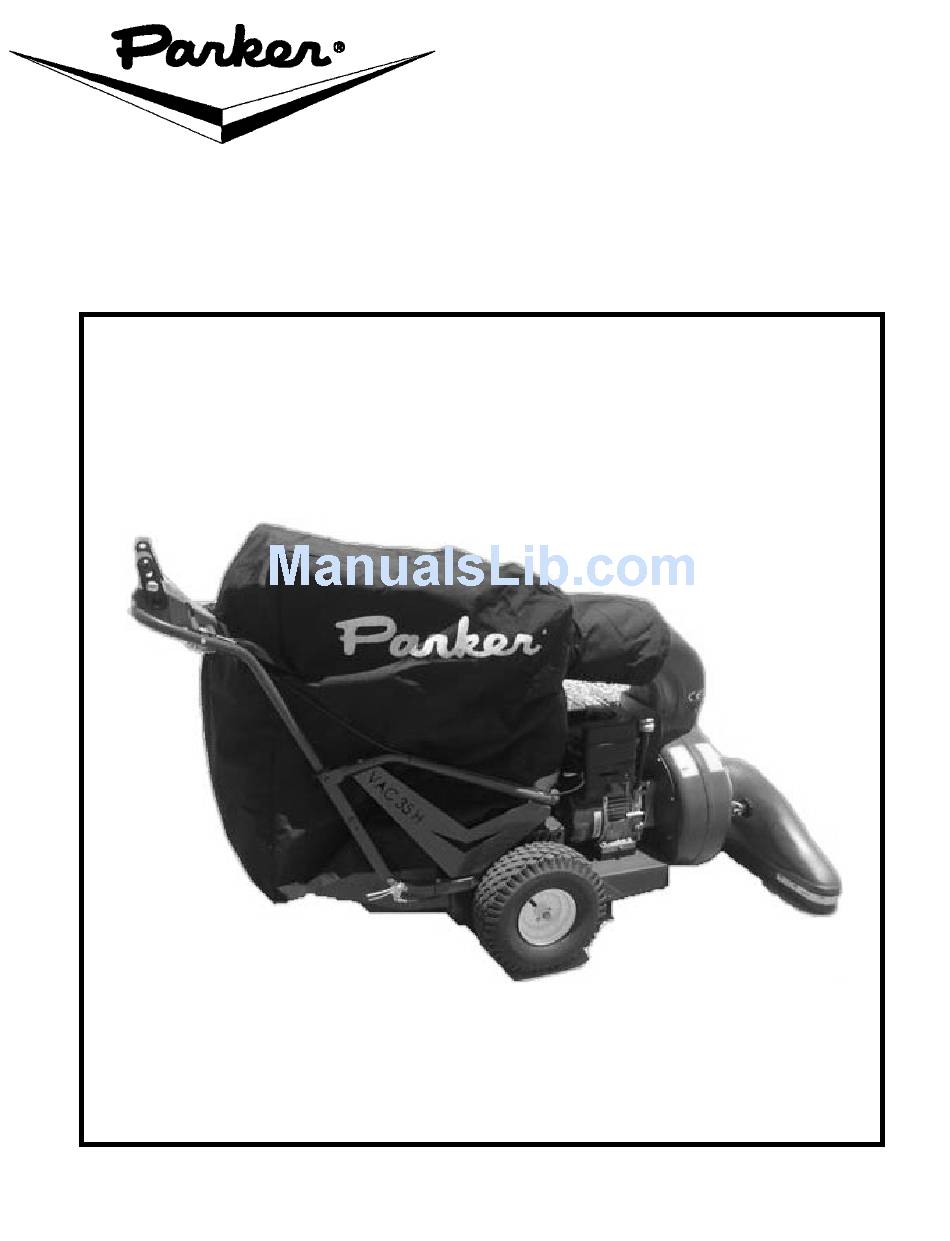

- Page 1 Model: PV0110BSPH PV0285KSPH PV9308HSPH Vac-35 Hydrostatic Drive PV9908KLPSPH OPERATION SERVICE PARTS CARE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of contents Declaration of conformity General Safety Instructions 4 & 5 Warning Decal Replacement Operating Instructions 7 & 8 Assembly Instructions Safety Interlock Accessories Upper Handle Assembly Upper Control Assembly 13 & 14 Traction Drive Assembly 15 &... -
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturers Name: Parker Company Inc. Manufacturers Address: 3700 East Anne Street Phoenix, AZ 85040 USA Equipment Description: Vac 35 Self Propelled Equipment Model Designation: PV0110BSPH, PV9308HSPH PV0285KSPH, PV9908KLPSPH Application of Council Directives: EN50366, 2000/14/EC, EN12100-1 EN12100-2, EN55012... -
Page 4: General Safety Instructions 4
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING WARNING To prevent personal injury or property damage, do not attempt to start engine until all assembly steps are complete and you have read and understand the safety and operating instructions in this manual. ... - Page 5 Never use a non-UL listed propane tank. Never change or alter the fuel system unless authorized by The Parker Company Service Department. DANGER Gasoline is highly flammable and its vapors are explosive. To prevent personal injury or property damage: ...
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS READ SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING EQUIPMENT Heavy concentration of sand and gravel should be BEFORE STARTING ENGINE IMPORTANT: Read the Engine Manual CAREFULLY avoided. These materials are extremely abrasive, and before operating the VAC 35. Before starting the engine while the VAC 35 will handle moderate amounts of read and understands the following: these materials, it is not designed for heavy... - Page 8 OPERATING INSTRUCTIONS VAC 35 HYDROSTATIC DRIVE Figure1 Figure 1 shows control assembly. To Move Forward: Push control handle forward for forward motion the further the control is pushed the faster the forward motion will be. To Stop: Release the control handle, controller will return to neutral. For Reverse: Pull Control Handle to rear.
-
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS TO ASSEMBLE UPPER HANDLE NOTE: See Upper Handle Assembly Page 12 of this owner’s guide for reference numbers used in these instructions. Insert upper handle into lower struts and install 4 bolts (10) Washers (11) Nuts (12). Once bolts are installed they can be tightened. -
Page 11: Accessories
4. 5. ACCESSORIES MA-620-D 8 inch Hose Kit 350265 6 inch Hose Kit MA-622-D 4 inch Hose Kit Optional MA-113-D 24 inch Intake Standard MA-251-D 30 inch Intake Optional MA-120-D 36 inch Intake... -
Page 12: Upper Handle Assembly
Vac 35 Hydro Upper Handle Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 360707 Vac 35 Handle upper 360622 Handle Cross Brace 81-172-A Tube Connector round to round 70-416-21 Blt 1/4 – 20 x 1 1/2 711373 Nut Nyloc 1/4 711505 Wsr-Flt. -
Page 13: Upper Control Assembly 13
Vac 35 Upper Control Assembly... - Page 14 Vac 35 Upper Control Assembly PART ITEM DESCRIPTION QTY. NUMBER 360627 Nylon Bushing 360628 4 x 1/4 Selftaping Sheet Metal Screw 360632 Shld-Bolt 5/16 x 1/4 360636 VAC-35 Controller Bracket 360701 VAC-35 Controller Arm 360633 Ball Joint 1/4-28 Female 360637 Ball Joint 1/4-28 Male 711505 Wsr-Flt 1/4...
-
Page 15: Traction Drive Assembly 15
Vac 35 Hydro Traction Assembly... - Page 16 Vac 35 Hydro Traction Assembly ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER NUMBER 86-86-A Spacer .391 x .75 x .156 360700 Hydrostatic Transmission 360614 Throttle Cable Bracket 713033 Blt-HH 5/16-18 x 2 1/2 360718 Bearing holder weldment 69-416-24 Blt-Cont Hd 1/4-20 x 1.5 #5 360702 Frame Basket 713044...
-
Page 17: Housing Assembly 17
Vac 35 Housing Assembly... - Page 18 PARTS LIST ITEM PART NO. REQ'D DESCRIPTION 101008 GROMMET, RUBBER 250136 STRAIN RELIEF 340·1216 NUT-JAM 3/4 350128 HOUSING SUPPORT 350129 SWITCH BRACKET FOR 7050·10 350130 SWITCH BRACKET 6400 350135 SWITCH NUT 6250 350152 COLLAR 350275 **HEAT SHIELD VAC35 LP ** USED ON PROPANE UNITS ONLY** 350285 **TANK BRACKET ASSV VAC35LP ** USED ON PROPANE UNITS ONLY** 369-416...
-
Page 19: Turf Wheel Kit 19
Optional Vac-35 Turf Wheel Kit... - Page 20 OPTIONAL VAC-35 TURF WHEEL KIT PART ITEM DESCRIPTION QTY. NUMBER SA-914-B V AC-35 Front Arm Weldment 64-134-A Spacer .75 x 1.43 x .25 711809 Pin Cotter 1 .8 x 1 ZC 58-06-A Sleeve 711509 Wsr-Flt 1/2 STL Zinc 8O-29-A Knob - Plastic 809311 Pin -Cotter 7/32 x 1 350011...
-
Page 21: Honda 8 Hp
Honda 8 Hp PARTS LIST Item Description Part No. Qty. 350112 Finger Guard 350500 8 HP Honda Engine 711380 3/8-16 Nyloc Nut 711508 .44 x 1.00 Flatwasher 711546 3/8 Helical Washer 713045 3/8-16 x 1.75 Hex Bolt (Grd. 5) 713047 3/8-16 x 2.25 Hex bolt (Grd. -
Page 22: Kawasaki Lp 8 Hp 22
8 Hp KAWASAKI OHV PROPANE... - Page 23 PART LIST ITEM PART NO. REQD. DESCRIPTION 220070 HOSE-HIGH PRESSURE 220217 REGULATOR 350112 FINGER GUARD 350120 PULLEY MOTOR 350278 BRACKET-REGULATOR 350279 FITTING-90 3/8MPT 3/8 HOSE BRASS 350280 FITTING-1/8MPT 1/8 BARB BRASS 350283 COVER REGULATOR VAC 35 LP 350284 SPACER ARBOR 1” 1/4 KEY STL 350310 HOSE LP 13”...
-
Page 24: Kohler 8.5 Hp
PARTS LIST Item Description Part No. Qty. 711380 3/6-16 Nyloc Nut 711508 .44 x 1.00 x .06 Flat Washer 711546 WSR-Helical 3/8 713047 BLT-HH 3/8-16 x2.25 #5 713046 BLT-HH 3/8-16 x 2.00 #5 715314 Decal Muffler 350150 Spacer .406 x .75 x 1.38 350603 Engine 8.5 Hp Kohler 711515... -
Page 25: Briggs & Stratton 10 Hp
PARTS LIST Part Item Qty. Description 350112 Finger Guard 350602 10 Hp Briggs & Stratton 711374 5/16-18 Nyloc Nut 711507 WSR-Flat .37 x 1.12 x .06 711546 3/8 Helical Washer 713034 5/16-18 x 2 ¾ Bolt #5 713047 3/8-16 x2.25 Hex Bolt #5 350150 .406 x .75 x 1.375 Spacer 74-112-A... -
Page 26: Limited Warranty
The Parker Sweeper Company warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of TWO YEARS from date of purchase. In addition, Parker Sweeper Company will, at its option, honor labor warranty claims for the first 12 MONTHS from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
