- Page 1 Model： Z802 ZigBee -On/Off Output with Mechanical Switches On/Off Output With Mechanical Switches User Manual...
- Page 2 Content 1.INTRODUCTION.......................... 2 2.APPEARANCE..........................3 3. MAIN FEATURES........................3 4.INSTALLATION..........................4 .......................4 （2）J OIN INTO NETWORK （3）B ..........................5 INDING （4） C ................5 ONTROL SWITCH AND ON OFF STATUS （5）P ..................... 5 ERMIT JOIN TO NETWORK ....................5 （6）R ESTORE TO FACTORY SETTING (7) Z .........................
- Page 3 On/Off the load such as light switch attached to it. User is also able to control Z802 through application software like Netvox ZiG-BUTLER. It is based on ZigBee HA profile and applicable to any ZigBee HA network. It can communicate with router, coordinator, and other end devices in the network.

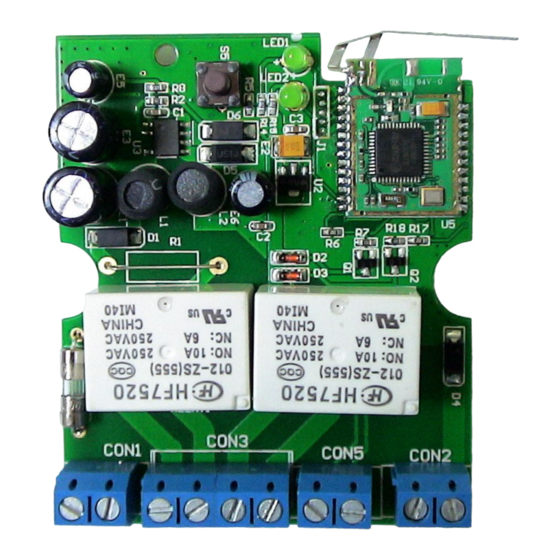

- Page 4 3. Main Features Device type：On/Off Output Protocol based on ZigBee HA Through mechanical switches and ZigBee command to control two ways switches Input Power:100~240V AC 50/60Hz Consumption: @operating mode <5mA Communication Range:70 meters 4.Installation Note: LED1 in power board is status indicator, LED2 is network indicator, S5 is binding key.
- Page 5 ① Device which can bind with: devices with on/off switch functions. On/off cluster ID (0006) of devices remains in server side. Other devices with on/off cluster ID（0006）can bind in client side. For example, Netvox device Z501. ② Binding process: press and hold binding key for 3 seconds, release and then press binding key N times to determine the Nth to bind with within 5 seconds.
- Page 6 0xff 0x0001 ApplicationVersion Unsigned 0x00 – Read only 8-bit integer 0xff 0x0002 StackVersion Unsigned 0x00 – Read only 8-bit integer 0xff 0x0003 HWVersion Unsigned 0x00 – Read only 8-bit integer 0xff 0x0004 ManufacturerName Character 0 – 32 Read only netvox...
- Page 7 string bytes 0x0005 ModelIdentifier Character 0 – 32 Read only Z802E0R string bytes 0x0006 DateCode Character 0 – 16 Read only string bytes 0x0007 PowerSource 8-bit 0x00 – Read only 0x01 Enumeration 0xff 0x0010 LocationDescription Character 0 – 16 Read/write --------- string bytes...
