PHYWE 09057-51 Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D-37079 Göttingen
Phone +49 (0) 551 604-0
Fax +49 (0) 551 604-107
E-mail info@phywe.de
Operating instructions
The unit complies with
the corresponding EC
guidelines.
CONTENTS
1

SAFETY PRECAUTIONS

2 Purpose And Characteristics
3 Functional And Operating Elements
4 Notes On Operation
5 Handling
6 Technical Specifications
7 Parts Supplied
8 Accessories
9 Notes On The Guarantee
10 WASTE DISPOSAL
11 APPENDIX
www.phywe.com, © All rights reserved

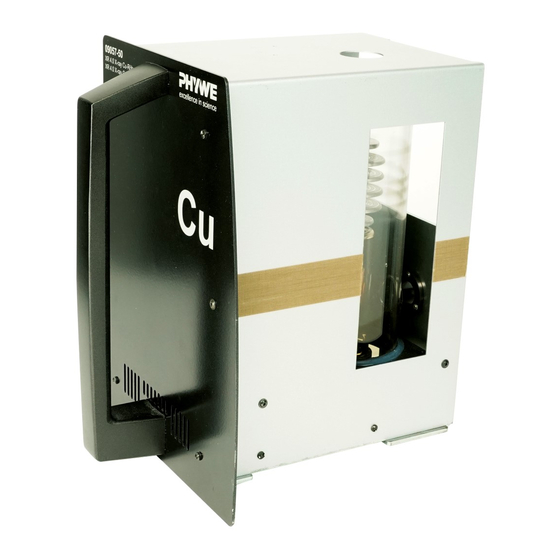

XR 4.0 X-ray Plug-in with copper/molybdenum/iron/tungsten
Fig: 09057-51, 09057-61, 09057-71, 09057-81
X-ray tubes
1 SAFETY PRECAUTIONS
Carefully read these operating instructions completely
•
before operating this instrument. This is necessary to
avoid damage as well as for user-safety.
Only use the instrument for the purpose for which it was
•
designed.
Only use the instrument in dry rooms in which there is no
•
risk of explosion.
Never cover up the vent slots of the experimental set-up.
•
Do not open up the instrument.
•
Do not connect other instruments to the unit than those
•
intended for it.
Take care that no liquid penetrates in through the hous-
•
ing openings.
Switch the unit off after usage, as it is not designed for
•
permanent operation. The maximum recommended daily
operating time is 10 hours. Exceeding this does not rep-
resent a safety risk but can negatively influence the ser-
vice life of X-ray tubes.
Take care when drawing out a tube insert that has been
•
in operation as internal parts of it could be very hot.
Handle with Care
•
09057-51
09057-61
09057-71
09057-81
1
09057-51 / 0414
