USER MANUAL
1-phase
3,7 kW and 7,4 kW
PC03T and PC04T

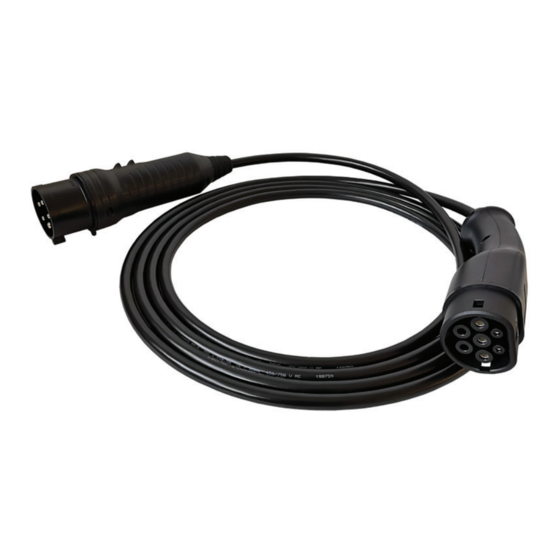

3,7 kW and 7,4 kW 1-phase METRON EV portable
chargers PC03T and PC04T are designed to charge
TESLA electric vehicles equipped with Type 2
charging sockets (European standard), from 1-phase
16A/32A sockets (or any other 1 or 3 phase outlets by
using appropriate adapter). PC03T and PC04T feature
integrated REMOTE CHARGE PORT OPENER & PLUG
UNLOCKER that works with all TESLA brand cars.
GET STARTED
First plug the portable charger in the wall outlet.
Immediately blue signal LED starts blinking: number
of blinks indicates saved power setting (see the next
page). Afterwards, LED glows constantly till AC
power is present, indicating standby/ready status.
Next, press the "3-function" button to remotely open
TESLA charge port and insert PC03T/PC04T Type 2
plug into the vehicle Type 2 charging socket.
www.eauto.si
PC03T & PC04T PORTABLE CHARGERS
for TESLA electric vehicles
»BOXLESS« portable
charger design
It also offers possibility, to set desired charging
current/power with a simple button press. Where's
the heavy in-line "bulky box"? It doesn't exist,
miniaturized portable charger electronics is placed
inside METRON Type 2 charging plug itself! This
makes METRON portable chargers PC03T and PC04T
lighter, easier to install/connect and easier to store in a
carrier case.
Blue LED starts blinking slowly, which means the
vehicle is charging. When your electric vehicle is fully
charged the blue LED glows constantly. To unplug
PC03T/PC04T press and hold the "3-function" button
for a second. The TESLA car will unlock the plug (only
if car is unlocked/owner nearby!) and you can unplug
PC03T/PC04T without touching the smart phone or
central screen.
1
info@eauto.si
+386 51 320 538
INTEGRATED REMOTE
CHARGE PORT OPENER &
PLUG UNLOCKER
Advertisement
Related Manuals for METRON PC03T
Summary of Contents for METRON PC03T
- Page 1 3,7 kW and 7,4 kW charger design PLUG UNLOCKER PC03T and PC04T 3,7 kW and 7,4 kW 1-phase METRON EV portable It also offers possibility, to set desired charging chargers PC03T and PC04T are designed to charge current/power with a simple button press. Where’s the heavy in-line “bulky box”? It doesn’t exist,...
- Page 2 To unplug PC03T/PC04T while still charging or when charging completed press and hold the “3 function” button for a second. The car will unlock the plug (only if car is unlocked/owner nearby!) and then you can unplug PC03T/PC04T.
- Page 3 RCD will switch the circuit off very quickly, significantly reducing the risk of death or serious injury. PC04T is equipped with Metron RCD Type B device called RCDB1-132CEE which represents maximum possible level of personal protection as it protects users from AC, pulsating DC, pure DC and also high frequency AC leakage currents.
- Page 4 LIMITED WARRANTY METRON warrants its product to the original consumer purchaser that it will repair, or replace, any product that is determined to be defective for the following terms: Two (2) years from date of purchase on all components.
