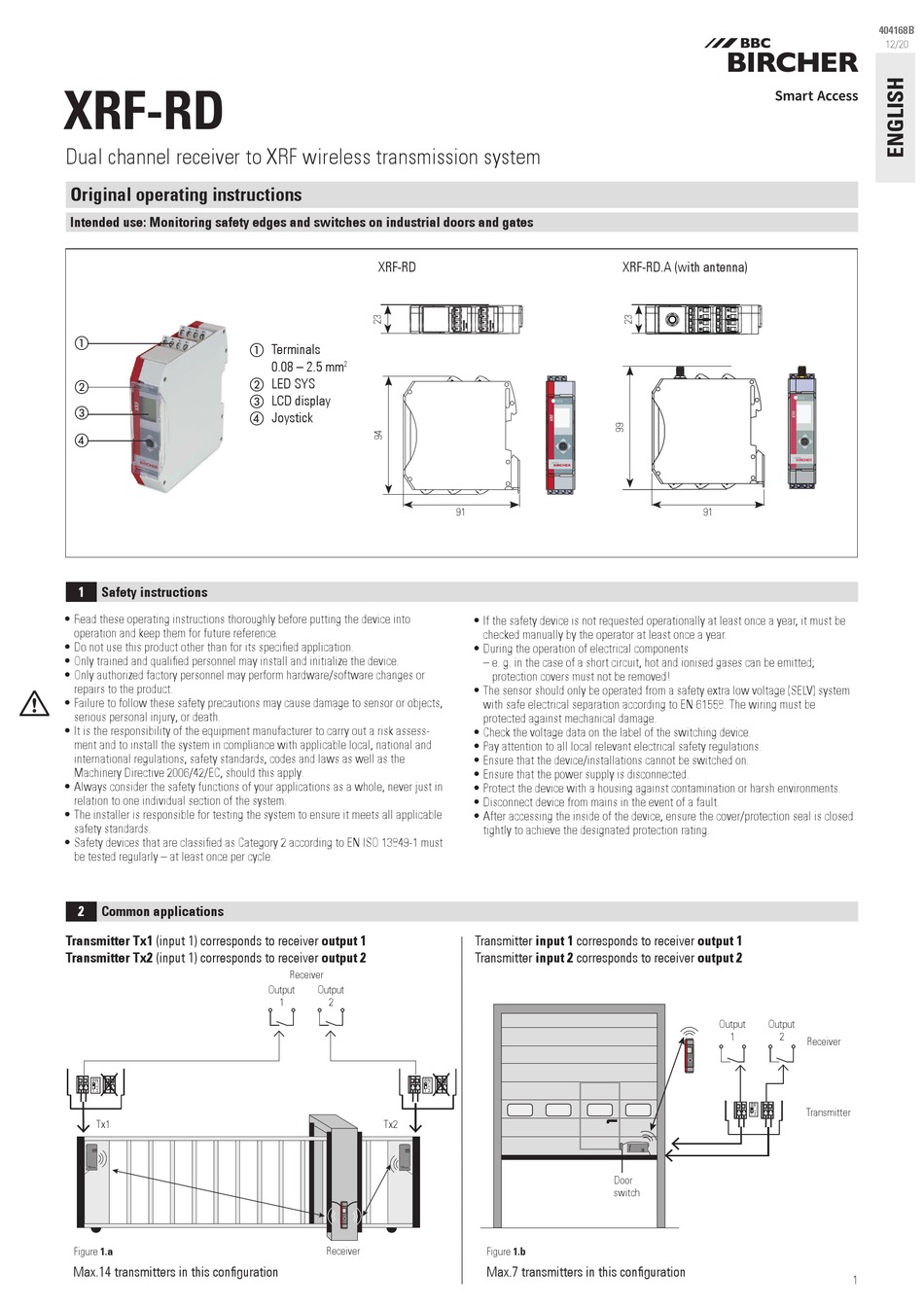

XRF-RD
Dual channel receiver to XRF wireless transmission system
Original operating instructions
Intended use: Monitoring safety edges and switches on industrial doors and gates
1

Safety instructions

• Read these operating instructions thoroughly before putting the device into
operation and keep them for future reference.
• Do not use this product other than for its specified application.
• Only trained and qualified personnel may install and initialize the device.
• Only authorized factory personnel may perform hardware/software changes or
repairs to the product.
• Failure to follow these safety precautions may cause damage to sensor or objects,
serious personal injury, or death.
• It is the responsibility of the equipment manufacturer to carry out a risk assess-
ment and to install the system in compliance with applicable local, national and
international regulations, safety standards, codes and laws as well as the
Machinery Directive 2006/42/EC, should this apply.
• Always consider the safety functions of your applications as a whole, never just in
relation to one individual section of the system.
• The installer is responsible for testing the system to ensure it meets all applicable
safety standards.
• Safety devices that are classified as Category 2 according to EN ISO 13849-1 must
be tested regularly – at least once per cycle.
2

Common applications

2
Transmitter Tx1 (input 1) corresponds to receiver output 1
Transmitter Tx2 (input 1) corresponds to receiver output 2
ON
1 2
Tx1
Figure 1.a
Max.14 transmitters in this configuration
XRF-RD
 Terminals
0.08 – 2.5 mm
2
 LED SYS
 LCD display
 Joystick
Output
Output
1
2
Tx2
Receiver
91
• If the safety device is not requested operationally at least once a year, it must be
checked manually by the operator at least once a year.
• During the operation of electrical components
– e. g. in the case of a short circuit, hot and ionised gases can be emitted;
protection covers must not be removed!
• The sensor should only be operated from a safety extra low voltage (SELV) system
with safe electrical separation according to EN 61558. The wiring must be
protected against mechanical damage.
• Check the voltage data on the label of the switching device.
• Pay attention to all local relevant electrical safety regulations.
• Ensure that the device/installations cannot be switched on.
• Ensure that the power supply is disconnected.
• Protect the device with a housing against contamination or harsh environments.
• Disconnect device from mains in the event of a fault.
• After accessing the inside of the device, ensure the cover/protection seal is closed
tightly to achieve the designated protection rating.
Transmitter input 1 corresponds to receiver output 1
Transmitter input 2 corresponds to receiver output 2
ON
1 2
Figure 1.b
Max.7 transmitters in this configuration
XRF-RD.A (with antenna)
91
Output
Output
1
2
ON
1 2
Door
switch
404168B
12/20
Receiver
Transmitter
1
