Bircher RFGate 2.2.W2.F.A Translation Of The Original Operating Instructions

RFGate 2.2.W2.F.A

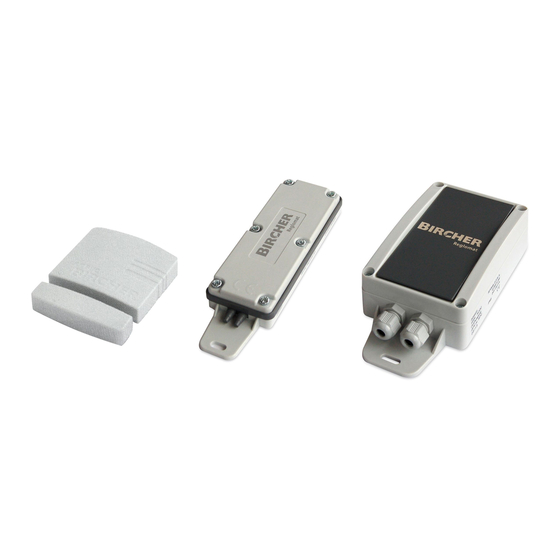

Wireless signal transmission system for safety edges, two channels
Translation of the original operating instructions

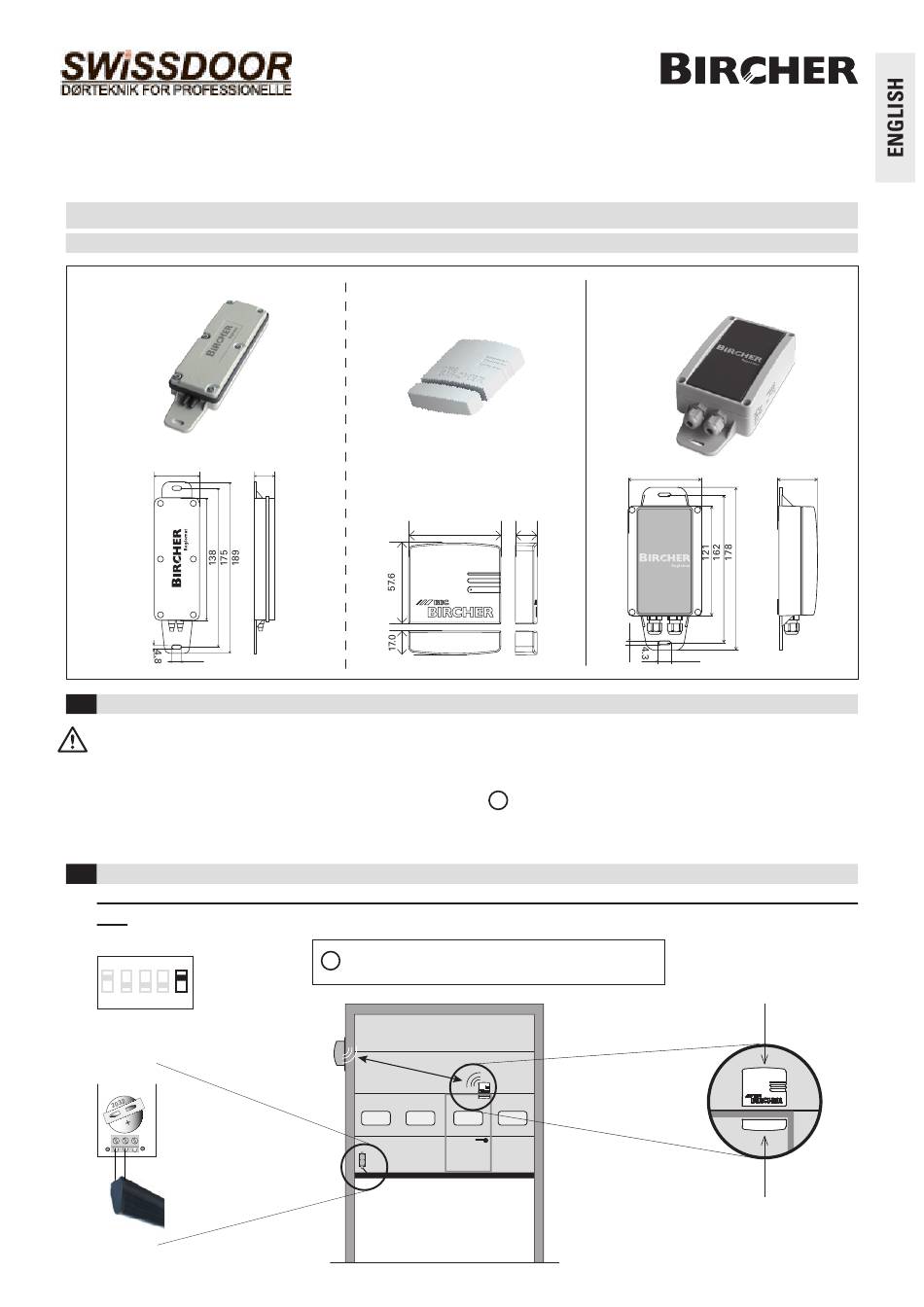

General
Transmitter 1
50.8
10.8
1 Safety instructions
Warning: Switch off the operating voltage before working on the system.
Only trained, qualified personnel may perform installation and startup.
The unit may only be opened and repaired by Bircher Reglomat employ-
ees. The switching unit may only be used to protect against dangers on
crushing and shearing points and on automatic industrial doors (intended
use). National and international regulations on industrial door safety must
be complied with. Always consider the safety functions of your applica-
2 Common application
2.1 Industrial door with wicket door
Receiver
ON
1 2 3 4 5
DIP switch 5 ON
Transmitter 1
Safety edges
8.2 kΩ
Transmitter 2
23
Drilling template enclosed
Transmitter 1 input 1 corresponds to receiver output 1
i
Transmitter 2 corresponds to receiver output 2
65.7 15.5
tion as a whole, never just in relation to one individual section of the
system. A risk assessment in advance is mandatory. The installer is re-
sponsible for installing the industrial door system correctly.
i
It is recommended to change the batteries every year.
Receiver
80
14
Transmitter 2
Magnet
349284D
10/17
45
1
