Amkus AMK-30CRT Series Manual
  1. Manuals
  2. Brands
  3. Amkus Manuals
  4. Spreader
  5. AMK-30CRT Series
  6. Manual

Amkus AMK-30CRT Series Manual

Hide thumbs Also See for AMK-30CRT Series:
Table of Contents

Advertisement

Quick Links

Understand manual before use. Operating AMKUS Rescue Systems without understanding
DANGER
the manual, receiving proper training, and using appropriate personal protective equipment is
a misuse of AMKUS equipment. This manual does not fully address safety. Additional safety
information is published in AMKUS Safety Manual LAA-001. Obtain safety information at
amkus.com/resources/documentation

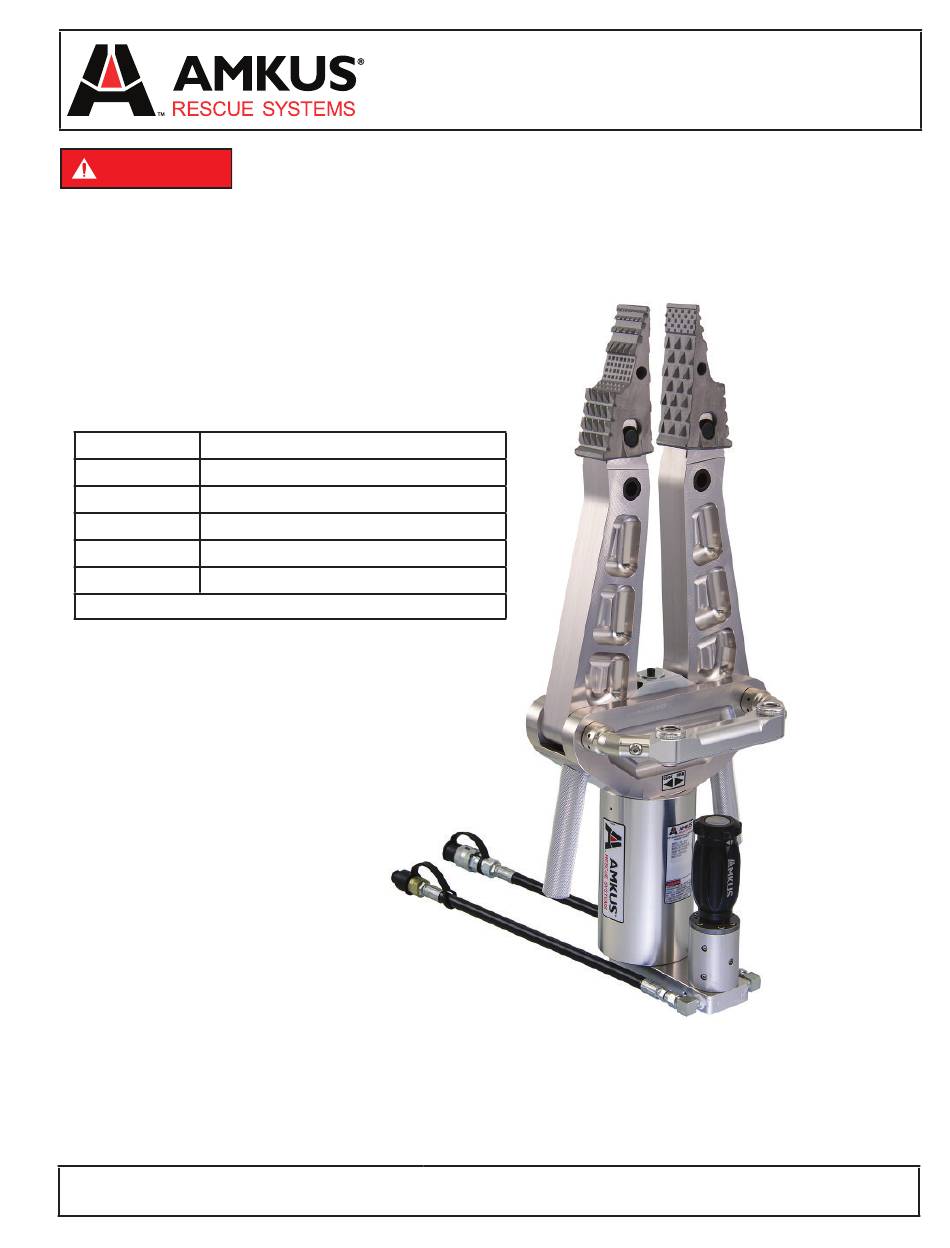

AMK-30CRT
SPREADER STD CPL
AMK-30CRT-L
SPREADER STD CPL - LIGHTED HANDLE
AMK-30CRTM
SPREADER MONO CPL
AMK-30CRTM-L
SPREADER MONO CPL - LIGHTED HANDLE
AMK-30CX*
SPREADER STD CPL
AMK-30CXM*
SPREADER MONO CPL
AMK-30CX models do not have removable tips
AMKUS RESCUE SYSTEMS
amkus.com
©Copyright AMKUS Rescue Systems, Inc. 2010 - 2019
MANUAL: AMK-30CRT
AMK-30CX SPREADER

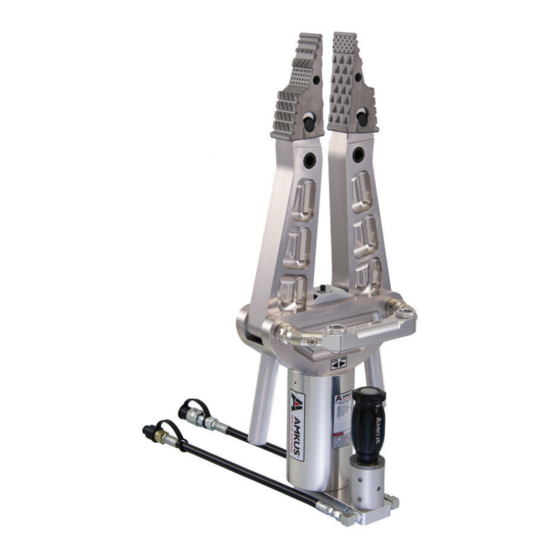

AMK-30CRT shown with optional lighted handle
4201 Montdale Drive, Valparaiso, IN 46383-4098 USA
800-592-6587 • 219-548-5000 • Fax 219-476-1669
* This tool has been discontinued
LAS-002 August 19, 2019 Rev03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMK-30CRT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Amkus AMK-30CRT Series

Summary of Contents for Amkus AMK-30CRT Series

  • Page 1 DANGER the manual, receiving proper training, and using appropriate personal protective equipment is a misuse of AMKUS equipment. This manual does not fully address safety. Additional safety information is published in AMKUS Safety Manual LAA-001. Obtain safety information at amkus.com/resources/documentation...

  • Page 2: Table Of Contents

    6. Failure to follow these guidelines may result in death, burns or other severe injury. Fire and Emergency Manufacturers and Service Association FEMSA P.O. Box 147, Lynnfi eld, MA 01940 • www.FEMSA.org ©Copyright AMKUS Rescue Systems, Inc. 2010 - 2019 LAS-002 August 19, 2019 Rev03...
  • Page 3 This manual does NOT address operation or servicing of AMKUS Rescue Systems. Only competent rescue tool repair technicians are quali ed to repair AMKUS equipment. This manual should be available to all personnel involved with AMKUS equipment. AMKUS RESCUE SYSTEMS 4201 Montdale Drive, Valparaiso, IN 46383-4098 USA 800-592-6587 •...

  • Page 4: Meaning Of Safety Words

    Fluid Type AMKUS MV-1 Mineral Based Hydraulic Fluid (for equipment stored and operated in environments below freezing, use AMKUS MV-0 Mineral Based Hydraulic Fluid) Safety Data Sheet (SDS) for AMKUS MV1 Hydraulic Fluid is available at AMKUS.com and CHEMTREC.com 3.0 PROTECTIVE CLOTHING It is the responsibility of the user to insure that appropriate protective clothing and equipment are used to provide protection from those hazards to which personnel are exposed or could be exposed while working with this product.

  • Page 5: Part Identification

    5.1 HANDLE LIGHTS OPTIONAL AMKUS dual handle lights operate at three levels of intensity. To operate these lights, press the button located behind each light. The lights can be powered OFF by scrolling through each setting to OFF, or by a single button press from a setting that’s been powered ON for over 5 seconds.
  • Page 6 OPEN: counter clockwise rotation opens the tool Figure 5.2 Verify operation of control valve by checking to see if it returns automatically to the neutral position. ©Copyright AMKUS Rescue Systems, Inc. 2010 - 2019 LAS-002 August 19, 2019 Rev03...

  • Page 7: Operation

    TIPS MAY SLIP CORRECT INCORRECT INCREASE GAP AND STARTING POSITION STARTING POSITION REPOSITION TIPS Figure 6.1b See 6.2B for exchanging spreader tips ©Copyright AMKUS Rescue Systems, Inc. 2010 - 2019 LAS-002 August 19, 2019 Rev03...
  • Page 8 • Activate the control valve to close the arms and draw the load Figure 6.3a Chain rating; 3/8” grade 70 Transport chain, working load limit 6600 lbs (2994 kg) RELEASE LOCK K-CHAIN24-30 Figure 6.3b Figure 6.3c ©Copyright AMKUS Rescue Systems, Inc. 2010 - 2019 LAS-002 August 19, 2019 Rev03...

  • Page 9: Safety Guards

    Stay clear of the path of travel. Do not operate without guards. Avoid unnecessary risk. (For examples, see LAA-001 Safety Manual For AMKUS Rescue Tools) The spreader arms have a cover over the rack. The cover is secured with a screw and washer which can be removed to perform maintenance.

  • Page 10: Routine Maintenance

    Spreader arms, racks, and pins are lubricated with white lithium grease. Annual re-lubrication is recommended for average service conditions. More frequent lubrication may be required for severe or frequent usage conditions. Contact an Authorized AMKUS dealer for annual maintenance and warranty needs.

  • Page 11: Set Up Procedure

    fl uid in AMKUS equipment may cause operational problems, equipment failure, or denial of warranty claims. Normally, AMKUS equipment is prepared and serviced by your dealer prior to delivery. If, however, you have decided to place the equipment into service yourself, please review the following instructions carefully.

  • Page 12: Troubleshooting Guide

    12.0 TROUBLE SHOOTING GUIDE Any problem not resolved by these suggestions may require you to contact your local dealer or AMKUS Rescue Systems for further guidance. PROBLEM SOLUTION Arms do not move Check to see that hoses are properly connected.
