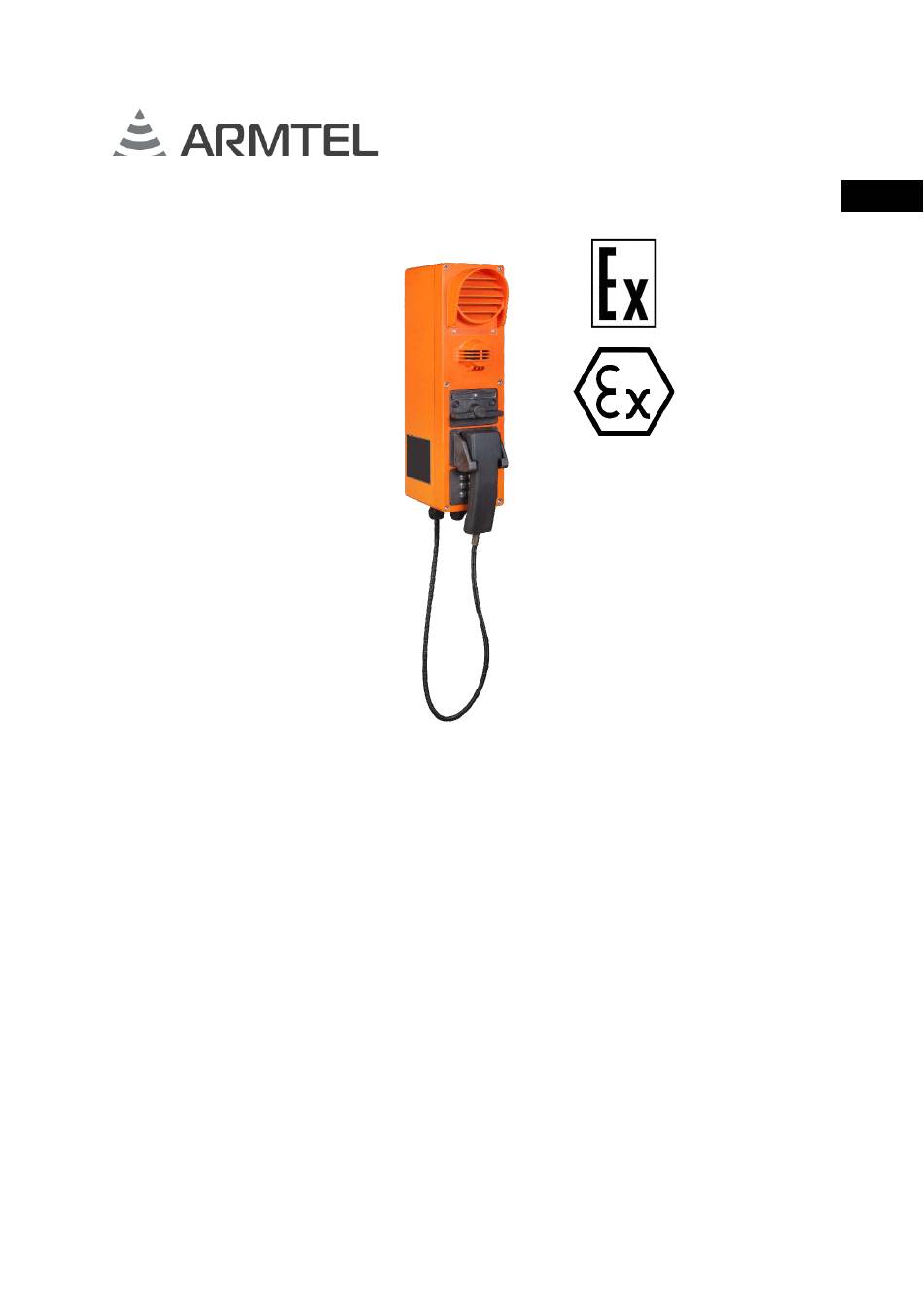

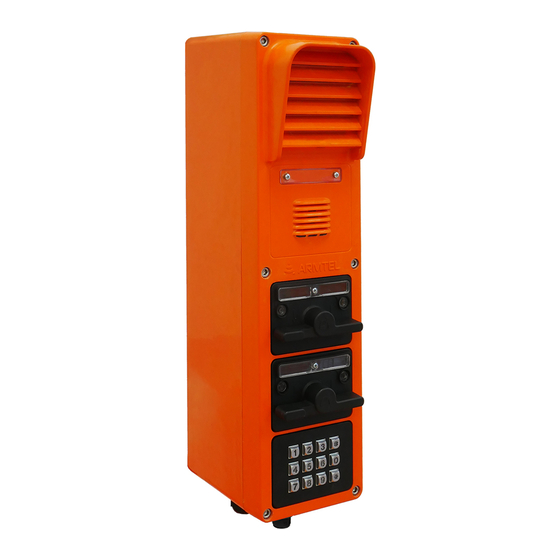

- Page 1 Explosion-proof Call Station DWEx-IP2 RMLT.465311.007UM User Manual Document version 7 26.30.11.190 26.30.11.190 Версия 5 2020 2020...
- Page 2 © Armtel info@armtel.com...
-
Page 3: Eng Introduction
INTRODUCTION This User Manual applies to various versions of the Explosion-proof Call Station DWEx-IP2 RMLT.465311.007 manufactured by Armtel LLC, and is intended to familiarize the User with the device and the procedure for its operation at the installation site. Explosion-proof Call Station DWEx-IP2 is designed for use in distributed loudspeaking operational communication and paging systems, in communication systems equipped with the RMLT.465275.012 ARMTELICS Hardware and Software Package and IPN systems... - Page 4 User Manual. ATTENTION! In connection with systematic work to improve the design and manufacturing technology, it is possible some discrepancy between the description and the supplied product, which does not affect its operation or maintenance. page 2/60 armtel.com © Armtel info@armtel.com...
-
Page 5: Safety Provisions
− before connecting the product to the power supply, make sure the power and communication cables are properly insulated; − protect power and communication cables from damage. The safety provisions for specific operations described in this manual are marked with: armtel.com page 3/60 info@armtel.com © Armtel... -
Page 6: Table Of Contents
2.2 Ensuring explosion protection during operation ..................36 2.3 Safety precautions ..............................36 2.4 Preparation for use ............................... 37 2.5 Installation, connection and dismantling ..................... 38 2.5.1 Ensuring explosion protection during mounting ................38 page 4/60 armtel.com © Armtel info@armtel.com... - Page 7 5 STORAGE .................................... 49 6 TRANSPORTATION ................................. 49 7 DISPOSAL ................................... 49 APPENDIX A (reference) External appearance of DWEx-IP2 versions ............50 APPENDIX B (reference) PoE function in DWEx-IP2 ..................53 APPENDIX C (reference) Connection ........................55 armtel.com page 5/60 info@armtel.com © Armtel...
-
Page 8: Description And Operation
DWEx-IP2 is the subscriber equipment of a wired public address system and is designed for use in distributed and centralized (based on the dedicated SIP server manufactured by Armtel LLC) public address systems in industrial facilities and on transportation. According to explosion protection labelling «1Ex d e ib IIC T4 Gb» and «Ex tb IIIC T 135°C Db»... - Page 9 RMLT.465311.007-05.02 24 connections with ADSL module 8,95 24 connections with ADSL module and RMLT.465311.007-05.03 9,40 amplifier 25 W RMLT.465311.007-05.04 24 connections with additional Ethernet port 8,80 24 connections with additional Ethernet port and RMLT.465311.007-05.05 9,40 amplifier 25 W armtel.com page 7/60 info@armtel.com © Armtel...
- Page 10 With dial pad, handset, ADSL module and with RMLT.465311.007-08.03 8,90 amplifier 25 W With dial pad, handset and with additional RMLT.465311.007-08.04 8,15 Ethernet port With dial pad, handset, with additional Ethernet RMLT.465311.007-08.05 8,75 port and with amplifier 25 W page 8/60 armtel.com © Armtel info@armtel.com...
- Page 11 2 connections with dial pad, ADSL module and RMLT.465311.007-12.03 8,90 amplifier 25 W 2 connections with dial pad and additional RMLT.465311.007-12.04 8,15 Ethernet port 2 connections with dial pad, additional Ethernet RMLT.465311.007-12.05 8,75 port and amplifier 25 W armtel.com page 9/60 info@armtel.com © Armtel...
- Page 12 10 connections with dial pad, additional Ethernet RMLT.465311.007-15.05 8,85 port and with amplifier 25 W RMLT.465311.007-16 16 connections with dial pad 8,20 10 connections with dial pad and with RMLT.465311.007-16.01 8,80 amplifier 25 W page 10/60 armtel.com © Armtel info@armtel.com...
- Page 13 DWEx-IP2 housing and handset (in corresponding versions) are made of special-purpose fiber-glass reinforced polyester resin. This UF-resistant and highly conductive material ensure antistatic properties of the components which are recommended for use in explosion-proof equipment armtel.com page 11/60 info@armtel.com © Armtel...
- Page 14 Within the digital intercom system, the DWEx-IP2 provides the following functions: − Armtel-IP and SIP protocol support; − individual simplex communication via SIP and Armtel-IP protocols; − half-duplex (manual control) communication via SIP protocol; − indication of busy call, incoming and outgoing calls, unanswered call notification on direct buttons;...
- Page 15 (lamp-type signaling device). Configuration of the DWEx-IP2 shall be carried out using the personal computer of the IPN network administrator on which IPN2 RU.RMLT.00041-01 IPN Config Tool software configuration application is installed. armtel.com page 13/60 info@armtel.com © Armtel...
-
Page 16: Specifications (Properties)
Maximum electric power of the integrated loudspeaker amplifier, 0,75 no less than, W Number of programmed direct connections/functions up to 24 ADSL, ADSL2, ADSL2+ ITU-T G.992.1...992.5 Communication interfaces IEEE 802.3u (100BaseT), IEEE 802.3i (10BaseT) Communication protocols SIP, Armtel-IP, SNMP page 14/60 armtel.com © Armtel info@armtel.com... - Page 17 * Voltage − DC. Versions with amplifier 25 W are powered via a separate 48 V line for amplifier 25 W. ** Starting VDC: 41 V. *** Only when using SIP codec G.722.1 or Armtel-IP. ATTENTION! WHEN CONNECTED TO POWER AND COMMUNICATIONS THE NECESSARY STRICTLY FOLLOW THE INSTRUCTIONS OF THE OPERATION...
-
Page 18: Operations Conditions
Electric protection class as per GOST IEC 61140-2012: II. The sign “X”, which in ATEX certificate number, is indicates that this equipment of protection system is subject to special conditions for save use: ambient temperature from -40 °С to +55 °С − page 16/60 armtel.com © Armtel info@armtel.com... -
Page 19: Structure And Operation
DWEx-IP board for further processing thereof and transmission to the IPN system. armtel.com page 17/60 info@armtel.com © Armtel... - Page 20 − 48 V external power supply; − ADSL interface line; − external loudspeaker (to the port of amplifier 25 W); − handset in versions RMLT.465311.007-06…-08.05; − external actuating device of lamp type (to contacts of the integrated relay). page 18/60 armtel.com © Armtel info@armtel.com...
-
Page 21: Dwex-Ip2 Design
(the earthing cable is not included into the device supply package). In versions with the handset, a special Ex-cable gland (16) is used to enter flexible metal tubing of the handset. armtel.com page 19/60 info@armtel.com © Armtel... - Page 22 1.1.5.3 Loudspeaker (2), microphone (7), and mechanisms of two-way toggle modules/buttons/keypad module/ bracket with reed relay are located on the internal side of the cover Figure 4. These mechanisms are connected to the DW-BC board (10), see Figure 5. page 20/60 armtel.com © Armtel info@armtel.com...
- Page 23 4 – cover; 5 – captive screws; 6 – transparent cover; 7 – microphone module; 8 – sealing ring for the microphone; 9 – two-way toggle; 10 – DW-BC board; 11 – plug; 12 – sealing gasket for modules. Figure 4 – DWEx-IP2 cover with electronic components (example) armtel.com page 21/60 info@armtel.com © Armtel...
- Page 24 9 – «R15» built-in microphone sensitivity control (MIC INT) 10 – «R22» external microphone sensitivity control (MIC EXT) – not used; 12 – technological socket «XP1» for programming the board; 13 – «SW7» reset button; page 22/60 armtel.com © Armtel info@armtel.com...
- Page 25 0.14 to 1.5 mm Explosion-proof box (7) is covered with two tightly screwed covers with semicircular notches (8). In order to prevent their loosening, the covers are additionally fastened with armtel.com page 23/60 info@armtel.com © Armtel...
- Page 26 25 W DW-MB01-IP2 board can be connected with the amplifier to one 48V power supply source with proper power rating. If DW-MB01-IP2 board is powered from PoE injector, amplifier 25 W shall be powered from a separate source. page 24/60 armtel.com © Armtel info@armtel.com...
-
Page 27: Scope Of Supply
Operational documentation RMLT.465311.007PP Product Passport RMLT.465311.007UM User Manual Upon request IPN2 Configuration Software. Operator RU.RMLT.00041-01 34 01 from Manual customers * Version refer to the contract for the supply. Parameters are accordance Tables 1, 2. armtel.com page 25/60 info@armtel.com © Armtel... -
Page 28: Labeling
− other information if necessary − The nameplate contains the following warning notation: ПРЕДУПРЕЖДЕНИЕ: ОТКРЫВАТЬ, ОТКЛЮЧИВ ВСЕХ СЕТЕЙ ПИТАНИЯ WARNING: DO NOT OPEN WHEN ENERGIZED The serial number is unique for each product. page 26/60 armtel.com © Armtel info@armtel.com... -
Page 29: Package
For shipment of the DWEx-IP2 from the manufacturer, consumer package contents are placed in the package place, which ensures protection from mechanical damage, direct ingress of atmospheric precipitation, dust and solar radiation during transportation. armtel.com page 27/60 info@armtel.com © Armtel... -
Page 30: Explosion Protection
GOST 31610.11-2014 (IEC 60079-11:2011) and EN 60079-11:2012. Currents and voltages in circuits are limited with the help of semiconductor components, limiting page 28/60 armtel.com © Armtel info@armtel.com... - Page 31 − ports for external and internal connections are meant for wires of the selected cross-section and ensure durable and reliable contact; − internal connections are brazed or connected via spring-loaded terminals, connecting wires are fixed in order to prevent insulation damage. armtel.com page 29/60 info@armtel.com © Armtel...
-
Page 32: Description And Operation Of Product Components
− OFF; − always on and voice messages are played simultaneously on the built-in loudspeaker and an external loudspeaker; − the amplifier is used as a calling unit (default mode). page 30/60 armtel.com © Armtel info@armtel.com... -
Page 33: Adsl Module
− LED blinks at a rate of about once in half a second during an incoming call; − LED is permanently on when the called subscriber is busy; − LED blinks fast in case of an unanswered call. armtel.com page 31/60 info@armtel.com © Armtel... -
Page 34: Handset
(alarm devices are not included into the scope of supply). The relay operation mode will be set in DWEx-IP2 configuration parameters: − he relay is always activated under the incoming call (default mode); page 32/60 armtel.com © Armtel info@armtel.com... -
Page 35: Dw-Mb01-Ip2 Main Board
− communication line interfaces – 2 Ethernet adapters 10/100, Wi-Fi IEEE 802.11 b/g/n − interfaces – 4 × I2C, 4 × SPI, 8 × UART, SD/SDIO/MMC-интерфейс; − USB- interfaces – USB 2.0 Host, USB 2.0 OTG. armtel.com page 33/60 info@armtel.com © Armtel... -
Page 36: Dw-Bc Board
DW-BC board is installed on the inner side of the DWEx-IP2 cover and is designed to switch the integrated loudspeaker, microphone, button modules/ two-way toggle and the handset with DW-МВ01-IP2 main board. The description of interfaces and operating principles of the board are given in 1.1.5.4. page 34/60 armtel.com © Armtel info@armtel.com... -
Page 37: Intended Use
2.1.5 To protect the DWEx-IP2 from overheating and maintain its performance when mounting in areas exposed to solar radiation and / or abrasive snow, it is necessary to use protector visors or tents armtel.com page 35/60 info@armtel.com © Armtel... -
Page 38: Ensuring Explosion Protection During Operation
In order to ensure fire safety, follow the following rules: − before connecting the product to the power supply, make sure the power and communication cables are properly insulated; − protect power and communication cables from damage. page 36/60 armtel.com © Armtel info@armtel.com... -
Page 39: Preparation For Use
2.4 Preparation for use Preparation of the DWEx-IP2 for use shall be carried out by the manufacturer’s representatives, or personnel trained to operate Armtel LLC products. The main preparation of the product for use is carried out during installation and connection. -
Page 40: Installation, Connection And Dismantling
2.5.1.7 Cables used for mounting shall be approved for usage in explosion hazardous zones. The method of cable routing in the explosion hazardous zone shall comply with the zone class and with the Electrical Installation Codes. page 38/60 armtel.com © Armtel info@armtel.com... - Page 41 Connection thread, Nm Cap nut, Nm М20×1,5 М25×1,5 ATTENTION! ORDER AND / OR SUPPLY PRODUCT CABLE GLANDS NOT INCLUDED IN THE BASIC CONFIGURATION, OBSERVE THE TIGHTENING TORQUE ACCORDING TO REQUIREMENTS TO DELIVER CABLE GLAND. armtel.com page 39/60 info@armtel.com © Armtel...
-
Page 42: Installation
When the power is turned on, DWEx-IP2 unit will be initialized automatically; when initialization is completed, the network connection will be tested. If the network connection is successfully established, the unit is ready for operation. page 40/60 armtel.com © Armtel info@armtel.com... - Page 43 INDICATORS WILL BE SWITCHED OFF (EXCEPT FOR LIGHTING OF THE DIAL PAD). Configure the device (see 2.6.1). Record the place and time of DWEx-IP2 installation in its Product Passport. Figure 7 – Installation of DWEx-IP2 armtel.com page 41/60 info@armtel.com © Armtel...
-
Page 44: Connection
Tables C.1-C.3. Reverse polarity protection at DWEx-IP2 input prevents damage to the device, thus, its performance will not be affected if reverse polarity voltage is supplied to contacts 7 and 8 of the terminal block. page 42/60 armtel.com © Armtel info@armtel.com... -
Page 45: Dismantling
− install the cover and fasten with screws; − disconnect the earthing cable from the earthing clamp; − unscrew the screw nails fastening the product, remove and place the product in the consumer package. armtel.com page 43/60 info@armtel.com © Armtel... -
Page 46: Operation
DWEx-IP2 returns to the initial ready-to talk state, after the outgoing connection is completed. A subscriber’s response or voice calls from other subscribers will be transmitted immediately to the DWEx-IP2 loudspeaker. page 44/60 armtel.com © Armtel info@armtel.com... - Page 47 SIP protocol. As a part of certain communication systems, the handset can be used in half-duplex or simplex communication modes. DWEx-IP2 supports two SIP (RFC 3261) telecommunication protocols and Armtel-IP protocol. Over SIP protocol, the device operates via SIP server. Calls over SIP protocol are made in both simplex and duplex modes and received in half-duplex mode.
-
Page 48: Troubleshooting
Х4 socket of DW-BC board (Figure 5) * Configuration of DWEx-IP2 connections and functions is carried out using IPN Config Tool software or a built-in WEB interface page 46/60 armtel.com © Armtel info@armtel.com... -
Page 49: Maintenance
− checking reliability of cable connection to DWEx-IP2 – cables should not be tensioned; − checking operability of DWEx-IP2 according to 3.4. Maintenance should be approximately 0,5 hour long. armtel.com page 47/60 info@armtel.com © Armtel... -
Page 50: Checking Operability
In order to check keys, switches, buttons, keypad and LED indicators, press the keys/buttons one-by-one, requesting the subscribers assigned to the keys/buttons, or check other functions to the keys/buttons. If necessary, the product configuration may be changed using the software of the IPN system administrator workstation. page 48/60 armtel.com © Armtel info@armtel.com... -
Page 51: Pepair
The product shall not be disposed of together with household waste and must be delivered to a special center for the disposal of electronic products. The operating organization shall be responsible for the disposal of the product. armtel.com page 49/60 info@armtel.com © Armtel... -
Page 52: External Appearance Of Dwex-Ip2 Versions
EXTERNAL APPEARANCE OF DWEX-IP2 VERSIONS from RMLT.465311.007 from RMLT.465311.007-01 from RMLT.465311.007-02 to RMLT.465311.007-00.05 RMLT.465311.007-01.05 RMLT.465311.007-02.05 from RMLT.465311.007-05 to from RMLT.465311.007-03 from RMLT.465311.007-04 RMLT.465311.007-03.05 RMLT.465311.007-04.05 RMLT.465311.007-05.05 Figure А.1 (beginning) – External appearance of DWEx-IP2 versions page 50/60 armtel.com © Armtel info@armtel.com... - Page 53 User Manual from RMLT.465311.007-06 to from RMLT.465311.007-07 to from RMLT.465311.007-08 to RMLT.465311.007-06.05 RMLT.465311.007-07.05 RMLT.465311.007-08.05 from RMLT.465311.007-09 to from RMLT.465311.007-10 to from RMLT.465311.007-11 to RMLT.465311.007-10.05 RMLT.465311.007-11.05 RMLT.465311.007-09.05 Figure А.1 (continuation) – External appearance of DWEx-IP2 versions armtel.com page 51/60 info@armtel.com © Armtel...
- Page 54 EXPLOSION-PROOF CALL STATION DWEX-IP2 User Manual from RMLT.465311.007-12 to from RMLT.465311.007-13 to from RMLT.465311.007-14 to RMLT.465311.007-12.05 RMLT.465311.007-13.05 RMLT.465311.007-14.05 from RMLT.465311.007-15 to from RMLT.465311.007-16 to RMLT.465311.007-15.05 RMLT.465311.007-16.05 Figure A.1 (end) – External appearance of DWEx-IP2 versions page 52/60 armtel.com © Armtel info@armtel.com...
-
Page 55: Poe Function In Dwex-Ip2
PoE injector). When using a load detection procedure in an active PoE power device (injector), supply voltage in the line will be turned on only after confirmation that the load class matches power supply capabilities. armtel.com page 53/60 info@armtel.com © Armtel... - Page 56 (rated 48 V) Source voltage range from 44 to 57 V Maximum power of PoE source 15,40 W Maximum power obtained by PoE load 12,95 W Maximum current 350 mA Maximum cable resistance 20 Ohm page 54/60 armtel.com © Armtel info@armtel.com...
-
Page 57: Connection
25 W is shown in Table C.1. External appearance and pin assignment of its DWEx-IP2 terminal block Figure C.1. Figure C.1 – External appearance and pin assignment of DWEx-IP2 terminal block for versions without additional modules and versions with amplifier 25 W armtel.com page 55/60 info@armtel.com © Armtel... - Page 58 Connection type: spring clamp Wire cross-section AWG: from 28 to 12 (external diameter from 0,3211 mm to 2,053 mm, cross- section area from 0,081 mm to 3,31 mm Peeled wire end length: from 8 to 10 mm page 56/60 armtel.com © Armtel info@armtel.com...
- Page 59 Connection type: spring clamp Wire cross-section AWG: from 28 to 12 (external diameter from 0,3211 mm to 2,053 mm, cross- section area from 0,081 mm to 3,31 mm Peeled wire end length: from 8 to 10 mm armtel.com page 57/60 info@armtel.com © Armtel...
- Page 60 DWEx-IP2 terminal block Figure C.3. Additional Main connections Ethernet port Figure C.3 – External appearance and pin assignment of DWEx-IP2 terminal block for versions with additional Ethernet port / additional Ethernet port and amplifier 25 W page 58/60 armtel.com © Armtel info@armtel.com...
- Page 61 Peeled wire end length: from 8 to 10 mm To avoid damage during transportation and operation of the DWEx-IP2, internal wiring cables are securely fixed at special points. Do not use cables of types not supposed for this purpose by the manufacturer. armtel.com page 59/60 info@armtel.com © Armtel...
- Page 62 EXPLOSION-PROOF CALL STATION DWEX-IP2 User Manual NOTES page 60/60 armtel.com © Armtel info@armtel.com...
- Page 63 © Armtel...
- Page 64 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: Russia, 192012, Saint Petersburg, Zaporozhskaya str., 12 building 1, office 1/2 TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
