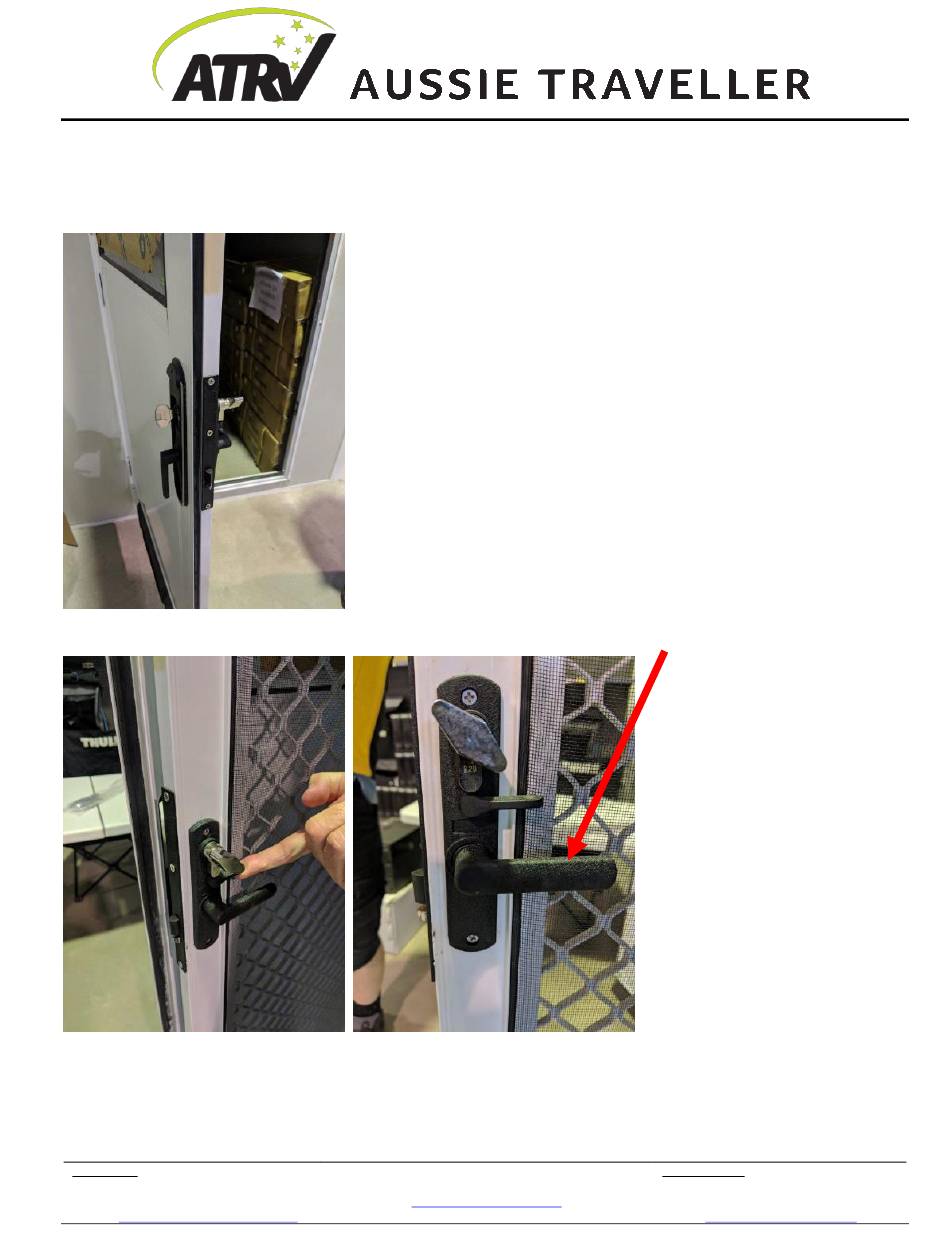

HOW TO CHANGE AN AUSSIE TRAVELLER DOOR HANDLE
Step 1 Open the door
Step 2 Separate the outer door, note the current position of inner handle
BRISBANE
11-15 Oasis Court, Clontarf, QLD 4019
Phone : 07 3284 3284 Fax : 07 3284 5969
E-mail :
enquiries@aussietraveller.com.au
Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
www.aussietraveller.com.au
MELBOURNE
235A Barry Road, Campbellfield VIC 3061
Ph: 03 9357 6565 Fx: 03 9357 6515
E-mail:
info@aussietraveller.com.au
I00129A1/10
