Separating Inner and Outer Door – Removing Barrel
Gaining access to the inner mechanism of the lock in order to separate the inner and outer
parts of the door.

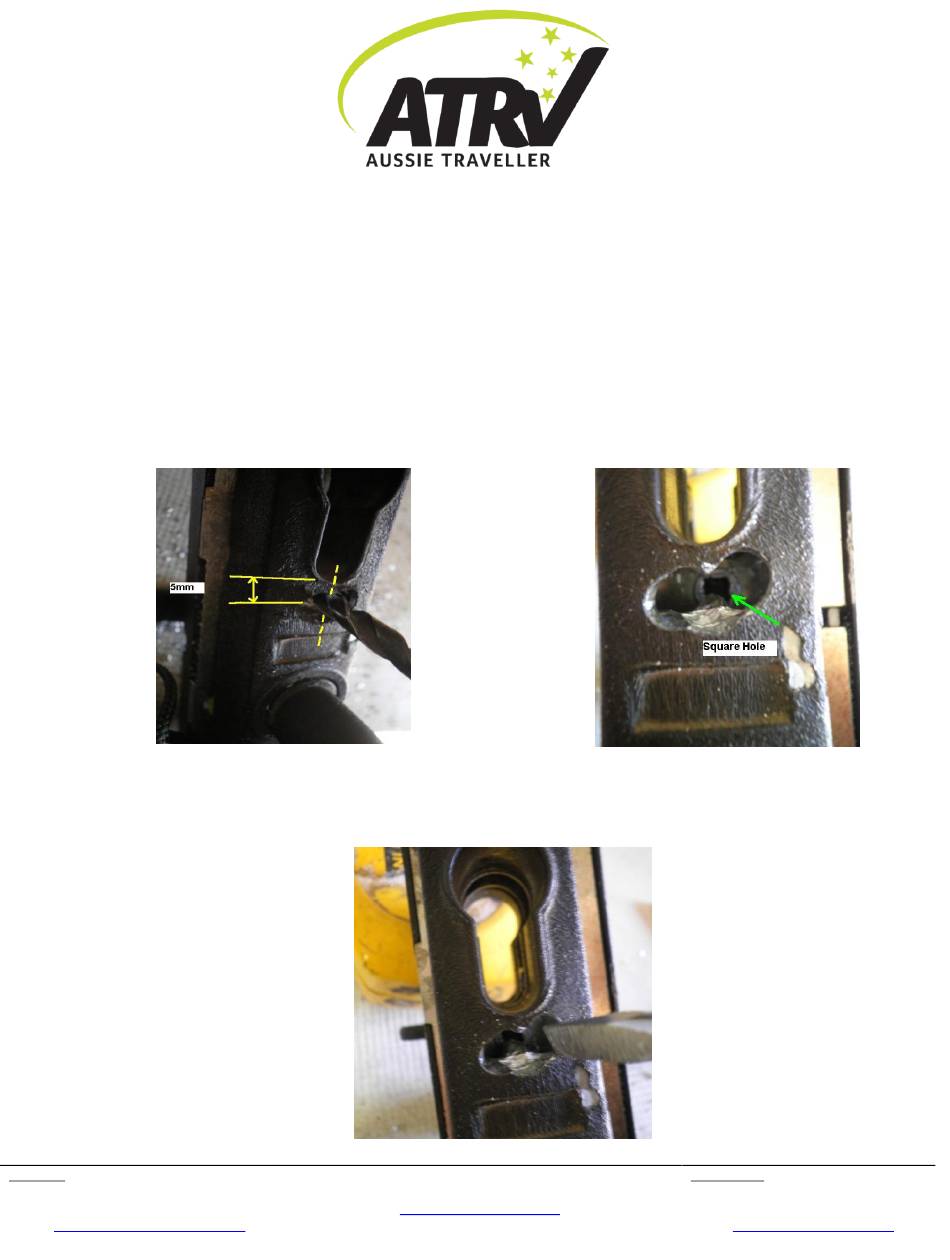

1. Using a ¼" bit, drill a hole 5mm down from barrel in line with the center of handle. Then enlarge the
hole so that you can clearly see the square-shaped hole on the lock body as shown below.
2. Insert a flat head screw driver into the square hole and turn it. This will separate inner and outer door.
Secure the outer door open.
