Summary of Contents for Amigo APH50C

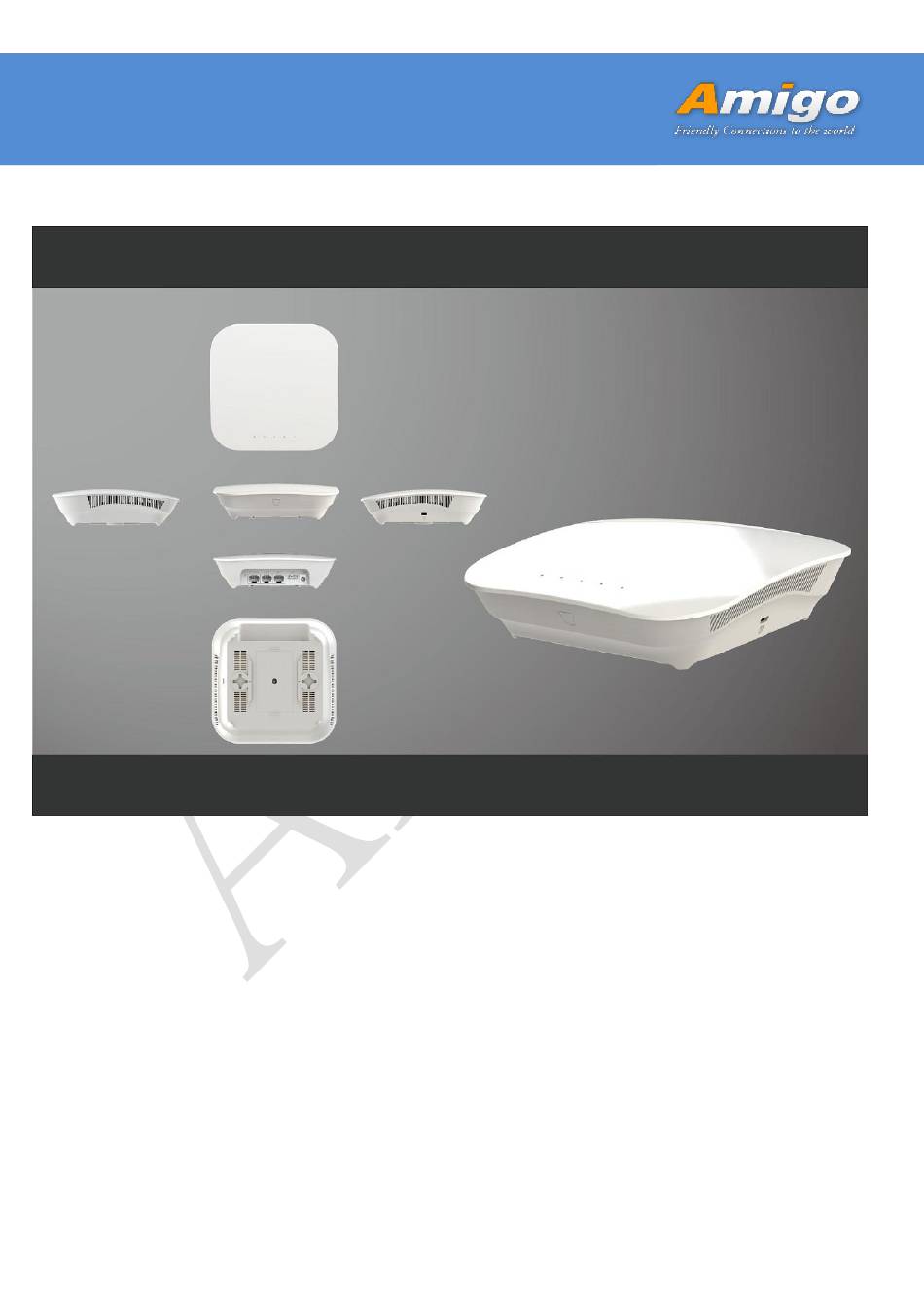

- Page 1 Indoor Access Point: APH50C/ APH51C Quick Installation Guide APH50C Internal antenna...
- Page 2 APH51C External antenna STEP 1. Package Content (1) Access Point : APH50C/ APH51C/ (2) Power Adapter (3) Wall Mounting screw set (4) Ceiling mounting bracket (9/16” and 15/16” flat T-bar included) (5) Dipole 2.4G antennas x2, Dipole 5G antennas x2(APH51C/)
- Page 3 STEP 2. Mounting Kits Installation For Wall Mount Installation For Ceiling mount Installation...
- Page 5 STEP 3. Connecting the Device for Configuration (1) Connect one end of the Ethernet cable into the LAN1 port of the Access Point and the other end to the Ethernet port on the computer. (2) Plug in power source by different ways that depends on user setup environment (A) PoE Switch (Plug in from LAN1 Port) (B) PoE Injector (Plug in from LAN1 Port)
- Page 6 STEP 5. Access Point Setup (1) Open a web browser on your computer. In the address bar of the web browser, enter 192.168.1.1 and enter. (2) A login screen will appear. The device do not have username and the password settings and can click login to access. (3) The access point user interface will appear.
- Page 8 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 9: Professional Installation Instruction
Professional installation instruction 1. Installation personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2.
