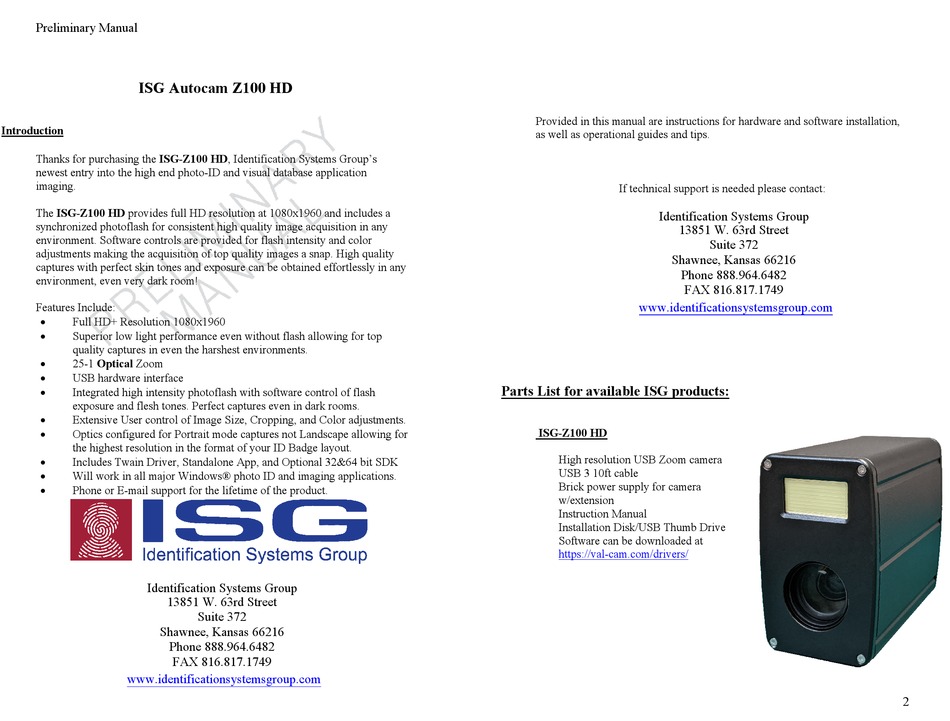

Preliminary Manual
ISG Autocam Z100 HD
Introduction
Thanks for purchasing the ISG-Z100 HD, Identification Systems Group's
newest entry into the high end photo-ID and visual database application
imaging.
The ISG-Z100 HD provides full HD resolution at 1080x1960 and includes a
synchronized photoflash for consistent high quality image acquisition in any
environment. Software controls are provided for flash intensity and color
adjustments making the acquisition of top quality images a snap. High quality
captures with perfect skin tones and exposure can be obtained effortlessly in any
environment, even very dark room!
Features Include:
Full HD+ Resolution 1080x1960
Superior low light performance even without flash allowing for top
quality captures in even the harshest environments.
25-1 Optical Zoom
USB hardware interface
Integrated high intensity photoflash with software control of flash
exposure and flesh tones. Perfect captures even in dark rooms.
Extensive User control of Image Size, Cropping, and Color adjustments.
Optics configured for Portrait mode captures not Landscape allowing for
the highest resolution in the format of your ID Badge layout.
Includes Twain Driver, Standalone App, and Optional 32&64 bit SDK
Will work in all major Windows® photo ID and imaging applications.
Phone or E-mail support for the lifetime of the product.
Identification Systems Group
13851 W. 63rd Street
Shawnee, Kansas 66216
Phone 888.964.6482
FAX 816.817.1749
www.identificationsystemsgroup.com
Suite 372
Provided in this manual are instructions for hardware and software installation,
as well as operational guides and tips.
If technical support is needed please contact:
Identification Systems Group
13851 W. 63rd Street
Shawnee, Kansas 66216
www.identificationsystemsgroup.com
Parts List for available ISG products:
ISG-Z100 HD
High resolution USB Zoom camera
USB 3 10ft cable
Brick power supply for camera
w/extension
Instruction Manual
Installation Disk/USB Thumb Drive
Software can be downloaded at
https://val-cam.com/drivers/
Suite 372
Phone 888.964.6482
FAX 816.817.1749
2
