Included Items:
?
Fingerprint reader module (includes cable with USB Type-A
connector)
?
Two screws to attach module to chassis
Note: For the D-Series touchcomputer, the software for the
field-installable peripherals is already pre-installed.
Replace the front door.
Replace the side door.
Turn on the touchcomputer.

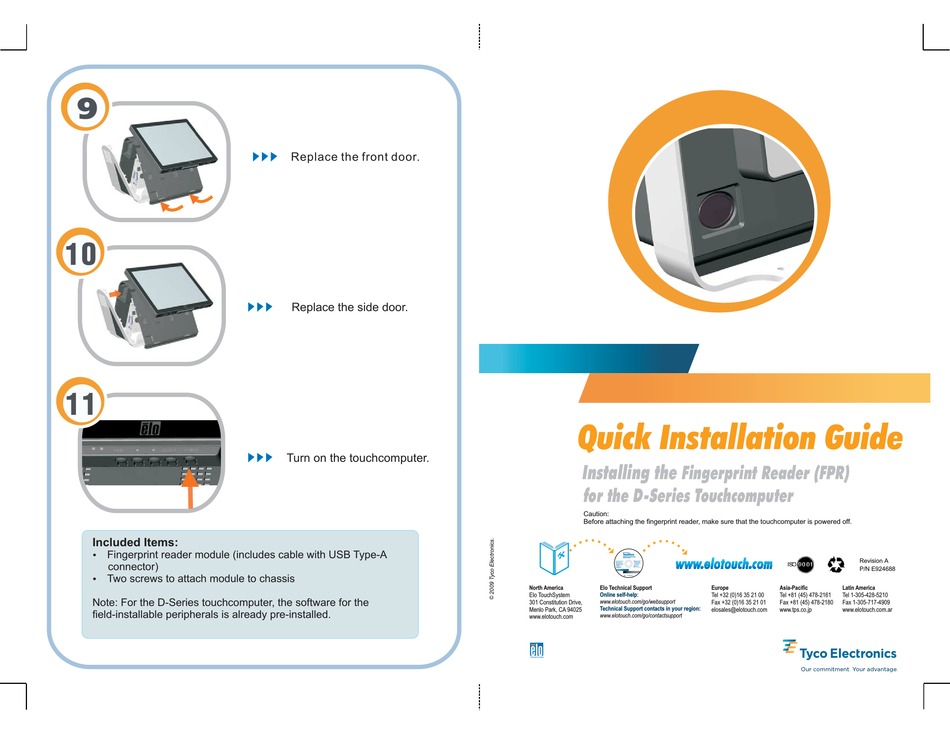

Installing the
Fingerprint Reader (FPR)
for the D-Series Touchcomputer
Caution:
Before attaching the fingerprint reader, make sure that the touchcomputer is powered off.
