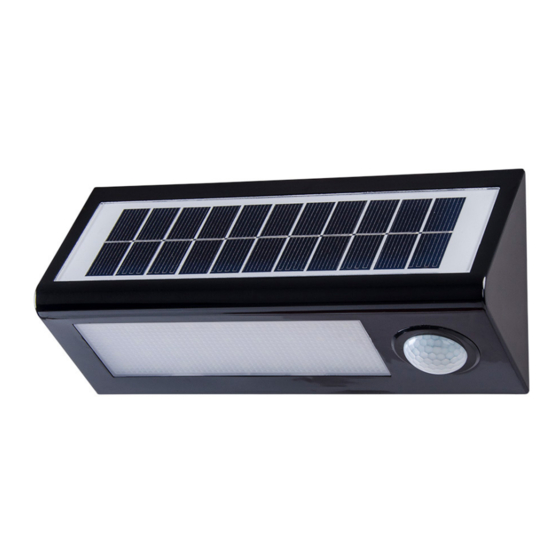

36 LED SOLAR MOTION SENSOR LIGHT
Please read these instructions carefully before use and retain for future reference.
IMPORTANT SAFETY INFORMATION
•
Avoid locations of high temperature or humidity.
•
If the light output becomes less bright or flashes, recharge the batteries.
•
Always remove the batteries if the light is not to be used for long periods.
•
Only use the recommended specification rechargeable batteries.
INSTALLATION
•
Drill two holes the wall 150mm apart horizontally in the required location with regard
to any concealed wiring or pipework, use wall plugs if required and screw in two dome
head screws leaving the heads 4mm proud of the surface.
•
It is recommended to install the light at about 2.5M or higher above ground.
•
Set the function switch to either LOW/HIGH/AUTO mode.
•
Locate the keyhole slots in the back of the light unit over the screw heads and ensure
the light is securely fixed.
PELL0013
Advertisement
Table of Contents
Related Manuals for Pro-Elec PELL0013
Summary of Contents for Pro-Elec PELL0013
- Page 1 36 LED SOLAR MOTION SENSOR LIGHT PELL0013 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • Avoid locations of high temperature or humidity. • If the light output becomes less bright or flashes, recharge the batteries.
- Page 2 OPERATION • When set to LOW and the ambient light is low it will light continuously at approx 60 lumen. No motion detection is active. • When set to HIGH and the ambient light is low it will light continuously at approx 60 lumen, but when the sensor detects movement, it will switch to high brightness of approx 320 lumen.
