Liko™ Ultra LiftPants™ Mod. 920
Sling
Instructions for Use
Lifting very heavy patients requires special techniques and
specially designed lift equipment. Liko has developed the
Ultra product series to help lift such patients in a safe and
comfortable manner.
The Liko Ultra LiftPants sling, when used in accordance with
the information for use, gives very heavy patients the chance
to practice standing and gait training without the risk of falling.
The Liko Ultra LiftPants sling aid in safe standing and gait training
for patients with poor balance and poor leg function. It is
essential that the patient is able to bear weight on their legs.
The LiftPants allow the patient to move while relieving him/
her of a greater or lesser degree of body weight.

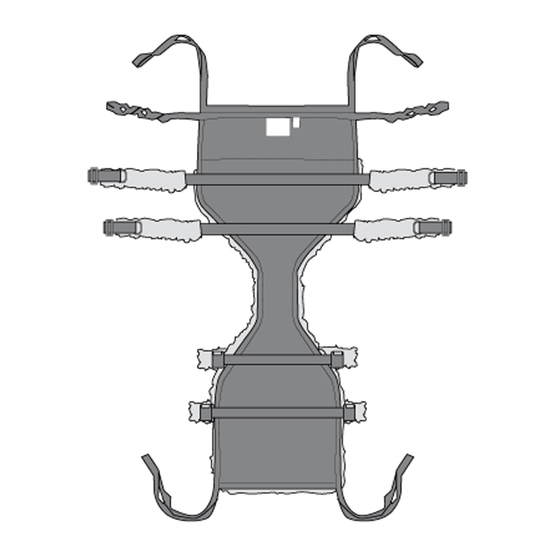

The Liko Ultra LiftPants sling are equipped with two hip straps
on either side for more even weight distribution. There are
two different sizes.
In this document, the person being lifted is referred to as the patient and the person helping them is referred to as the
caregiver.
IMPORTANT!
Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient
lift and lifting accessories before use. It is important to completely understand the contents of the instructions for use.
The equipment should only be used by trained personnel. Ensure that the lifting accessories are suitable for the lift used.
Exercise care and caution during use. As a caregiver, you are always responsible for the patient's safety. You must be aware
of the patient's ability to make it through the lifting situation. If something is unclear, contact the manufacturer or supplier.
7EN160181 Rev. 7
ENGLISH 2020
Product Description
Selecting a suitable lift
It is recommended that at least two caregivers be present when
transferring a patient.
The Liko Ultra LiftPants sling can be used along with Liko's
overhead or mobile lifts. An overhead lift can be used by the
patient for unrestricted movement within the lift's lifting area.
You can choose between:
- Liko's UltraTwin system with two lift units. The maximum load
is 500 kg (1100 lbs.), depending on which individual products
are included in the assembled lift system. The UltraTwin
system is available for both stationary installation and for
freestanding installation in the UltraTwin FreeSpan™ system.
- LikoGuard
lbs.) or LikoGuard
(800 lbs.).
- Viking
May be equipped with arm rest to give extra support during
standing- and gait training
L overhead lift for lifting up to 272 kg (600
XL overhead lift for lifting up to 363 kg
XL mobile lift for lifting up to 300 kg (660 lbs.).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra LiftPants 920 and is the answer not in the manual?

Questions and answers

Summary of Contents for Liko Ultra LiftPants 920

  • Page 1 You can choose between: The Liko Ultra LiftPants sling aid in safe standing and gait training - Liko’s UltraTwin system with two lift units. The maximum load for patients with poor balance and poor leg function. It is is 500 kg (1100 lbs.), depending on which individual products...
  • Page 2: Symbol Description

    Symbol Description These symbols can be found in this document and/or on the product. Symbol Description Warning. Used were extra care and attention is needed. Read instructions for use before use CE mark Legal manufacturer Date of manufacturing Ref number Serial Number Medical device Do not dry clean...
  • Page 3: Safety Instructions

    Contact your Hill-Rom representative for advice and information about product upgrades. Design and Quality by Liko in Sweden Liko is quality certified according to ISO 9001 and its equivalent for the medical device industry ISO 13485. Liko is also certified according to environmental standard ISO 14001.
  • Page 4: Care And Maintenance

    If the sling is used for bath or shower: After use in bath and shower situations, the sling should be placed so that it dries as soon as possible. Washing instructions: Please see the sling’s product label and the attached appendix ”Care and Maintenance of Liko Slings”. Periodic Inspection The product must be inspected at least once every 6 months.
  • Page 5: How To Attach A Sling To Different Sling Bars

    How to Attach a Sling to Different Sling Bars Sling bar Sling loops to sling bar hooks Correct SlingGuard ™ Universal SlingGuard ™ Twin Universal Twin Cross-bar Wrong! 7EN160181 Rev. 7 • 2020 www.hillrom.com...
  • Page 6: How To Attach An Ultra Liftpants Sling To A Sling Bar With 4 Hooks (Twin Bars And Cross Bars)

    Applying the Ultra LiftPants Pull the front section of the Feed the front suspension straps The initial position when using the Liko LiftPants sling up between the through the loop straps using the Ultra LiftPants sling are the sitting position.
  • Page 7 Alternative application of the Liko Ultra LiftPants sling: The patient can be lifted in a normal sling and then lowered onto the LiftPants sling placed on a chair or at the edge of the bed. The sling used can be e.g. the Liko UltraSling Mod. 06, Liko Original HighBack Sling Mod.
  • Page 8 Adjusting the Loop Straps The loop straps should be neither too A smaller person can have the A larger person can have the loose nor too tight around the upper suspension straps fed through an suspension straps fed through an body.
  • Page 9: Choosing The Right Size

    Choosing the Right Size Choosing the right size is important for a safe and secure lift and for reaching the required lift height. Liko Ultra LiftPants sling should reach above waist height but not so high that the loop straps cut into the armpits. Refer to the measurement table below for guidance.
  • Page 10: Overview Liko™ Ultra Liftpants™ Sling Mod. 920

    Ultra LiftPants, XXXL Explanation: 1 = Recommended, 2 = May work, 3 = Not advised, 4 = Inappropriate Other Combinations Combinations of accessories/products other than those recommended by Liko can result in risks for the safety of the patient. www.hillrom.com Liko AB Nedre vägen 100...
