DISASSEMBLY

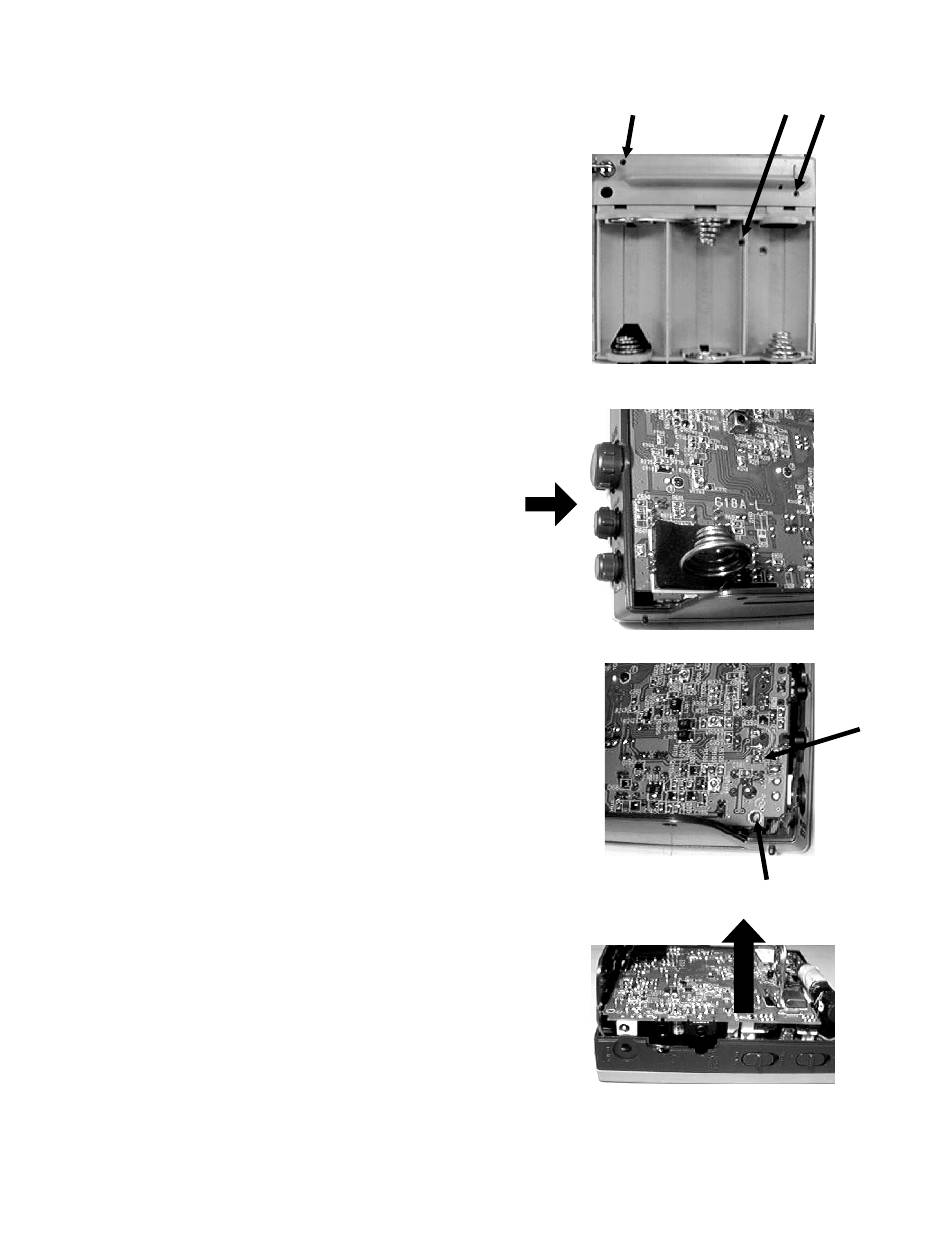

1. Remove the battery case.
2. Remove the three screws and the lower case.
3. Remove the three knobs.
4. Remove the screw and resolder the two wires for the speaker.
5. Remove the PCB ass'y.
