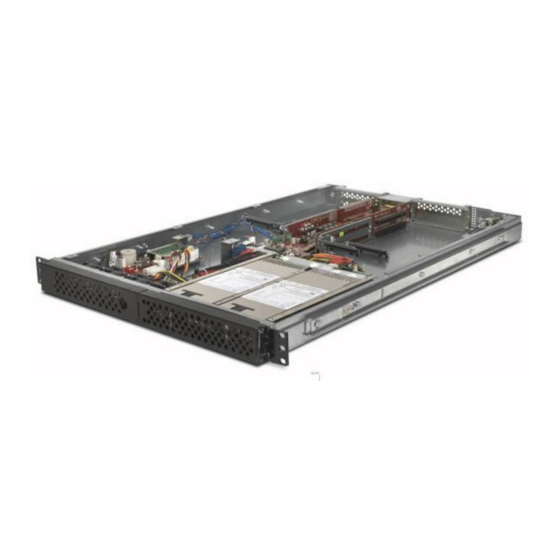

Magma ExpressBox4 1U Quick Installation Manual

9918 Via Pasar, San Diego, CA 92126, USA
Phone (800) 285-8990 US, (858) 530-2511 • Fax (858) 530-2733
www.magma.com
© 2007 Mission Technology Group, Incorporated, DBA Magma
This publication is protected by Federal Copyright Law, with all rights reserved. No part of this publication may be copied, photocopied,
reproduced, stored in a retrieval system, translated, transmitted or transcribed, in any form or by any means manual, electric, electronic,
electro-magnetic, mechanical, optical or otherwise, in whole or in part without prior written consent from Mission Technology Group, Inc..
Limitation of Liability
Information presented by Magma in this manual is believed to be accurate and reliable. However, Magma assumes no responsibility for its use.
No license is granted by implication or otherwise to any rights of Magma.
Trademark References
Trademarks and registered trademarks are proprietary to their respective manufacturers.
Product specifications and prices are subject to change without notice.
Package Contents
(1) Magma EB4-1U chassis
(2) Rack Slides and
mounting hardware
IMPORTANT
!
Important safety information and other information on how to use Magma ExpressBox
Guide.This manual is available online for a download at www.magma.com/support/manuals.
1

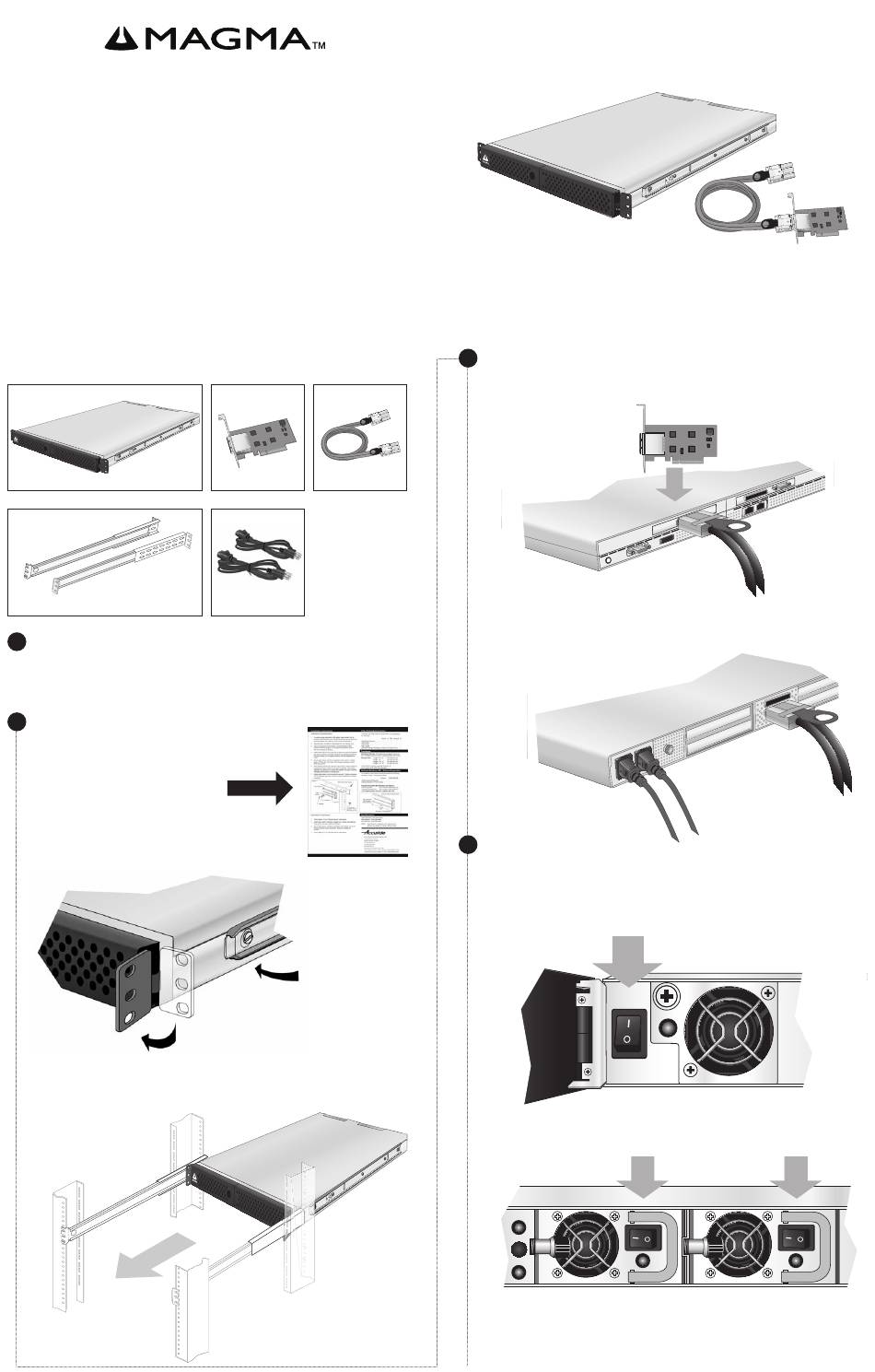

Install in the Cabinet
Secure the rack mount slides to the inside of the cabinet
using the provided screws and bracket as described in the
provided Installation Instructions sheet.
Fold the hinged mounting brackets on the front of the
chassis forward. Insert the chassis into the slides, front
first, from the rear of the cabinet.
Slide the chassis forward using the slide rails as a guide. Push the chassis forward until you can
unfold the front hinged mounting brackets and secure to front the rack posts.
Magma
09-09964-01-A
(1) Magma PCIe Host Card (1) PCIe Cable
(2) Power Cords
4
are provided in the User
Insert chassis
into slides
Fold Rack Ears Forward
Quick Installation Guide
Magma
ExpressBox
2
Insert PCIe Host Card and Connect Cables
Insert the Magma PCIe host card into a vacant x8 or x16 PCI Express slot in
host computer or server. Secure with retaining screw.
Connect one end of the PCI Express cable to the Magma PCIe Host card
installed in the host computer. Connect the power cords and other end of
PCIe cable at the rear of the enclosure.
3
Apply Power Correctly
It is important to apply power to ExpressBox
the computer BIOS to identify and assign resources properly.
Turn on power using the master power switch on the front of the chassis.
NOTE: There are two power supply modules included in ExpressBox
ON/OFF switch is in the ON position.
4
Magma ExpressBox will be transparent to your operating system. There is no software
required for proper configuration; however your operating system may prompt for
software or drivers for PCI Express cards later.
1U
4
4
first and then the computer. This allows
4 . Ensure that the
