- Page 1 INSTRUCTION GUIDE Cypress™ Flowmeter Only Excellence Cypress Ultrasonic ™ Flowmeter A flowmeter for long-term flow monitoring Instruction Guide...
-
Page 2: Table Of Contents
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contains FCC ID: XDULE40-S2, Contains IC: 8456A-LE4S2. CAN ICES-1/NMB-1; CAN ICES-3 (B)/NMB-3(B) SoundWater Technologies, LLC Table of Contents... -
Page 3: General Information Page

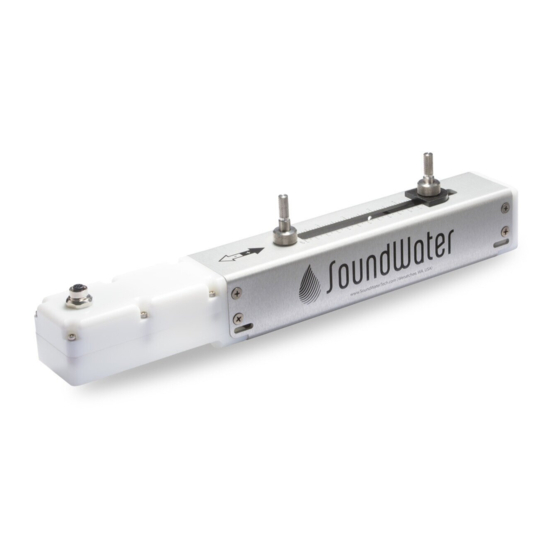

Cypress is a compact lightweight flowmeter with external power and communications for long-term flow SoundWater Advantages monitoring . The Cypress Flowmeter connects with your mobile device MEASUREMENTS YOU CAN TRUST WORKS IN TOUGH APPLICATIONS via bluetooth and your SCADA/PLC Our proprietary SoundWater Reciprocity Our transducers auto-adjust ultrasonic systems —... -
Page 4: Technology
Features Moveable acoustic transducers Integrated ruler Flow direction / orientation (indicates the positive direction of flow) Standard M12 circular connector for external power and communications Access ports for stainless steel mounting straps Anodized aluminum housing SoundWater Technologies, LLC General Information... -
Page 5: Dimensions
Dimensions Cypress Txx-C5 16.5" (41.9 cm) 3.88" (9.65 cm) 2.4" (6.1 cm) Cypress Txx-C11 22.5" (57.2 cm) 4.09" (10.38 cm) 2.4" (6.1 cm) Cypress Txx-CM5 Cypress Txx-CM11 16.5" (41.9 cm) 22.5" (57.2 cm) 2.4" (6.1 cm) 1-509-899-7838 :: soundwatertech.com General Information... -
Page 6: Orcas App
Begin by tapping on the Add Location (+) button . Give your location a name and then set the specific parameters for that loca- tion . Each location’s settings are stored in the Orcas App, ready for reuse . SoundWater Technologies, LLC Orcas App... -
Page 7: Parameter Setup
Use the handy parameter selection screens to set your units of measure and display preferences . Conveniently select pipe, liner, and liquid specifications from lists of pre-loaded values . Don’t see the right option? Add your own custom values . NOTE: Required menus must be completed . -
Page 8: Flowmeter Installation
Flowmeter Installation Straight Pipe Recommendations (X = diameter) Reduced Pipe Two Elbows In Plane Two Elbows, Out Of Plane Expanded Pipe Swirling Flow: Propeller Meter Swirling Flow: Partially Open Butterfly Valve SoundWater Technologies, LLC Flowmeter Installation... -
Page 9: Full Pipe Recommendations
Full Pipe Recommendations RECOMMENDED: NOT IDEAL: Keeps pipe full at meter for accuracy Allows air pockets to form at meter RECOMMENDED: NOT IDEAL: Keeps pipe full at meter for accuracy Post-valve cavitation can create air pocket RECOMMENDED: NOT IDEAL: Allows air to bleed off Air can be trapped Fair —... -
Page 10: Transducer Spacing
5 4-20mA Active Output (for optional MODBUS RTU / RS-485) 1 Not Used SoundWater recommends that you use the supplied con- 2 RS485 Data (+) necting cable to wire your flowmeter . If you need a different 3 Power 12-24VDC (1 .2W max) length, use a compatible part to Turk USA, # RSS 4 .5T (5 pin... -
Page 11: Wiring
Wiring 4-20mA Analog Output User Current Input Device SoundWater Flowmeter 4-20mA Output Current input Gray wire, Pin 5 Power Ground Black wire, Pin 4 Power (12-24VDC) – Blue wire, Pin 3 Power (12-24VDC) MODBUS RTU/RS-485Output User MODBUS Master Device SoundWater Flowmeter RS485 Data (–) -
Page 12: Installing The Flowmeter
Spaces Designs Do’s and Don’ts Don’t store your Cypress in a dry, indoor area when not in use . store, transport, or use your Cypress where the device may exceed 150˚F (65˚C) . keep your Cypress in its protective case when Don’t... -
Page 13: Operation
. 2 . The app will display a list of all Cypress flowmeters within its range . Tap the one you are currently using . Note: Your app will check the flowmeter to be sure it has the most recent programming . -
Page 14: Making A Recording
. Sharing Data You only need to upload the data log once from Cypress . Once the data is uploaded, it may be shared any number of times without additional uploading until a new data log is started . -
Page 15: Explanation Of Recording Time
1577 seconds (26 min . 17 sec .) will record 12 flow measurements (covering a total of 60 seconds) . If you record flow for 30 days, then the Cypress 12 months 3154 seconds (55 min . 34 sec .) again will maximize the number of flow measurements . - Page 16 Only Excellence 1-509-899-7838 sales@soundwatertech.com support@soundwatertech.com soundwatertech.com SWT 4459 • REV 01-24-20...
