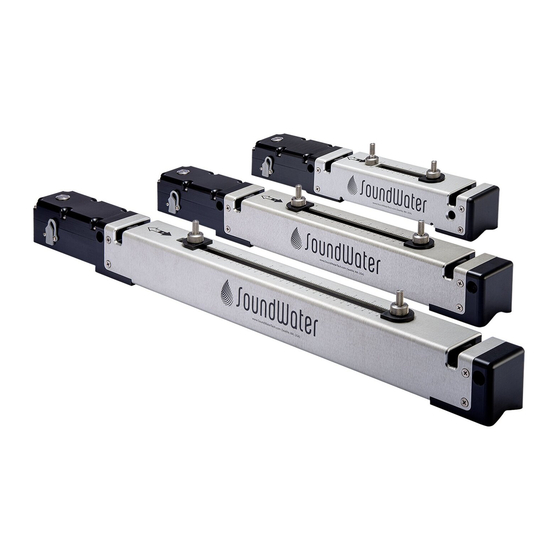

- Page 1 INSTRUCTION GUIDE Orcas™ Flowmeter Only Excellence Orcas Ultrasonic ™ Flowmeter A portable flowmeter designed for speed and ease Instruction Guide...
- Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contains FCC ID: XDULE40-S2, Contains IC: 8456A-LE4S2. CAN ICES-1/NMB-1; CAN ICES-3 (B)/NMB-3 (B) MODEL: SWT ORCAS-01 SoundWater Technologies, LLC...
-
Page 3: Table Of Contents
Contents General Information Page General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Meter Features . -
Page 4: General Information Page
INCREASES PRODUCTIVITY LONG LIFE / LOW MAINTENANCE Orcas App, you’ll get your job done Featuring compact lightweight SoundWater products are built to last more quickly every time . construction and intuitive apps, our using the highest quality materials, products reduce installation, training, gasketed &... -
Page 5: Technology
Technology The transit time flowmeter operates by alternately transmit- ting and receiving a burst of sound energy between the two transducers . The burst is first transmitted in the direction of fluid flow and then against fluid flow . Since sound energy in a moving liquid is carried faster when it travels in the direction of fluid flow (downstream) than it does when it travels against fluid flow (upstream), a differ- ence in the travel times will occur . -
Page 6: Orcas App
Begin by tapping on the Add Location (+) button . Give your location a name and then set the specific parameters for that loca- tion . Each location’s settings are stored in the Orcas App, ready for reuse . SoundWater Technologies, LLC Orcas App... -
Page 7: Parameter Setup
Parameter Setup Use the handy parameter selection screens to set your units of measure and display preferences . Conveniently select pipe, liner, and liquid specifications from lists of pre-loaded values . Don’t see the right option? Add your own custom values . NOTE: Required menus must be completed . -
Page 8: Flowmeter Installation
Flowmeter Installation Straight Pipe Recommendations (X = diameter) Reduced Pipe Two Elbows In Plane Two Elbows, Out Of Plane Expanded Pipe Swirling Flow: Propeller Meter Swirling Flow: Partially Open Butterfly Valve SoundWater Technologies, LLC Flowmeter installation... -
Page 9: Full Pipe Recommendations
Full Pipe Recommendations RECOMMENDED: NOT IDEAL: Keeps pipe full at meter for accuracy Allows air pockets to form at meter RECOMMENDED: NOT IDEAL: Keeps pipe full at meter for accuracy Post-valve cavitation can create air pocket RECOMMENDED: NOT IDEAL: Allows air to bleed off Air can be trapped Fair —... -
Page 10: Transducer Spacing
When using the data logging function and recording for more than 12 hours, the Orcas must be connected to a power source, such as a portable USB power bank or a USB power adapter connected to an external power source . SoundWater Technologies, LLC Flowmeter installation... -
Page 11: Installing The Flowmeter
Installing the Flowmeter Once the transducer spacing has been set and locked in 4 . Strap the meter to pipe with the mounting straps, place, you are ready to install the flowmeter on your pipe . clamping the straps into the cam cleats . Hand tighten only! 1 . -
Page 12: Operation
“REC” button indicating that the existing data log will be over-written if a new data log is started and gives the user the ability to continue with the new data log or to cancel. SoundWater Technologies, LLC Operation... -
Page 13: Making A Recording
Making a Recording • Connect to the meter with the Orcas App . • Tap the Data Logging button to access the data logger features . • Using the slider bar in the app’s data logger setup view, set the recording time . (See Explanation of Recording Times on the next page .) •... -
Page 14: Explanation Of Recording Time
5 seconds for 30 days will exceed 10,000 measure- power source, such as the USB power ments, so the Orcas will increase the sampling period to 260 adapter supplied with the Orcas. seconds (30days /10000) to record 10,000 measurements . SoundWater Technologies, LLC Operation... -
Page 15: Troubleshooting
Older steel and ductile iron pipes may be heavily corroded, which can prevent ultrasound transfer and flow measurements . For these types of applications, SoundWater has a special transducer configuration that helps to penetrate corrosion, making flow measurement possible . - Page 16 Only Excellence 1-509-899-7838 sales@soundwatertech.com support@soundwatertech.com soundwatertech.com SWT 9676 • REV 01-24-20...
