MODEL
200-480
200-490

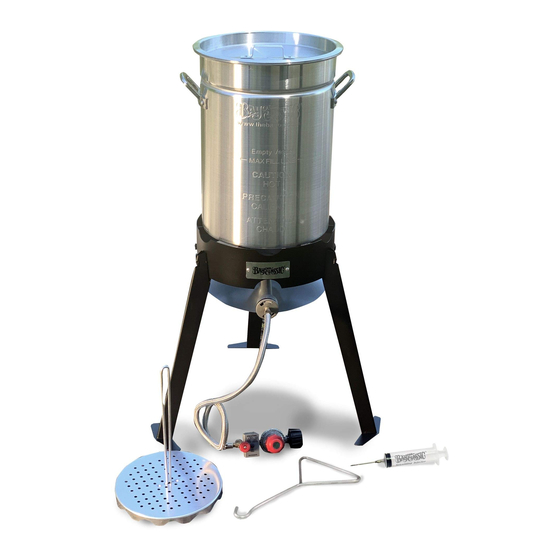

LP GAS TURKEY FRYER KIT
OWNER'S MANUAL
SAFETY ALERTS, ASSEMBLY & OPERATING INSTRUCTIONS
KEEP THIS MANUAL FOR FUTURE REFERENCE
NOT FOR COMMERCIAL USE
This Instruction Manual contains important information necessary for the proper assembly and
safe use of the appliance. You must carefully read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and instructions when using the appliance.
This manual is for Barbour International Bayou Classic
manufacturer's product, refer to the manual supplied with that product. Only use approved
Bayou Classic
1-800-736-8028 (English Only) • Monday - Friday 7:30am - 4:30pm CST
GENERAL MAINTENANCE & STORAGE
®
replacement parts and accessories with this appliance.
Barbour International, Inc. • 101 Cypress Way, Brandon, MS 39042
www.thebayou.com
®
products only. If you are using another
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bayou Classic 200-480
Summary of Contents for Bayou Classic 200-480
- Page 1 You must carefully read and follow all warnings and instructions before assembling and using the appliance. Follow all warnings and instructions when using the appliance. This manual is for Barbour International Bayou Classic ® products only. If you are using another manufacturer’s product, refer to the manual supplied with that product.
- Page 2 SAFETY DANGER WARNING CAUTION Not following these instructions will most Hazard or unsafe practices could result in Hazard or unsafe practices possibly certainly result in fire or explosion which severe property damages, personal injury, resulting in minor property damages, will cause property damage, personal or death.
- Page 3 WARNING • Sober adult operation ONLY! The use of alcohol, prescription or non-prescription drugs may impair ability to properly assemble or safely operate appliance. • Do not use appliance for anything other than its intended purpose. • This appliance is for OUTDOOR USE ONLY, and shall not be used in a building, garage or any other enclosed area.
-
Page 4: Safety Symbols
SAFETY SYMBOLS WARRANTY Barbour International, Inc. (“Vendor”) warrants to the original retail purchaser of this appliance and no other person, that if this appliance is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such appliance shall be free from defects in material and workmanship. -
Page 5: About This Product
ABOUT THIS PRODUCT This gas appliance has greater heat output than traditional kitchen stoves. It can be referred to as a cooker, fryer, or appliance in this manual. The appliance is designed to work with a cooking vessel (pot). The appliance is only designed to work with the hose and regulator supplied with this product. - Page 6 ASSEMBLY INSTRUCTIONS Carefully assemble this appliance according to these instructions. Inspect contents in the box to ensure all parts are included and undamaged. Please contact Barbour International, Inc. if any parts appear damaged, missing, or inaccurate. Proof of purchase will be required. Tools Required: Parts Included: Seasoning...
- Page 7 5. Return frame assembly to upright position and fully tighten leg bolts with a wrench. 6. Attach Hose to Burner: It is important to properly connect the orifice to the burner. The male hose connector with orifice will screw directly into the burner. To attach, hold the air shutter up against the end of the burner. Place the small end of the spring onto the male connector, and insert into threaded hole of the burner.
-
Page 8: Carbon Monoxide Hazard
LIQUID PROPANE (LP) CYLINDER This appliance is designed to only operate using Liquid Propane (LP) gas in a self-contained gas supply system (tank). The LP cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders, U.S. - Page 9 These features and specifications for the LP Cylinder MUST be present. If you exchange the LP cylinder, make sure the new tank also complies with all the specifications listed here: LP Cylinder Valve 9.1 Kg/20 lbs capacity; (Trilobular Handwheel 31.75cm/12.5-in diameter x 45.72cm/18-in tall indicates OPD is present) Type-1 gas cylinder valve outlet to accommodate Protective...
- Page 10 HOSE & REGULATOR The Hose Valve Regulator (HVR) supplied with this appliance is an independently CSA certified product. It is designed to connect the appliance to a 9.1 Kg/20 lbs LP Cylinder. Read and follow all instructions and warnings on the supply hose safety tags. Clean and inspect the HVR before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the HVR must be replaced prior to the appliance being put into operation.
- Page 11 THERMOMETER The thermometer included with this appliance is a sensitive measurement device. It is designed to attach to a cooking vessel and register liquid temperature. If there is evidence that the thermometer has been dropped, bent, or twisted, it must be replaced prior to the appliance being put into operation. If the thermometer supplied with this appliance has been lost or damaged, contact Barbour International, Inc.
-
Page 12: Gas Leak Test
GAS LEAK TEST When to test for gas leaks: • After assembling your cooker and before lighting for the first time, even if purchased fully assembled. • Every time the LP gas cylinder is refilled, or if any of the gas components are replaced. •... - Page 13 PLACEMENT OF COOKER DANGER • This appliance is portable and should not be installed into cabinetry or any other enclosed casing. Any placement or installation of the appliance must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquified Petroleum Gases, ANSI/NFPA 58;...
-
Page 14: Lighting Instructions
LIGHTING INSTRUCTIONS Follow these instructions for safe and proper lighting and re-lighting of the appliance. CAUTION • The Regulator supplied with this appliance is equipped with a Gas Flow Limiting Device that will greatly restrict the flow of gas if activated by a rapid release of gas. Reference Trouble-Shooting Tips if flame ever appears weak. -
Page 15: Maintenance And Care
4a. Alternative Lighting: It is possible to light this appliance with a Flame Spreader standard paper book match. To light: A. BEFORE turning on (open) the Control Knob, strike the paper book match and place it in the cup of the burner with the (hand away flame of the match over the serrated edge of the flame from burner) -
Page 16: Troubleshooting
Hang regulator • Remove batteries from product after each use to prevent corrosion to frame with or leaking. wire hook • Always turn off (close) the gas supply and disconnect the hose and regulator from the LP cylinder to move or store. •...
