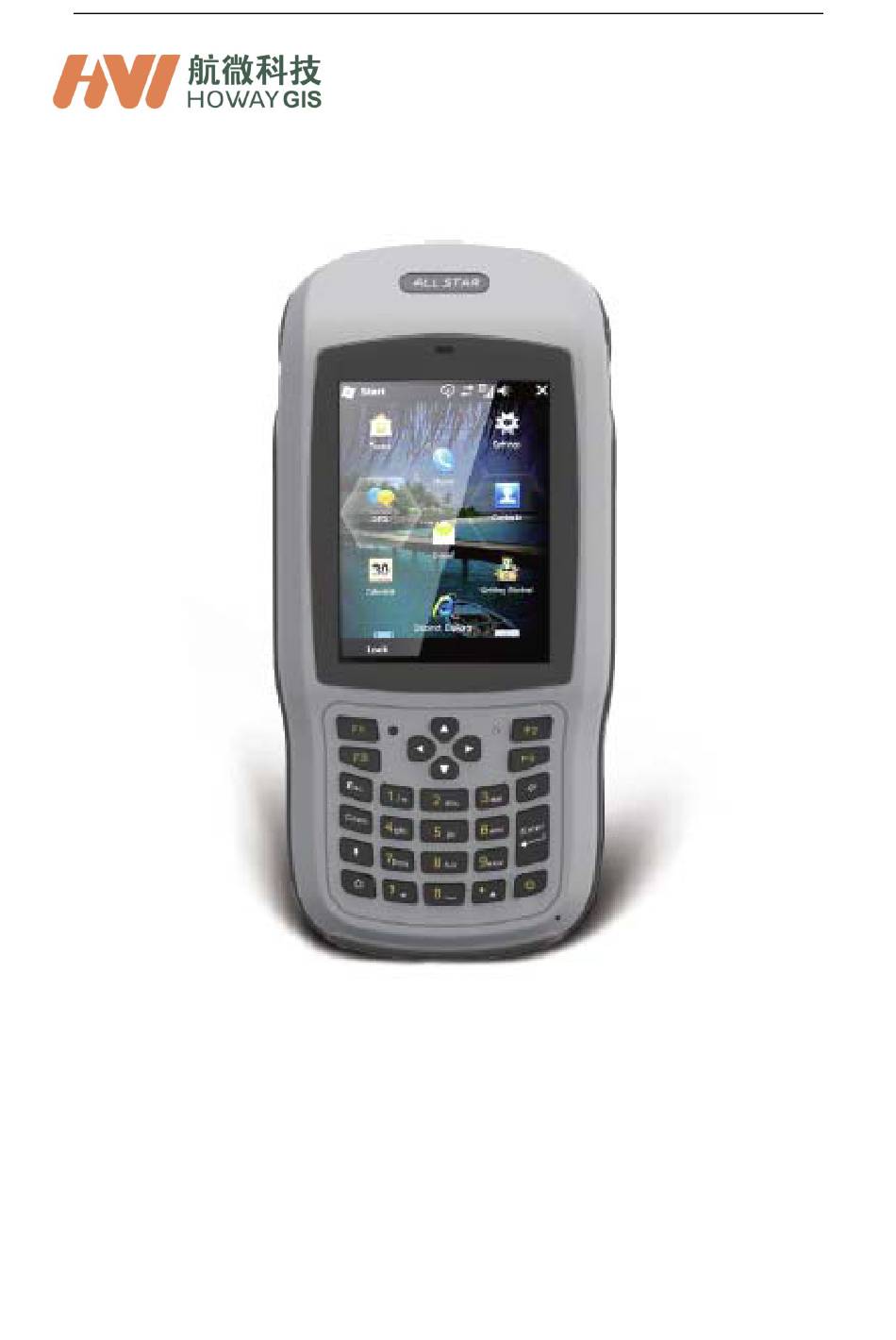

- Page 1 T18 Series GIS Handheld Quick Start Guide V1.0...
-
Page 2: Table Of Contents
Table of Content 1. Appearance ........................3 1.1. General diagram ..................... 3 1.2. Keyboard ........................ 3 1.3. LED .......................... 4 Operating Instructions ....................4 2.1. Installing the TF card/SIM card/Battery ..............4 2.2. Charging ........................5 2.3. Turning the collector on/off ................... 5 2.4. - Page 3 4.2. Optional Accessories .................... 17 Environmental Specifications ................... 17 Warranty Terms ....................... 17 Contact information ....................18 Appendix– Product Safety Warnings ............... 18...
-
Page 4: Appearance
1.Appearance 1.1. General diagram 1.2. Keyboard The yellow section are the system defaults, and the functions of the 4 hotkeys are below: F1: Start menu. F2: Off. F3: Camera. F4: System main interface. -
Page 5: Led
The other keyboard operation: System defaults to the digital input method System Default Lowercase letters Switch between / and - Press↑（shift） Press↑(shift) again, it will be digital input method Capital letters Switch between / and - Press Caps Press the Caps button again for lowercase letters 1.3. -
Page 6: Charging
Insert the battery according the instructions on the battery label. Close the back cover and turn the back cover screw to the lock position. 2.2. Charging DC adapter: Open the DC IN cover on the right side, and charge with a specialized DC adapter. -
Page 7: Synchronization Function
the stylus to press the reset key to restart the T18. 2.4. Synchronization Function Make sure Windows Media Device Center (WMDC) has been already installed in PC, formerly activesync for Windows XP. If not, please download from this link below and install https://www.microsoft.com/en-US/download/details.aspx?id=3182 Choose ‘Enable advanced network functionality’... - Page 8 If WMDC doesn’t connect, follow the steps below to check its driver first. Check whether a suitable driver of T18 has been installed or not by PC Device Manger. If not, unrecognized device will be present in ‘Device Manager’ Click on the ‘unrecognized device’， choose ‘update driver software’， then click ‘Let me pick from a list of device drivers……’...
- Page 9 Choose ‘Remote NDIS Compatible Device’ , click Next as below, The driver will be installed successfully. A RNDIS device like below figure will be shown in PC Device Manger If the above RNDIS device has been already shown in Device Manager, WMDC doesn’t launch successfully yet, especially for Win10 operating system.
-
Page 10: Installing Applications
If WMDC connection is instability, please turn off firewall of PC. If you don’t want to turn off the firewall, please set the firewall configuration according to the document “T18 RNDIS Firewall Settings”. This document can be get from your vendor. 2.5. -
Page 11: Directly Installing Applications
NOTE: We suggest installing the application in ‘Flash Storage’, and saving your data to a TF card. 2.5.2. Directly Installing Applications If the installation file is compatible on mobile devices, copy the file into the T18 and click to directly start the installation. 2.6. -
Page 12: Camera
2.7. Camera Select ‘Start->Picture & Video’, select ‘Camera’ or the ‘camera’ key icon to take photos. Press the camera key(F3) to take photos. Click screen and select ‘OK’ to exit. 2.8. USB Mass Storage Insert a TF card to TF card slot of the device Choose ‘Disk Driver’... -
Page 13: User Serial Port
Plug a USB cable to connect the device and PC PC will search an appropriate driver and automatically install it. Then there is a new device called “USB mass storage device” in PC Device Manager A new drive shows in PC Disk Volume 2.9. -
Page 14: Long Range Bluetooth(Optional)
2.10.2. Long Range Bluetooth(Optional) Select ‘Start->Settings->System->’, click ‘BT Manage’ Chose the module of ‘DirectConn’, and press ‘Power On’. Click ’Search BT’ to start searching for BT devices. After all BT devices have been found, select a device. Click ‘Connect’ to pair with a BT device of your choice. Your screen will display “Connect the BT device successfully”... -
Page 15: Wi-Fi
The default baud rate is 38400. The ‘PIN’ code refers to the pairing PIN code of the BT device which T18 wants to pair with. If you check ‘Auto Conn’, T18 will automatically connect to the last pairing BT device when powered up. -
Page 16: Adjusting The Backlight
align the screen. 3.2. Adjusting the backlight Select ‘Start->Settings->System->Backlight' to adjust backlight according to the guide. 3.3. Removing programs Select ‘Start->Settings->System->Remove Programs ‘, select the programs you wish to remove in the list and click ‘OK‘ to remove. 3.4. Auto power off* (*NOTE: The device does not support the Auto power off function, instead use Go-to-sleep mode.) Select ‘Start->... -
Page 17: Accessories
Accessories 4.1. Standard Accessories Item Name Description Quantity DC Adapter 220V/DC5V/2A USB cable USB to B-TYPE USB cable Serial cable DB9 serial cable Li-ion Battery 3.7V/6500mAh Strap Black, 180*12mm Stylus Black, 127mm Screen protection film 57*76mm, 3H & Screen Microfiber Cloth User guide Digital version... - Page 18 HowayGIS’ Authorized Dealers. During the warranty period, HowayGIS will, at its option, repair or replace this product at no additional charge. Repair parts and replacement products will be furnished on an exchange basis and will be either reconditioned or new.
- Page 19 NOTE: Please use the original factory parts. Contact information HowayGIS Infotech Co, Shanghai, China Address: Room 230, Focus Building, Lane No.1985,Chunshen Road, Minhang District, Shanghai 201102 China Telephone: ~86-21-56383139 Email: supports@howaygis.com...
- Page 20 CAUTION! CONNECTIONTOA USBINTERFACEMUST BE LIMITEDTO USB2.0VERSIONORHIGHER CONNECTIONTO “POWERUSE” MODEISPROHIBITED.
