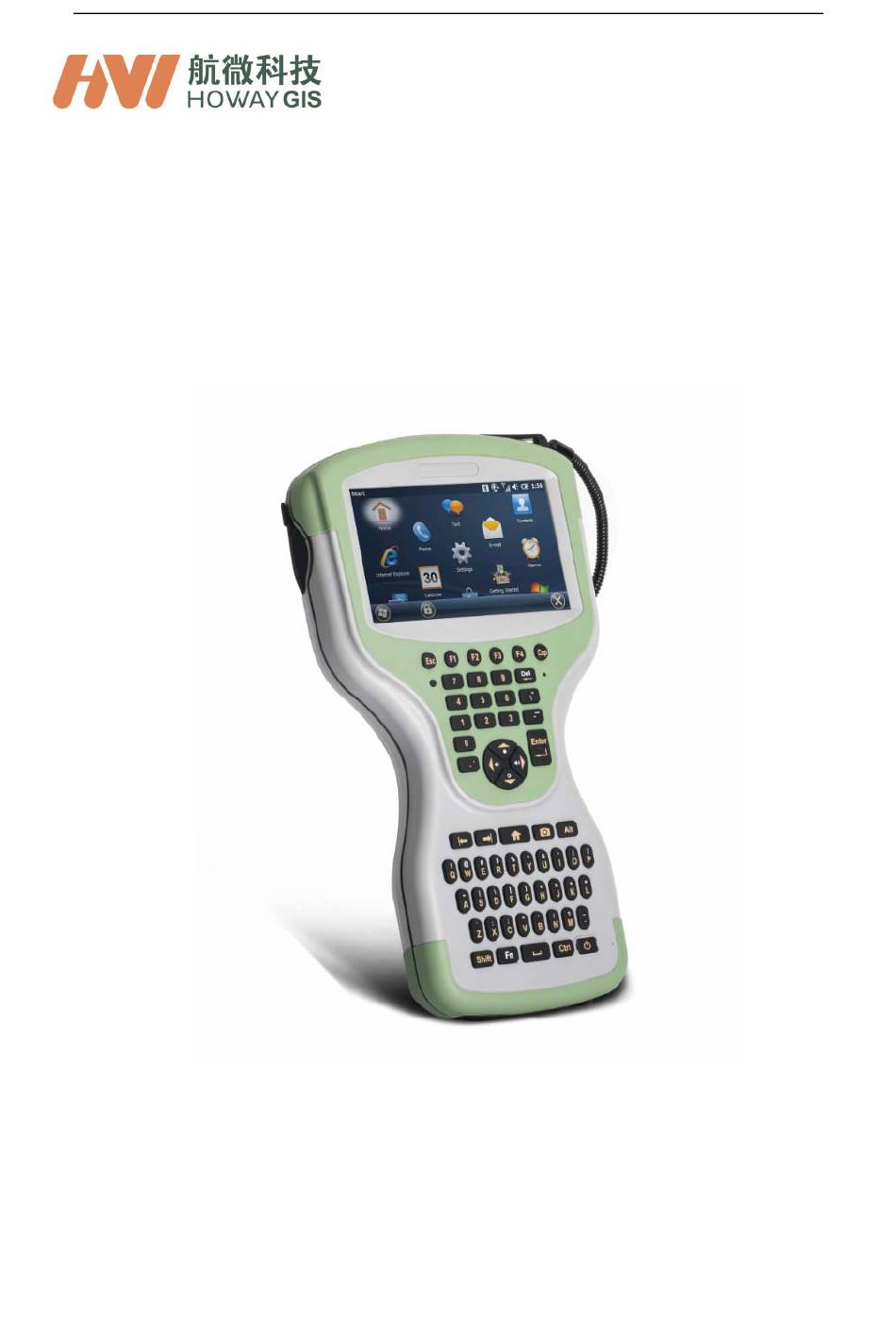

  • Page 1 T21 Series GIS Handheld Quick Start Guide V1.0...

  • Page 2: Table Of Contents

    Table of Content RND 1. Introduction ......................3 1.1. Features ........................3 1.2. Keyboard ........................ 3 1.3. LED Functions ......................5 Getting Acquainted ....................6 2.1. Installing the TF card/SIM card/Battery ..............6 2.2. Charging ........................7 2.3. Turning the collector on/off ................... 7 2.4.
  • Page 3 4.1. Standard Accessories .................... 17 4.2. Optional Accessories .................... 18 Environmental Specifications ................... 18 Warranty Terms ....................... 18 Contact information ....................19 Appendix – Product Safety Warnings ............... 19...

  • Page 4: Rnd 1. Introduction

    1.Introduction 1.1. Features The following section describes the general features of the T21 Handheld Controller. Figure 1-1: General Diagram 1.2. Keyboard...
  • Page 5 Some keys have two different silk screen colors. One is yellow, the other is white. “Fn” key is used to switch the key’s function between the two colors. Yellow silk screen indicates the default function. When the indicator in the center of the four arrow keys lighted, the function indicated by white color is available.

  • Page 6: Led Functions

    Yellow To advance the cursor to the Previous Tab key previous tab stop. Yellow Switches to the Windows CE7 Home Start Menu. Yellow Camera Access the camera. Yellow To change (alternate) the function of other pressed keys. Yellow Combine with an alpha key to Shift switch between upper case and lower case letters.

  • Page 7: Getting Acquainted

    Getting Acquainted 2.1. Installing the TF card/SIM card/Battery Turn the back cover screw to the open position according to the instructions on a label in the box, and take off the back cover. Figure 2-1: Opening the Back Cover Insert the SIM card and TF card according to the instructions in the battery cabin. Figure 2-2: Inserting the SIM Card Insert the battery according the instructions on the battery label( Figure 2-3).

  • Page 8: Charging

    Close the back cover and turn the back cover screw to the lock position. 2.2. Charging Open the cover at the bottom of the device, and charge with the DC adapter. Charging current can reach 1.5A. 2.3. Turning the collector on/off Make sure the battery has enough power, or connect the T21 to a DC adaptor.
  • Page 9 Click Browse to check the files in the T21, and then transfer data between your PC and the T21. If WMDC doesn’t connect, follow the steps below to check its driver first. Check whether a suitable driver of T21 has been installed or not by PC Device Manger.
  • Page 10 Choose ‘Remote NDIS Compatible Device’ , click Next as below, The driver will be installed successfully. A RNDIS device like below figure will be shown in PC Device Manger If the above RNDIS device has been already shown in Device Manager, WMDC doesn’t launch successfully yet, especially for Win10 operating system.

  • Page 11: Installing Applications

    2.5. Installing Applications 2.5.1. Installing Applications via ActiveSync or WMDC Make sure the T21 is connected with your PC via ActiveSync or WMDC. Figure 2-4: T21 Connected with PC Click the installation file on your PC to start the installation of an application. Figure2-5: Installing the Applicationg Select an installation directory in the T21（Flash Storage is suggested）, and tap install.

  • Page 12: Directly Installing Applications

    Figure 2-6: Choosing Install Location NOTE: We suggest installing the application in Flash Storage, and saving your data to a TF card. 2.5.2. Directly Installing Applications If the installation file is compatible on mobile devices, copy the file into the T21 and tap the file to directly start the installation.

  • Page 13: Camera

    Figure 2-8: GNSS Status 2.7. Camera Select Start>Picture & Video, select Camera icon or press camera key. Press the camera key or F3 to take photos. Tap screen and select OK to exit. 2.8. U Disk Function a) Switch T21 to be ‘Disk Mode’ by clicking Setting -> System -> USBDisk -> Switch to Disk Mode b) Plug a USB disk to USB port at the bottom of the T21 while Current State is in Disk mode.

  • Page 14: Headset Jack

    c) The drive of ‘USB Disk’ will be shown in ‘File Explorer’ Here something important needs to be noted: Do not insert a U disk and USB cable at the same time Each time use the U disk function, you have to switch the T21 to ‘Disk Mode’ first, Or the U disk will not be found.

  • Page 15: Wireless Connection (Bluetooth/Gprs/Wifi)

    2.11. Wireless Connection (Bluetooth/GPRS/WIFI) 2.11.1. Standard Bluetooth Select Start>Settings>Connections>Wireless Management, tap the icon to activate the Bluetooth(BT) device. Select Start> Settings> Bluetooth, and tap Add new device…. Follow the tips shown on the screen to finish the operation of pairing the other BT Device. NOTE: The standard Bluetooth virtual ports are COM7 and COM9.
  • Page 16 Tap Console to check the status of Bluetooth, as shown below. Figure 2-11: BT Manager-Status Tap Setup to setup this Bluetooth, as shown below. Figure 2-12: BT Manager-Setup The default baud rate is 38400. The PIN code refers to the pairing PIN code of the BT device which T21 want to pair with. If you check Auto Conn, T21 will automatically connect to the last pairing BT device when powered up.

  • Page 17: Wi-Fi

    Bluetooth been used, user serial port is disable. 2.11.3. Wi-Fi Select Start>Settings>Connections>Wi-Fi. Tap Search for Networks, select a network listed. Follow the installation guide to input a password and confirm connection to Wi-Fi. 2.11.4. GPRS/3G Data connection Make sure there is a SIM card in the T21. Select Start>Settings>Connections>Connections.

  • Page 18: Auto Power Off

    the list and, click OK to remove. Figure 3-3: Remove Program 3.4. Auto power off* (*NOTE: The device does not support the Auto power off function, instead use Go-to-sleep mode.) Select Start> Settings> System> Power> Advanced, set the power off time in different conditions. Backlight will be off according to selected settings.

  • Page 19: Optional Accessories

    HowayGIS’ Authorized Dealers. During the warranty period, HowayGIS will, at its option, repair or replace this product at no additional charge. Repair parts and replacement products will be furnished on an exchange basis...

  • Page 20: Contact Information

    The purchaser’s sole remedy shall be replacement as provided above. In no event shall HowayGIS be liable for any damages or other claim including any claim for lost profits, lost savings or other incidental or consequential damages arising out of the use of, or inability to use, the product.
  • Page 21 • Clean the display with a soft cloth, and be careful not to wipe the display with anything abrasive. • ℃ ℃ Do not expose your device to extreme heat (60 ) or cold ( -20 ). For example, do not leave it in the trunk of your car in high heat conditions.
  • Page 22 CAUTION! CONNECTION TO A USB INTERFACE MUST BE LIMITED TO USB2.0 VERSION OR HIGHER CONNECTION TO “POWER USE” MODE IS PROHIBITED.
