FOS Technologies TOURING L005528 Manual

7x15 6 in 1 weatherproof aluminium led par with ip true powercon connectors
Hide thumbs

Advertisement

Table of Contents

FOS PAR IP 7x15 6 in 1
This manual contains important information.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOURING L005528 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FOS Technologies TOURING L005528

Summary of Contents for FOS Technologies TOURING L005528

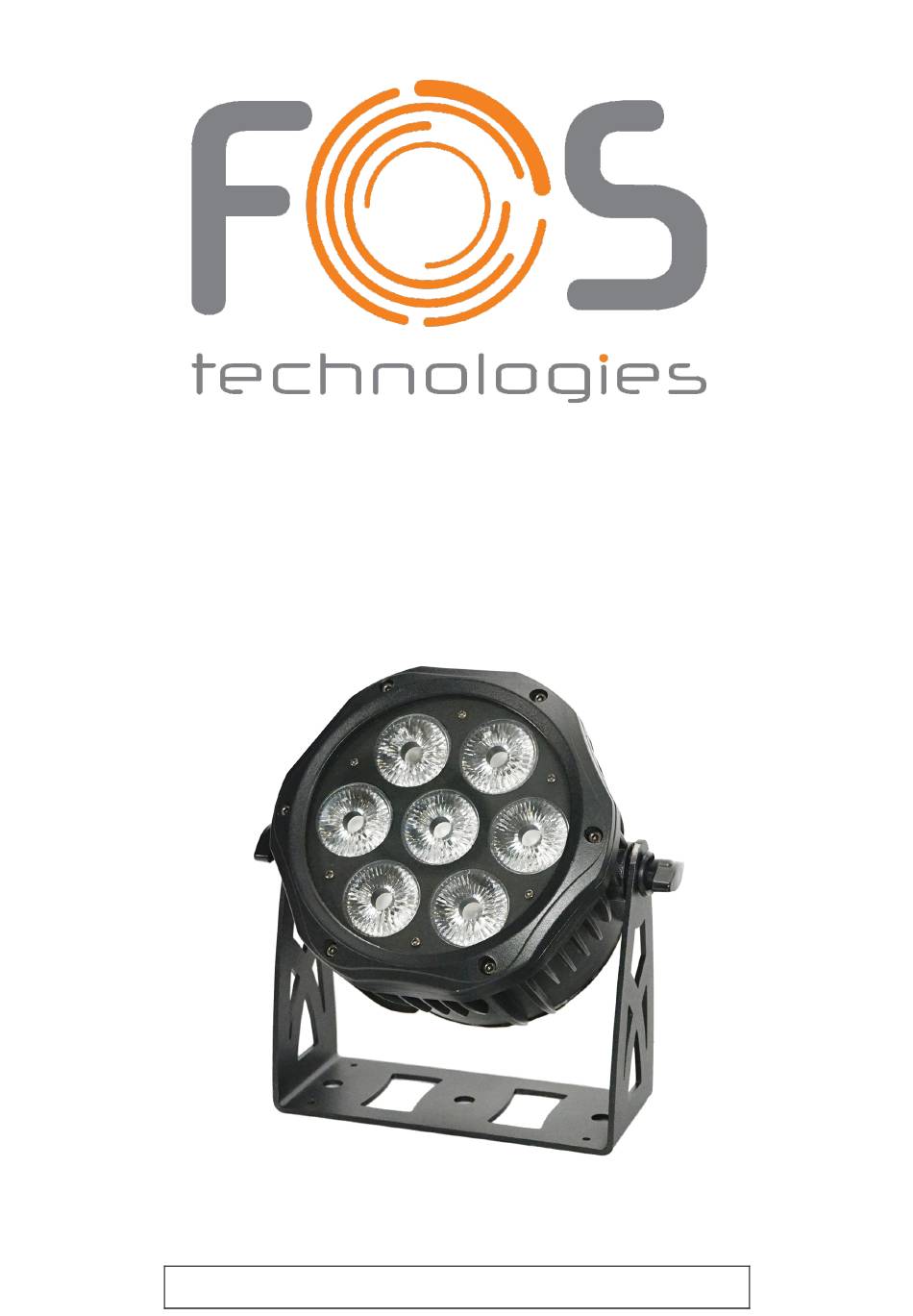

  • Page 1 FOS PAR IP 7x15 6 in 1 This manual contains important information.
  • Page 2 Please read before operating fixture. 1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:  non-professionals, not to disassemble the light arbitrarily and lighting accessories inside.  rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected).
  • Page 3 2 TECHNOLOGY REFERENCE Voltage: AC100-240V Frequency: 50Hz-60Hz Consumption: 105W Lamp: 7pcs*15W RGBWA+UV 6in1 LED Channel: 6/10CH IP rate: IP65 Mode of control: DMX512, Auto, Sound, Master-slave. Net weight: 3.1KG 3 Board Instruction Menu Value Description Address 001~512 DMX address setting Manual Color Red(0~99)
  • Page 4 4 DMX CHANNEL SHEET Channel Value Function 0--255 Red dimmer, From dark to bright 0--255 Green dimmer, From dark to bright 0--255 Blue dimmer, From dark to bright 0--255 Warm white dimmer, From dark to bright 0--255 Amber dimmer, From dark to bright 0--255 UV dimmer, From dark to bright 10CH...
  • Page 5 Control CH9(193-220) Speed of color fade, from slow to fast Control CH9(221-255)Sensitivity of sound 5 Current adjustment Press the “ENTER” button for 5 seconds . you will enter into the current adjustment interface , Press enter to change the color , “UP” and “Down ” to change the value .
  • Page 6 ATTENTION: Please do remember to connect one circle circuit plug on the output signal of last equipment. And this circle circuit plug was connected a 120ohm resistance between terminals 2 and 3 of the CANON plug, connect this circle circuit plug can avoid the signal flash phenomena of signal DMX512 during the transmission.
  • Page 7 8 AFTER SERVICE 1. Our company offer technical consultation to customers for ever. 2. If the machine is wrong and need repairmen, please truthfully fill in the related content and feedback us the problems timely, as well as we have to improve the product. 3.
  • Page 8  Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
