User's Manual
Wireless Battery Light
Luminus NANO
USER'S MANUAL
--------------------------------------------------------------------------------------------------------
Before you operate this fixture read the manual carefully. Always make sure to include the manual
if you pass/rent/sell the fixture to another user.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FOS Technologies Luminus NANO
Summary of Contents for FOS Technologies Luminus NANO

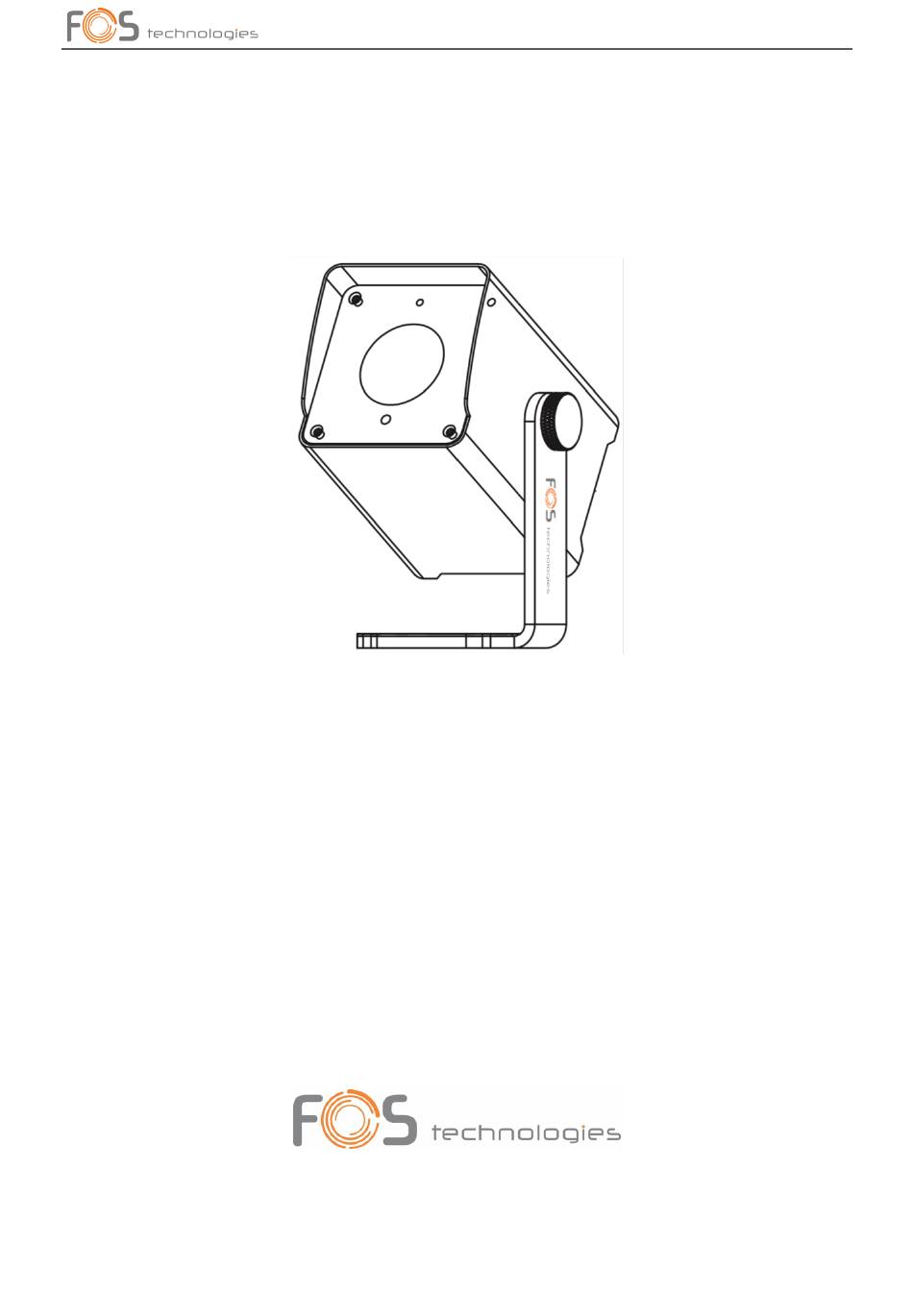

- Page 1 User’s Manual Wireless Battery Light Luminus NANO USER’S MANUAL -------------------------------------------------------------------------------------------------------- Before you operate this fixture read the manual carefully. Always make sure to include the manual if you pass/rent/sell the fixture to another user.
-
Page 2: Table Of Contents
User’s Manual TABLE OF CONTENT 1. Warning ………………………….…………………………………..………..…………….………………………………………….2 1.1 Safety Instructions ………………………………………….………………..………………………………………….2 1.2 Rigging ………………………………………………………….………………………………………………………….….…3 2. Product Introduction ……………………………………………………………………………………………….……………3 2.1 Items in the Package …………………………………..………….…….…….…….…………………….……..3 2.2 Product Overview………………………………………………………………….……………………………………….3 2.3 Fixture Temperature ………………………….………….………………….……….…….…………….……………….5 2.4 Storing the Fixture ………………………..……………………….…….………….………………………………6 2.5 Mounting ………………………………………………...……………………………………….……….……………………6 2.6 Specifications…………………………….……..……….………………………………….……….…………………… 7 3. Battery Charge …………………..……….……………….……………………………………………….…………………………8 4. Product Setup …………..………..…………………………………………………………...…………………………………8 4.1 Menu Lock ……………….………………………………………………………………………………………………….8 4.2 Factory Reset…………….…….…………………………………………………………………………………………8 4.3 Menu Map …………………………………………………………………………….………………………………………9 4.4 DMX Addressing ……………………………………….………………………………………….……………………….9 4.5 Wireless DMX Setup ………………………………………………………………….…………………………………10 4.6 DMX Signal Fail ………………………………………………………………………………………………………………12 5. Operation ……………………………………………………….…………………………………………………………………….12... -
Page 3: Warning
User’s Manual 1. WARNING 1.1 Safety Instructions This product guide contains important information about the safe installation and use of this product. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the products. -
Page 4: Rigging
User’s Manual Always switch off the fixture when it is not in use or before cleaning it or before attempting any maintenance work. IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the fixture. 1.2 Rigging Concerning rigging, trussing for this fixture, please follow the European and national guidelines. Only the qualified technicians are allowed for the device installation, The fixture must never be mounted for a possible swinging position, and a safety cord attached must always be used. 2. PRODUCT INTRODUCTION 2.1 Items in the Package After receiving the fixture, please carefully unpack the product and make sure the following parts are all included inside the package and are all in good condition. - Page 5 User’s Manual H1 uses a very stable wireless DMX transceiver (W-DMX Sweden compatible). The fixture can also be controlled with infrared remote controller. The IR controller can help users to achieve all working functions. This highly compact luminaire has very small dimensions. It has strong magnets on its bracket and can be attached to any metal surface. It is absolutely an ideal tool for mobile DJ/Bands, wedding, exhibitions, ball room and hotel banquet halls etc.
-
Page 6: Fixture Temperature
User’s Manual 1. Menu t o Select the programming functions or exit from current setup 2. Enter Enter the current menu or confirm the current function value 3. Up Scroll “UP” through menu list to increase value of current function 4. Down Scroll “DOWN” through menu list to decrease value of current function 5. Wireless DMX indictor 2.2.3 Fixture Dimensions 2.3 Fixture Temperature The fixture has temperature protection function. You can easily check fixture temperature via the OLED display information menu. When fixture temperature is higher than 65 degrees, light output will decrease to 80%. When... -
Page 7: Storing The Fixture
User’s Manual fixture temperature is higher than 70 degrees, light output will decrease to 60%. When fixture temperature is higher than 75 degrees, leds will go off automatically until temperature comes down to 55 degrees. 2.4 Storing the Fixture Make sure to fully charge all fixtures before storing. Partially charged batteries will lose capacity. Fully recharge every 6 months if not used. 2.5 Mounting The fixture can be mounted in several orientations. 2.5.1 The fixture can sit on even and solid floor and work as an uplight. Uses can adjust tilt by turning the knob. Make sure that the fixture is always placed on even and strong enough surface, and keep it 0.5m away from projection objects. -
Page 8: Specifications
User’s Manual When install the fixture to crossbar or truss, always use an extra safety cord (not supplied with the fixture). Users also need to make sure the crossbar is stable or not moving, and can support a weight of 37 kg (fixture net weight 3.7kg). 2.5.3 The fixture also has strong magnets on its brackt, and can be attached to metal structures. Please use safety cord when attaching the fixture to metal structures. For the rest of safety installation, please always respect your local regulations. 2.6 Specifications Electrical Power input 100-240VAC 50/60Hz (via charge bag) Power consumption 12W DC input 8.6V 1.5A Battery Battery type Rechargeable lithium-ion battery Charge time About 5.0 hours Battery life Around 5.0 hours full color Around 8 hours at running preset programs Around 12 hours at running single color Light sources Led 1x12W, RGBWA+UV 6-in-1... -
Page 9: Battery Charge
User’s Manual 3. BATTERY CHARGE The fixture has a rechargeable lithium battery and auto-ranging charger built in. Always store the fixtures with full battery. Depleted batteries must be recharged immediately; otherwise fixture performance will suffer. Battery runtime will decreased time by time. Battery runtime may be slightly shorter than predicted due to different working enviroments. The fixture has a DC charging input. A normal charging time is about 5 hours. Battery capacity can be easily seen on the OLED display. It is recommended to charge the fixture at an ambient temperature between 0°C and 35°C. If fixture is charged but not in operation, please always keep the power switch “Off”. -
Page 10: Menu Map
User’s Manual Users can set up their fixtures to factory default. Follow below steps: - Continue pressing “Menu” till “Factory Reset” appears; - Scroll Up/Down to select “Yes”; - Press “Enter” to save your setting. Your fixture will go back to factory default, thus all your resettings will be erased. 4.3 Menu Map 4.4 DMX Addressing... -
Page 11: Wireless Dmx Setup
User’s Manual Each fixture must be given a DMX address so that the correct fixture responds to the correct control signals. This DMX address is the channel number from which the fixture starts to “listen” to the digital control information being sent out from the controller. This fixture has 3 DMX channel modes, 6, 8 and 13 DMX channels. To set up fixture DMX address, first select DMX channel mode. The highest DMX address for this fixture is 512. To set up fixture DMX starting address, follow the steps below: Switch on the fixture, press Menu till “Channel” appears; Press “Up” or “Down” button to select 6CH or 8CH or 13CH; Press “Enter” to confirm your select. Press “Menu” repeatedly to come back to “Address 001”; Set up DMX address by scrolling “Up”/” Down” button. Press “Enter” to save your setting. 4.5 Wireless DMX Setup This fixture can be controlled via wireless DMX system. Users need to pair the fixture to wireless DMX transmitter first. There is one wireless DMX indicator on the OLED display. This indicator shows status of wireless DMX connection. Indicator Status Description Fixture receiving wireless DMX signal from transmitter. Blue light on Blue light slow Fixture already connected to transmitter, but no signal coming flashing from transmitter. - Page 12 User’s Manual till you see “Wireless DMX”, press Up/Down to select “Clear ID” and press “Enter” to clear wireless DMX memory. Then the blue light will turn off in about 5 seconds. To pair fixture and a new transmitter, after clearing the fixture wireless DMX memory (make sure wireless DMX indicator is Off), press the pairing button on the transmitter, fixture indicator will start to fast flashing and then stay on, this means pairing succeeds.
-
Page 13: Dmx Signal Fail
User’s Manual 4.6 DMX Signal Fail To access the DMX signal fail setting, press the “MENU” button and use the “UP” and “DOWN” buttons to show FAIL on the OLED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between Hold, Auto mode or Blackout. Hold: Fixture will hold running current programs; Blackout: Fixture will become black out; Auto: Fixture will turn to Auto mode automatically. Press the “MENU” button to exit out of the above options. 5. OPERATION 5.1 DMX Control Mode This function will allow users to control individual fixture with a standard DMX 512 console. Below is fixture DMX Channel Chart. Channel DMX Value Channel Function Description Mode Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100... - Page 14 User’s Manual White 0-255 0-100% Yellow 0-255 0-100% Purple 0-255 0-100% 0-10 No function Strobe 11-255 Strobe from slow to fast 0-10 No function 11-30 R:100% G:0-100% B: 0 31-50 R: 100%-0 G100% B: 0 51-70 R:0 G:100% B: 0-100% 71-90 R: 0 G: 100%-0 B: 100% 91-110...
-
Page 15: Master/Slave Mode
User’s Manual 161-190 CMY colour changing Auto 191-220 RGBY colour changing 221-255 RGBYCMY colour changing Speed 0-255 Speed from slow to fast 0-10 No function 13 CH 11-90 Colour dimming 91-170 Colour changing Sound 171-252 Colour changing + Strobe 253-255 Colour dimming + Colour changing+strobe 5.2 Master/Slave Mode The fixture has a built-in wireless DMX transceiver inside. Fixtures can operate Master/Slave mode wirelessly. In Master/Slave mode, one fixture will work as Master fixture, other fixtures in the daisy chain will work in synchronization with the Master fixture. Please refer to “4.5.2 Pairing Between Mater/Slave Fixtures”. If you set your fixture as “Transmit”, it will work as Master unit, fixture(s) set as “Receive” will work as slave unit(S). -
Page 16: Ir Remote Control
User’s Manual Press “Menu” button until you see “Colour Mix”. Scroll “UP” or “DOWN” to select the color, then press “Enter” to confirm the color selection. Now press “UP” or “DOWN” to set color intensity. Press “ENTER” to save your setting. Press “MENU” to exit from current setup. When the fixture is switched off and then on again, the fixture will go back to what it was set at. 5.6 IR Remote Control This operation mode allows users to control the fixture with an infrared remote controller. The remote controller can help you to achieve almost all functions. To control your fixture with IR controller, please set up Wireless DMX to “Off”. To activate IR remote control, press “Menu” until “IR” appears, press “Up” or “Down” button and select “On”. Press “Enter” to save the setting. To control the fixture with this IR remote controller, make sure to point the controller directly to the IR receiving sensors on the product. Make sure there are no objects between the controller and the fixture. 1 - Set the fixture into blackout (LED on/off). 2 - Adjust auto, strobe & fade speed, sound sensitivity, DMX address, DMX channel, brightness etc. 3 - Run auto mode, use “Speed” button followed by the buttons to adjust auto speeds. 4 – Run sound program, use bottons to adjust sound sensitivity. 5 – Run strobe program, use buttons to adjust strobe speed. 6 – Set auto/fade speed, Press this button followed by buttons to adjust program speed. 7 – Set the fixture into master or slave mode. -
Page 17: Maintenance
User’s Manual 8 – Run fade mode. Use “Speed” button followd by buttons to adjust fade speed. 9 - Set DMX address. Pressthis button followed by to set up DMX address. Press this button again followed by to select DMX channel. 10 – Set the fixture in full brightness. Press this button followed by buttons to adjust brightness. 11 – Set the fixture in ECO mode. Press this button followed by buttons to turn ECO mode on/off. 6. MAINTENANCE 6.1 General Maintenance The operator has to make sure that the safety-related and machine-technical installations are to be inspected by an expert once a year in the course of an acceptance test. The operator has to make sure that safety-related and machine-technical installations are to be inspected by a skilled person once a year. The following points have to be considered during the inspection: - Make sure connections are clean and totally dry before linking equipments or supplying electric power. - All screws used for installing the fixture or parts of the fixture have to be tightly connected and must not be corroded. The fixture has optical lenses; users should clean the lenses periodically to optimize light output. The cleaning frequency depends on the environment in which the curtain system is installed. -
Page 18: Fuse Replacement
User’s Manual 6.2 Fuse Replacement In case fuse is blown, you need to replace it. Unplug the fixture from power, remove the 4 screw from the housing to find the fuse holder. Open the fuse holder by turning it anticlockwise; remove the blown fuse from the holder and replace it with the exact same type and rating one. Close the fuse holder by turning it clockwise to tighten it. Screw back the base to the housing. Always replace a blown fuse with another of the same type and rating. - Page 19 User’s Manual MEMO ：...
- Page 20 User’s Manual Wireless Battery Light USER’S MANUAL Dealer info: Copyright reserved Manual version: Ver. 1.0 Date: 20190321...
