AquaVolta® Elégance
Under the Counter Water Ionizer
Manual
by Karl Heinz Asenbaum

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elégance and is the answer not in the manual?

Questions and answers

Related Manuals for Aquavolta Elégance

Summary of Contents for Aquavolta Elégance

  • Page 1 AquaVolta® Elégance Under the Counter Water Ionizer Manual by Karl Heinz Asenbaum...
  • Page 2 2 – What is AquaVolta ® The brand name Aquavolta ® derives from the latin term for water (aqua) and the name of the inventor of the battery, Alessandro Volta. It stands for electro activated water. In Germany one originally spoke of electrolyte- water, afterwards of “activated water”.
  • Page 3 3 – Hydrogen – The fundamental concepts „I run on Hydrogen“. To see Hydrogen cars, out of which no emissions are emitted and only clear water drips out, is still seldom in our smog-laden cities. Yet there is no doubt that Hydrogen gas presents the most interesting form of alternative energies of the future.
  • Page 4 For a desired level of 0,5 to 1,3 mg/Liter, to reach already with a flow speed of 1-2 Liters per minute does the AquaVolta® Elégance water ionizer produce substantially more hydrogen than what can be dissolved in water in such a short time.

  • Page 5: Chapter Overview

    5 – Chapter overview • 06 - General safety instructions • 07 – Overview • 08 – Over the counter faucet • 09 – Faucet connections • 12 – Accessories • 10 – The operating modes - alkaline/acidic/purified • 11 – The interior filter •...

  • Page 6: General Safety Instructions

    6 – General safety instructions • Only use the device once you have read and understood • Do not place the device outdoors.
 the instruction manual. • Do not use the power charger if it got damaged
 • You are not allowed to use the device with water over 35 or the cable got kinked.
  • Page 7 7 – Overview Fuse Outlet for alkaline Holes for
 activated water wall mounting 3,15 A
 Cable Display + controller
 socket for faucet Filter
 cover Front side Back side Filling outlet Plug Acidic water outlet Acidic water outlet Cold water feed...

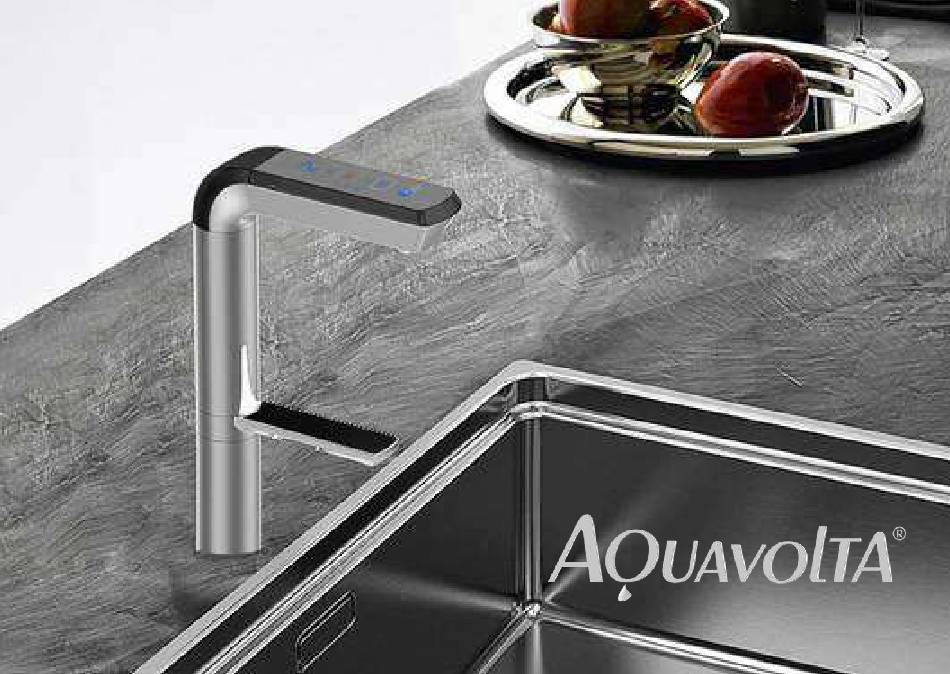

  • Page 8 08 – Over the counter faucet Swivelling double faucet with operating surface Display operating mode “Alkaline” switch Filter display “Acidic” switch DARC display “Filtered” switch Flow display Start/Stop button...
  • Page 9 9 – Faucet connections Filling outlet ¼ inch connector PE hose ¼‘‘. 1,5 m Securing
 5/16 inch
 Acidic water connector outlet Connection
 Alkaline water
 alkaline water connection nipple PE hose 5/16‘‘. 1,5 m Data cable 5/16 inch
 elbow connector Connection
 acidic water...
  • Page 10 10 – The operating modes - alkaline/acidic/purified To determine which type of water should flow from the upper dispensing spout: First select ALKALINE (A) or ACIDIC (B) or PURIFIED (C) (filtered only). Press several times to select the steps for A (4) and for B (2). The dispensing process starts and stops when pressing button D.
  • Page 11 11 – The interior filter The filter has a capacity for 3600 Liters.
 Independently of that, even with little use must the filter be exchanged after 6 months. This is a complex combination filter for all known pollutants in water.

  • Page 12: Filter Exchange

    12 – Filter exchange 8. Close filter cover. Reset filter display, 7. Switch device on and press 3-5 page 11 Minuten the PURIFIED button. Flush the filter and check for leaks.
  • Page 13 13 – Installation overview for installers Faucet Seal Securing nut Drill hole
 diameter 30 mm Securing nut Sink 5/16´´ hose for alkaline
 Data
 activated water Warm water cable corner valve Cold water
 corner valve Particle filter Water
 ¼´´ hose für Main supply ¼“...
  • Page 14 14 – Preparation of the device 1. The quick coupling for the hoses is done by pushing them firmly into the socket. Then they are sealed. 2. The quick coupling on the bottom of the device are closed with sealing caps. These caps have to be removed before installing.
  • Page 15 15 – Fitting the faucet (Specialist needed) 1. A hole with a diameter of 30 mm has Rubber seal! to be drilled for the double faucet close to the edge of the sink into the kitchen counter or the sink edge. Both Circular hole through outlets should allow water to flow into kitchen counter or...
  • Page 16 16 – Installation for the water supply (with a specialist) 1. When you have switched off the water supply, release at the 3/8 corner valve the supply line to the cold water supply of your sink. 2. Mount the angle shut off valve between the corner valve and the supply line to the cold water supply.
  • Page 17 17 – pH-measuring and optimal water flow setting 1. The pH value indicates the amount of H3O+ -ions found in the water. The fewer the water contains, the more alkaline it is. Alkaline activated water should be about 100 times more alkaline than tap water (pH 7).
  • Page 18 18 – Manual descaling The AquaVolta® Elégance is fully equipped with the DMRC-reverse flow system, which prevents calcification of the electrolysis cells lastingly. Nevertheless does alkaline activated water leave traces of limescale in the rest of the system, which have to be removed periodically. The descaling accessories consist of an electric descaling pump, with a soft hose and removal powder (citric acid), which you can buy as an organic limescale remover at any chemists.
  • Page 19 19 – Storing alkaline activated water 1. Next to its alkaline properties is the most important advantage of alkaline activated water the maximum amount of dissolved hydrogen. Hydrogen is a very volatile gas and because of its minimally small molecule size can only very dense materials like glass, HD Polyethylen or stainless steel impede it from escaping water in a few hours.

  • Page 20: Troubleshooting

    20 – Troubleshooting Symptom Check Possible solutions No electricity. Start/Stop Properly plugged in? Fuse Plug in correctly. Change the fuse. does not light up defect? • Corner valve or angle shut • Open valves. Even though Start/Stop lights up, very little or no off valve closed? •...
  • Page 21 21 – External cleaning / storage. Technical data Wipe the outside of the device with a moist, soft cloth.
 Store the device at room temperature and do not place in direct sunlight. If you have not used the device in over a week or after transporting, the device has to be flushed for 3-5 minutes (PURIFIED mode).
  • Page 22 • Drink up to 0,3 l of water per 10 kg of bodyweight daily. The AquaVolta® Elégance can store enough hydrogen in the water for it to be suitable for laying • foods in which are then freshened up. For that we advise to always use Alkaline Level 4.

  • Page 23: Disposal Instructions

    23 – Legal disclosure An instruction book by Aquavolta UG (limited liability). Georgenstrasse 110, 80798 Munich.
 Author and copyright: Karl Heinz Asenbaum. Email: aquavolta@email.de IMPORTANT NOTES
 This instruction book contains important information. Read the whole book and if necessary repeatedly. Do not throw it away in case you wish to read it again!
...
  • Page 24 (invoice). München, 01.06.2017 Manufacturer (main importer and service centre): Aquacentrum, Owner: Yasin Akgün, Fraunhoferstr. 13,
 80469 Munich, Germany. www.aquacentrum.de
 www.aquacentrum.com Aquavolta® is protected with the German Department for Patents and Brand Names under file number: 30 2015 207 850.
