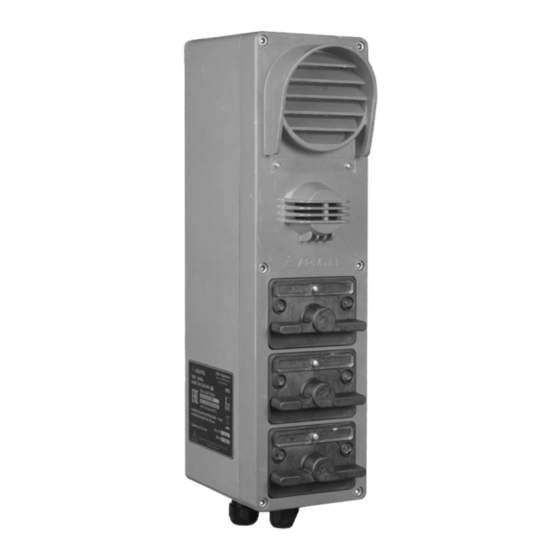

ARMTEL DWEx User Manual

Digital loud-speaking explosion proof call station
Hide thumbs
Table of Contents

Advertisement

Quick Links

DWEx Digital Loud-Speaking
Explosion Proof Call Station
ARMT.665230.006UM
User Manual
Document version 8
2020
26.30.11.190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWEx and is the answer not in the manual?

Questions and answers

Related Manuals for ARMTEL DWEx

Summary of Contents for ARMTEL DWEx

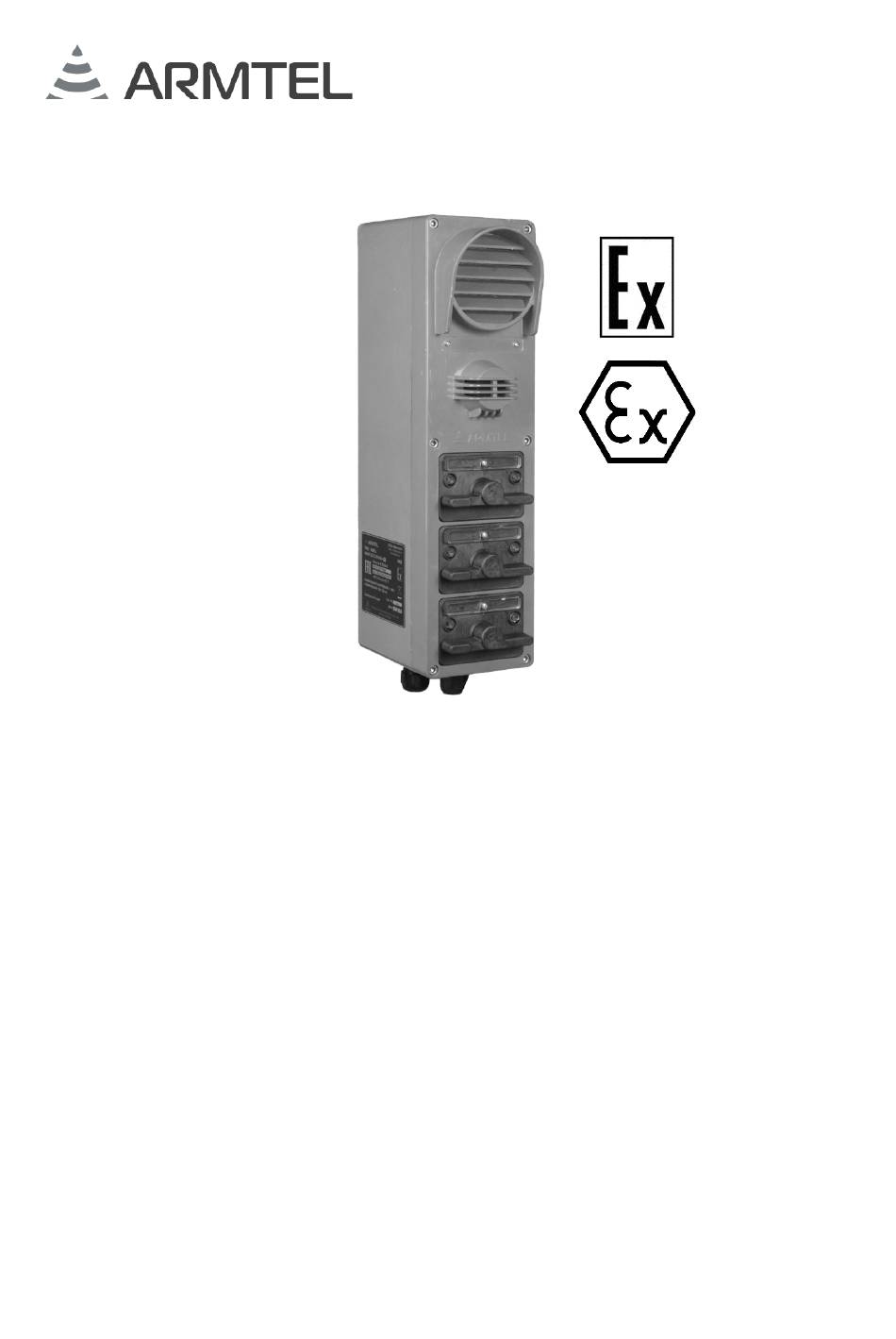

  • Page 1 DWEx Digital Loud-Speaking Explosion Proof Call Station ARMT.665230.006UM User Manual Document version 8 26.30.11.190 2020...
  • Page 2 © Armtel info@armtel.com...

  • Page 3: Introduction

    DCN and IPN manufactured by Armtel, Russia. Short name of product – DWEx. DWEx is designed for employment in explosion proof zones of the premisses and external installations in accordance with certain explosion proof marking, requirements ТR ТS 012/2011, GOST IEC 60079-14-2013, chapter 7.3 «Regulations for Electrical Installation»...

  • Page 4: Safety Provisions

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual SAFETY PROVISIONS During installation and operation of DWEx, observe safety precautions laid out in local regulations on electrical safety. To avoid electric shock, do not: − operate the product with a damaged power or communication cable;...

  • Page 5: Table Of Contents

    4 SHELF AND SERVICE LIFE, DISPOSAL ........................33 4.1 Repair ..................................33 4.2 Storage ..................................33 4.3 Transportation ................................ 33 4.4 Disposal ..................................33 APPENDIX А (reference) External appearance of DWEx ..................34 APPENDIX B (reference) Connection DWEx......................36 armtel.com page 3/40 info@armtel.com...

  • Page 6: Description And Operation

    DWEx equipment can be used at sites of steel, chemical, oil and gas processing industries, including metal and woodworking areas, other similar sites where standard PA/GA equipment is not applicable.
  • Page 7 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual Table 1 – Versions of DWEx (continuation) Identification Name Interchangeable modules weight, − Two-way toggle 1 pcs.; DWEx for 2 connections with − Dial pad 1 pcs.; ARMT.665230.006-06 handset, dial pad and −...
  • Page 8 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual Table 1 – Versions of DWEx (end) Identification Name Interchangeable modules weight, − Pushbuttons 1 шт.; ARMT.665230.006-20 DWEx for 8 connections − Plug 2 pcs. − Pushbuttons 2 pcs.; ARMT.665230.006-21 DWEx for 16 connections −...
  • Page 9 ISO1183 1,68 g/сm flexural strength ISO178 110 MPa Coverage ogranosilicate composition "Antistatic OS", color according RAL2004 − orange. To ensure the protection degree IP66 DWEx unit in compliance with requirements of standards GOST 14254-2015 (standards – МЭК 529,...
  • Page 10 The complete structure of DWEx functions performed, their implementation and configuration features may differ depending on the type of the communication system, its configuration and software version. DWEx programming is executed using the DCN, IPN or system administrator's software. Description of the features of DWEx application in the systems IPN 1.1 and DCN, as well as programming techniques are given in the operational...

  • Page 11: Main Specifications

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual 1.2 Main specifications Main specifications are provided in Table 2. Table 2 – Main specifications of DWEx (beginning) Parameters Value Rated voltage, V Supply voltage range, В from -36 to -60 Quiescent current under rated voltage, maximum, mА...
  • Page 12 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual Table 2 – Main specifications of DWEx (end) Parameters Value «1Ex d e ib IIC T6 Gb Х» Explosion-proof marking as per GOST 31610.0-2014 «Ex tb ib IIIC T85 °C IP66 Db»...

  • Page 13: Scope Of Supply

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual 1.3 Scope of supply Scope of supply of DWEx is given in Table 3. Table 3 – Scope of supply Quanty- Identification Name Note ty, pcs. DWEx Digital Loud-Speaking Explosion ARMT.665230.006*...

  • Page 14: Design

    In lower part of the DWEx cover, depending on the version, from one to three two-way toggle modules (6) are installed.
  • Page 15 Information on the manufacturer, marking, warning notes and main parameters of the product are given in the nameplate (12). Cables for connection of DWEx unit are input through the sealing cable glands type 8161/7 М25×1,5 (8) with outer cable diameter from 9 to 17 mm and 8161/7 М20×1,5 (11) with outer cable diameter from 7 до...
  • Page 16 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual The key and indication board (KIB board) is fixed by supports on inside of the cover The board has the following components (see Figure 3): Figure 3 – External appearance of KIB board The board has the following components: –...
  • Page 17 – 15 – integrated microphone sensitivity control («MIC.INT»); – 16 – handset microphone sensitivity control («MIC.HS»); – 17 – socket «X7» for DWEx main board; – 18 – switch «SW8» for switching of integrated microphone amplifier: – MIC – integrated microphone amplifier is OFF;...
  • Page 18 Inside the DWEx enclosure (see Figure 4), an explosion-proof box DKV-3 manufactured by "Armtel" LLC is fixed on the posts. In the upper part of the DKV-3 box there is an additional amplifier (5), in the lower part of the box there is a block of main boards (4). The explosion- proof DKV-3 box with the main boards block and the additional amplifier is connected to the terminal box (3) and to the KIB board (6).
  • Page 19 In the latter case, the incoming message is broadcast simultaneously by the integrated and auxiliary amplifiers, but only before pressing of DWEx key to respond the call. After the response, the auxiliary amplifier is turned off, and the calls are only broadcast to the integrated amplifier.

  • Page 20: Explosion-Proof

    8161 manufactured by STAHL and explosion-proof terminal blocks STS 2.5 TWIN manufactured by Phoenix Contact. 1.5.3 Explosion protection type "d" in DWEx is provided by putting its electrical circuits in an explosion-proof shell made in accordance with GOST IEC 60079-1-2011 (EN 60079-1:2014).
  • Page 21 The temperature range for the Ex-cable glands equals or higher than the temperature range for DWEx unit. Protection rate of the Ex cable glands of the enclosure as per ГОСТ 14254-2015, EN 60529:1991/A2:2013 is no less than the protection rate of DWEx unit.
  • Page 22 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual – used cable type and method of laying cable lines satisfy the requirements of Chapter 7.3 PUE and GOST IEC 60079-14-2013 (EN 60079-14:2012). Explosion-proof marking as per EN 60079-0:2012 – «II 2 G Ex db eb ib IIC T6 Gb» and «II 2 D Ex tb IIIC T85 °C IP66 Db»;...

  • Page 23: Intended Use

    2.2 Explosion-proof operation 2.2.1 When operating DWEx, must be guided by Chapter 3.4 of the "Rules for the Technical Operation of Consumer Electrical Installations", Chapter 7.3 PUE, GOST IEC 60079- 14-2013 (EN 60079-14:2012), GOST IEC 60079-17-2013 (EN 60079-17:2014) and other documents in force at the facility.

  • Page 24: Safety Precautions

    требованиям ГОСТ 12.2.007.0-75 и IEC 61140. Класс электрозащиты – II по ГОСТ 12.2.007.0-75 (IEC 61140-2012). During installation and operation of DWEx, observe safety precautions laid out in local regulations on electrical safety. To avoid electric shock, do not: − operate the product with a damaged power or communication cable;...

  • Page 25: Preparation For Use

    1. Removing DWEx and connection cables from the shipping container. 2. Removing DWEx and connection cables from the customer package. 3. Check the scope of supply of DWEx according to product passport. 4. Inspect DWEx enclosure visually, no mechanical damages (cracks, dents, etc.) on the enclosure, cover or controls are allowed.

  • Page 26: Installation, Connection And Dismantling

    2.5.1.7 To protect from mechanical damage and for explosion safety requirements, cables connected to the DWEx will be fixed in the cable glands to make them free of tension or torsion. To ensure explosion-resistance of input devices, unused cable gland must be sealed by the cable gland plug provided.

  • Page 27: Installation Dwex

    Before installing the unit at the workplace make the markings in accordance with Figure 6. The height of the DWEx attachment to the wall is determined so that the microphone is at the level of the person's mouth, i.e. 1500 -1600 mm from the floor elevation.
  • Page 28 THE ENCLOSURE, FURTHER DESCRIBED WORKS SHOULD BE CARRIED OUT SO THAT ENSURE INTEGRAL AND INTACT CONNECTIONS. DISCONNECTION OF THE SOCKET LOCATED ON THE COVER IS ALLOWED! 4. Connect the cable lines to DWEx unit according to 2.5.3. page 26/40 armtel.com ©...

  • Page 29: Connection Of Dwex Unit

    (flash lamp, etc.), if applied. 9. Turn on the power supply source. 10. When the power is turned on, DWEx unit is automatically initialized. 11. After the initialization the unit is ready for operation. To configure the unit (see item 2.6.1).

  • Page 30: Dismantling

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual ATTENTION: IT IS NOT ALLOWED TO CONNECT EXTERNAL POWER SUPPLY SOURCE 48 V IF THE PHANTOM POWER SUPPLY BRIDGES ARE INSTALLED! IT CAN DAMAGE THE EQUIPMENT! 2.5.4 Dismantling − disconnect the power supply;...

  • Page 31: Operation

    DWEx unit enables to realize different communication modes, depending on the possibilities and configuration of the communication system. An individual function can be assigned to each DWEx key / key, for example, a call of a subscriber or a group, reproduction of a speech fragment.
  • Page 32 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual pressing the key to transfer voice from the unit microphone to the telephone set. After releasing the key, the direction of voice transmission changes to the opposite, from the telephone to the unit. Thus, the conversation does not require auxiliary manipulations from the side of the duplex subscriber.

  • Page 33: Troubleshooting

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual 2.6.3 Troubleshooting Possible problems and their solutions are given in Table 6. Table 6 – Possible problems of DWEx and their solutions Problem Possible causes Solutions Check power supply to the...

  • Page 34: Maintenance

    − Clean, if necessary, terminal strips and the board from dust by air flow (dirt cleaned by air flushing shall not get into other units) with DWEx enclosure cover being removed; ATTENTION: DWEx COVER REMOVAL AND AIR FLUSHING ARE ONLY ALLOWED IF DW ECHANGE IS DEENERGIZED! Approximate maintenance time is 0,5 hour.

  • Page 35: Shelf And Service Life, Disposal

    4 SHELF AND SERVICE LIFE, DISPOSAL 4.1 Repair No scheduled repair work is provided for DWEx. Unscheduled repair shall be performed by manufacturer at the request of the User. The place, time, procedure and cost of the work shall be agreed with the manufacturer in advance.

  • Page 36: Appendix А (Reference) External Appearance Of Dwex

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual APPENDIX А (REFERENCE) EXTERNAL APPEARANCE OF DWEX ARMT.665230.006 ARMT.665230.006-01 ARMT.665230.006-02 ARMT.665230.006-03 ARMT.665230.006-04 ARMT.665230.006-17 ARMT.665230.006-18 ARMT.665230.006-19 ARMT.665230.006-20 ARMT.665230.006-21 ARMT.665230.006-05 ARMT.665230.006-06 ARMT.665230.006-07 ARMT.665230.006-08 ARMT.665230.006-09 ARMT.665230.006-22 ARMT.665230.006-23 ARMT.665230.006-24 ARMT.665230.006-25 ARMT.665230.006-26 page 34/40 armtel.com © Armtel...
  • Page 37 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual ARMT.665230.006-10 ARMT.665230.006-11 ARMT.665230.006-12 ARMT.665230.006-13 ARMT.665230.006-14 ARMT.665230.006-27 ARMT.665230.006-28 ARMT.665230.006-29 ARMT.665230.006-30 ARMT.665230.006-31 ARMT.665230.006-15 ARMT.665230.006-16 ARMT.665230.006-32 ARMT.665230.006-33 Figure A.1 – External appearance DWEx armtel.com page 35/40 info@armtel.com © Armtel...

  • Page 38: Appendix B (Reference) Connection Dwex

    DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual APPENDIX B (REFERENCE) CONNECTION DWEX The assignment of the terminal block DWEx is given in Table B.1. Table B.1 – The assignment of the terminal block of DWEx Pin No Circuit Identification 25W_ ОUT_1...
  • Page 39 + U_POWER - U_POWER Figure B.2 – Connection of Uk interface line and use of “phantom” power supply Note – Power supply of DWEx versions with auxiliary amplifier 25W by “phantom” power supply circuit is prohibited. armtel.com page 37/40 info@armtel.com...
  • Page 40 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual Connection of the external power supply line U_POWER to the terminal block is executed according to Figure B.3 with the polarity observed. Terminal block DWEx Pin No Central + Ua exchange...
  • Page 41 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual NOTES armtel.com page 39/40 info@armtel.com © Armtel...
  • Page 42 DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION User Manual page 40/40 armtel.com © Armtel info@armtel.com...
  • Page 43 © Armtel...
  • Page 44 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: 12 building 1, Zaporozhskaya street, office 1/2, Saint Petersburg, 192012, Russia TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
