TL3500H 36W CFL FLOOD LIGHT INSTRUCTION
Read all instructions before proceeding w i t h installation.
We strongly recommend that this floodlight should be installed
SPECIFICATONS:
Power Source: 220-240V AC 50Hz
Loading: 36W
This Halogen Floodlight has three wires:
1.
Brown-Live
Blue-Neutral
Connect these wires to 220-240 volt AC power source.

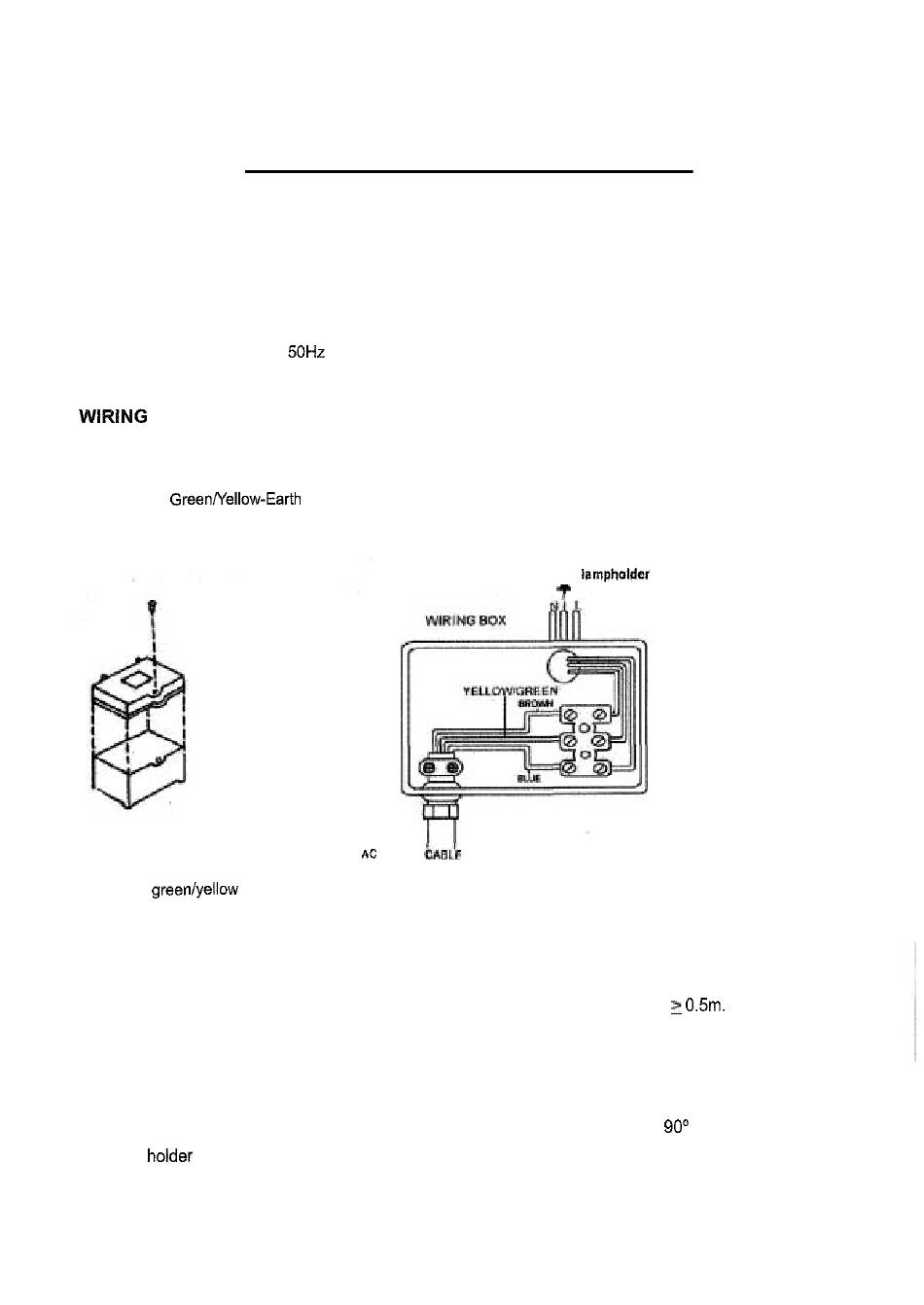

2. Refer to the following diagram for wiring connection using the terminal block
3. Use the greeniyellow wire to earth the fixture.
4. Double check the connections afler wring as errors may damage the lamp or cause a fire hazard.

MOUNTING POSITION:

-The rear and two sides of the lamp should be a distance o f 50mm from the mounting surface
-
The distance between the front o f the glass and the illuminated surface must be
-
The place where the lamp

LAMP TUBE FITTING:

Unscrew the bolt and open the glass holder. Turn the pin slots of the tube holders on both ends vertically (see
figure.2); While the tube pins are in the tube holders on both ends, turn the tube at 90° (see figure. 3). Close
the glass holder with the bolt. The tube cannot be fitted with bare hands.
TO AC POWER
i s mounted should be kept
by
a qualified electrician.
Connect to lampholder
dry
and clean.
