TLC LEDLITE LTFL10PIR Installation Sheet

Installation Sheet LTFL10PIR
10 WATT PIR LED Floodlight
Please read these instructions before commencing installation
and retain them for future reference.
IP44

SAFETY PRECAUTIONS

• Switch off the power source before installation.
• Install a minimum distance of 1m away from ground.

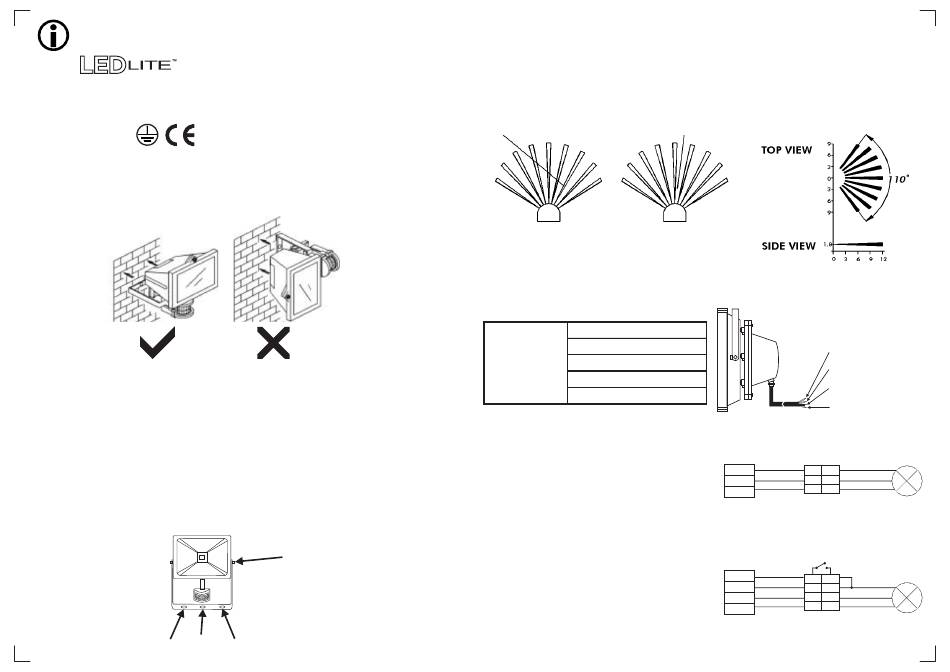

• The unit must be installed in the horizontal position (Figure 1a), not vertically (Figure 1b).
1a
HORIZONTAL
Figure 1a & 1b

INSTALLATION INSTRUCTIONS

1. If in doubt consult a professional electrician.
2. Unscrew the floodlight from its wall bracket as indicated in Figure 2, part 4.
3. Line up the wall bracket holes and drill three holes into the wall. Use appropriate size rawl
plugs and screws to fix the bracket to the wall.
4. Screw the floodlight on to its wall bracket and tighten firmly, angling the light as required.
5. When connecting the power cable into the PIR sensor housing, please follow the wiring
instructions opposite.
6. After connecting the power supply, the installation has been completed.
Figure 2
1 2
15-07-13
110/240V 10W
1b
VERTICAL
4
3

CHOOSING A MOUNTING LOCATION

• For the best results, fix your sensor on a solid surface, 1.8~2.5M above the ground.
• For outdoor installation, a location under eaves is preferable.
• Avoid aiming the motion sensor at pools, heating vents, air conditioners or objects that may
change temperature rapidly.
• Do not allow sunlight to fall directly on the front of unit.
• Try to avoid pointing the unit at trees or shrubs or where the motion of pets may be detected.
• When choosing the mounting position consider that the sensor is more sensitive to motion across
the detection field (A) and less sensitive to motion directly towards the sensor (B)
• Select a location for the unit based on the coverage angles shown in Figure 4.
A
SENSOR SENSOR
MORE SENSITIVE LESS SENSITIVE
SENSITIVITY TO MOTION
Figure 3

WIRING INFORMATION

240V Input (Figure 5a)
Brown = Live
Wired with four
Black = Switch Live
core (w/o plug)
Grey = Neutral
Green/Yellow = Earth
STANDARD CONNECTION
The fitting comes pre wired with a 4 core cable to
facilitate a manual override connection as an option.
Should you wish to connect the fitting as a standard
fitting please ignore the black core and connect the
other three cores as follows: Green/yellow should be
connected to earth; grey core to the neutral power input
and brown to the live power input. (see Figure 5b)
As such, referring to Fig 5a simply cancel the black
switch live connection.

MANUAL OVERRIDE FACILITY

A manual override facility utilizes a second live feed
in order to bypass the sensor thus allowing one to
permanently switch on your flood light.
In order to manually override the PIR sensor using an
in line switch, the Brown core (Live) is being used
as a permanent feed to the sensor and the Black core
(Switch Live) to be utilized for the switch feed.
(see Figure 5c)
B
UNIT (M)
COVERAGE ANGLES
Figure 4
Brown = Live wire - L
Black = Switch Live wire - SL
Grey = Neutral Wire - N
Green/Yellow = Earth wire - E
240V Input Figure 5a
L
Live
L L'
N
N N
Neutral
E E
Earth
E
Standard wiring Figure 5b
S1
Switch Live SL
SL L'
L
Live
L L'
N
N N
Neutral
E E
Earth
E
Manual Override wiring Figure 5c
(Figure 3).
LED
Floodlight
LED
Floodlight
