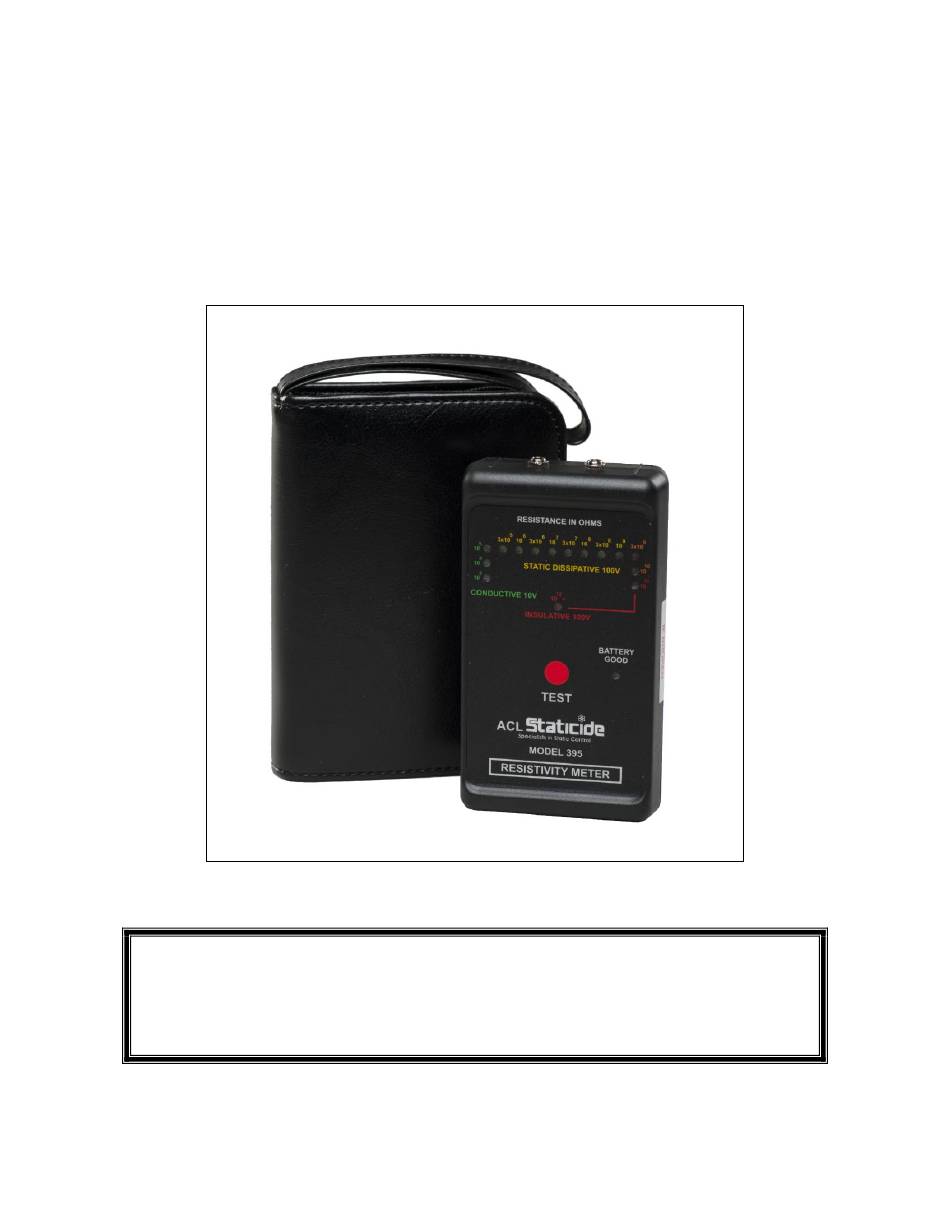

ACL 395 Operation Manual
Rev. September 26, 2019 MKB
ACL 395 Resistivity Meter
OPERATION MANUAL
Meter is warranted for one year from the date of purchase on parts and labor.
Calibration is recommended every 12 months.
Page 1 of 14
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com
Advertisement
Related Manuals for ACL Staticide 395
Summary of Contents for ACL Staticide 395
- Page 1 ACL 395 Operation Manual Rev. September 26, 2019 MKB ACL 395 Resistivity Meter OPERATION MANUAL Meter is warranted for one year from the date of purchase on parts and labor. Calibration is recommended every 12 months. Page 1 of 14 GlobalTestSupply www.

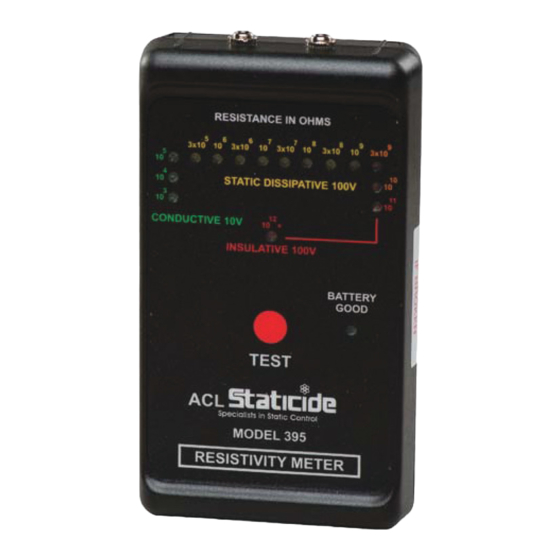

- Page 2 Rev. September 26, 2019 MKB ACL 395 Resistivity Meter The ACL 395 is a lightweight, pocket-sized, auto-ranging surface resistivity meter. It is designed to test conductive, dissipative, and insulative surfaces for electrical resistivity according to the ESDA’s parallel resistivity probe method DIN EN 100 015/1 & ASTM D257.
- Page 3 The ACL 395 Resistivity Meter is an easy-to-use tester for measuring surface resistivity. When used with the ACL 396 Accessory Kit, the ACL 395 Resistivity Meter is a dependable audit kit for conductive and dissipative surfaces. This meter is designed for use in all facets of material...
-
Page 4: Test Voltage
ESDA standardized the test procedures so that lower volts could be used within specific ranges. The ACL 395 meter uses a 9-volt battery. Some meters with 9-volt batteries do not give the accuracy needed to perform the tests, especially at values higher than 10 . -
Page 5: Recording Data
The rails on the ACL 395 are made of conductive rubber. Soft rubber rails provide the highest level of surface contact for greater accuracy. -
Page 6: External Probes
ACL 395 Operation Manual Rev. September 26, 2019 MKB When the measurement is taken between the meter’s two rubber rails, the meter will indicate the surface resistivity of the material being tested. A. Prior to testing, make certain that surfaces to be tested are clean and free of contaminants. - Page 7 ACL 395 Operation Manual Rev. September 26, 2019 MKB By connecting the 5-lb probes to the ACL 395’s sockets, it is possible to measure Resistance Point to Point (RTT), Resistance to Ground (RTG), and Volume Resistance. Using these external probes will allow compliance with various standards including ANSI/ESDA S4.1 for Worksurface –...
- Page 8 In each RTT test, the 5-lb probes are placed three feet apart (36 inches). Connect the test leads to the meter. Attach a 5-lb probe to the end of each lead and place three feet apart as indicated below. Press and hold the “TEST” button on the ACL 395 meter until a value is displayed. RTT #1...
- Page 9 ACL 395 Operation Manual Rev. September 26, 2019 MKB (RTG) EASURING ESISTANCE TO ROUND RTG measurements can be used for the evaluation of floors, chairs, carts, work surfaces and other ESD-controlled materials and products. Keeping a record of test results for temperature, humidity and electrical properties will provide a reference.
- Page 10 ACL 395 Operation Manual Rev. September 26, 2019 MKB XAMPLE OF EASURING ISSIPATIVE ABLE A. To test RTG on a workstation, connect the first lead to the meter and to a 5-lb probe. Place the probe on the work surface. Connect the second lead to the meter and to a groundable point (RTGP).
- Page 11 ACL 395 Operation Manual Rev. September 26, 2019 MKB Volume Resistance Measurement Volume Resistance measures the electrical path through a material. Connect one end of each of the banana test leads into the sockets of the meter. Connect the other end of the test coil cords into the 5-lb probes.
-
Page 12: Specifications
ACL 395 Operation Manual Rev. September 26, 2019 MKB ACL 395 C ALIBRATION NSTRUCTIONS This meter should be checked every twelve months. There are no internal parts to adjust. To verify if the tester is within specification use a decade box or standard set. Repairs can be obtained by contacting ACL, Inc. - Page 13 ACL 395 Operation Manual Rev. September 26, 2019 MKB QUIPMENT * Resistance Decade Box * Test Leads: monaural plug to banana plug At minimum, a resistance decade box with a range of from 1 kilohm (10 ) to 999 megohms (10 is required.
- Page 14 ACL 395 Operation Manual Rev. September 26, 2019 MKB 3. If using a variable decade box, the changeover point between decades can be verified by increasing the resistance according to the chart below. Meter LED Change over point Change Over Point...
