ACL 300B Operation Manual
Rev. 6/9/10 KCB

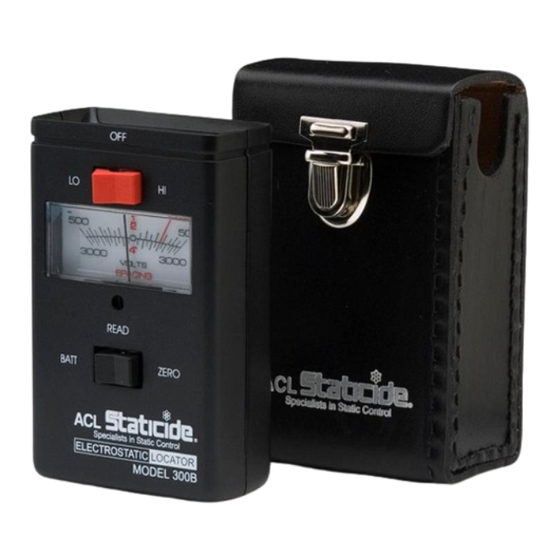

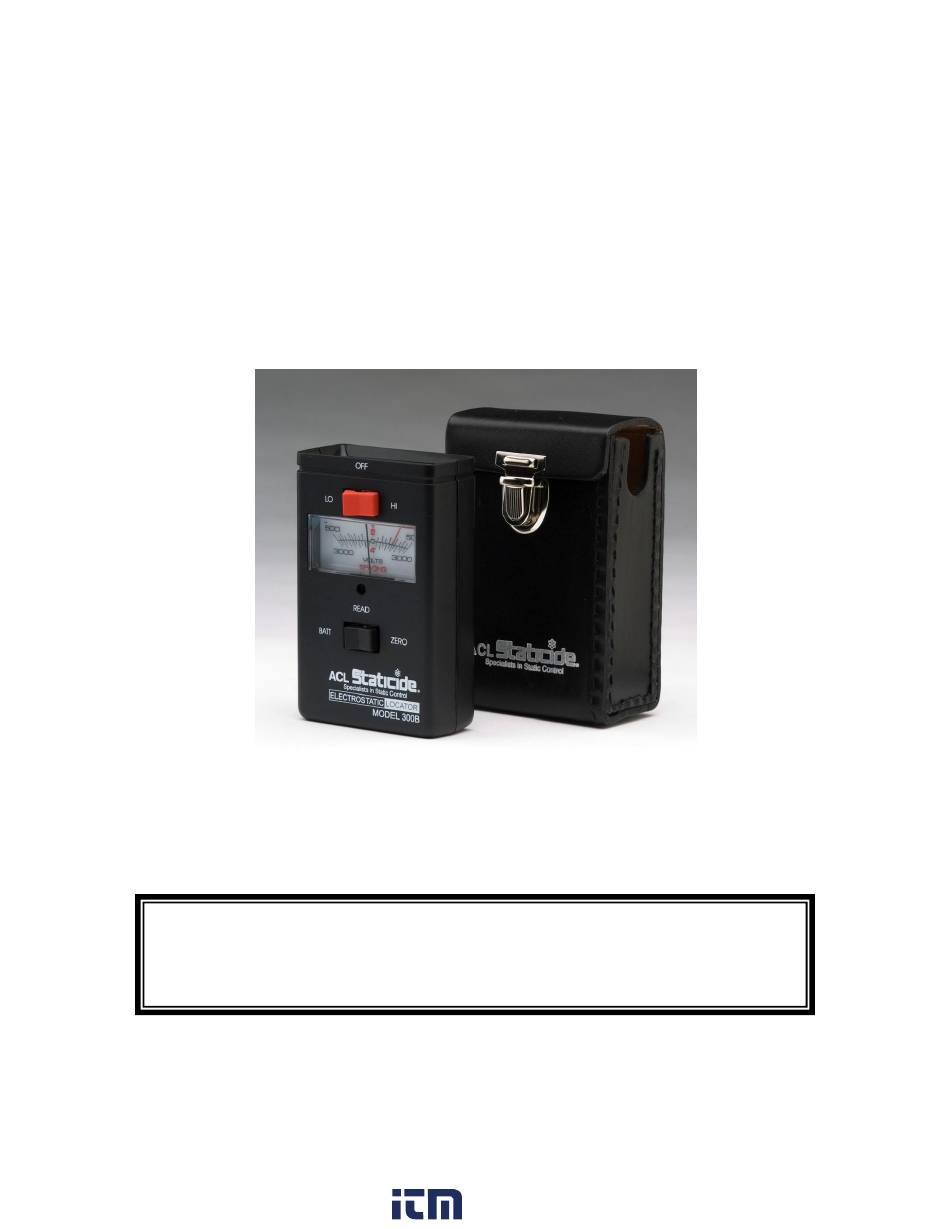

ACL 300B Precision Static Locator
OPERATION MANUAL
Meter is warranted for one year from the date of purchase on parts and labor.
Calibration is recommended every twelve months.
Page 1 of 5
1.800.561.8187
information@itm.com
www.
.com
Advertisement
Table of Contents
Related Manuals for ACL Staticide ACL 300B
Summary of Contents for ACL Staticide ACL 300B
- Page 1 ACL 300B Operation Manual Rev. 6/9/10 KCB ACL 300B Precision Static Locator OPERATION MANUAL Meter is warranted for one year from the date of purchase on parts and labor. Calibration is recommended every twelve months. Page 1 of 5 1.800.561.8187 information@itm.com...
- Page 2 • Option carrying case available (part# CS13) INTRODUCTION The ACL 300B is a high-quality, portable, non-contact voltage meter. When used properly, it will consistently produce accurate readings with ease and will provide years of trouble-free operation. This meter’s accuracy is dependent upon three factors: 1.
- Page 3 ACL 300B Operation Manual Rev. 6/9/10 KCB Note: Distance is measured from the front surface of the electrode OR the corresponding edge of the groove surrounding the case (forward of the red switch). Static charges should be interpreted as follows:...
-
Page 4: Before Using
2. Rub balloon or plastic vigorously on arm. 3. Using free hand, press red switch on ACL 300B to the left in LO position. 4. Pointing ACL 300B away from balloon or other charged objects, press black BATT/ZERO switch twice to the right to zero meter. -
Page 5: Calibration Instructions
½" from the electrode of the unit under test. TEST PROCEDURE 1. Connect the output of the Reference Supply to the test plate and the case (of the ACL 300B) to the low side of the Reference Supply or ground.
