Summary of Contents for 3M DBI Sala Rollgliss
- Page 1 Rollgliss ANSI Z359.4 - 2013 Rescue-Positioning Device USER INSTRUCTIONS 5902114 R © 3M 2020...
-
Page 6: Safety Information
Avoid surfaces and objects that can damage the user or equipment. Ensure there is adequate fall clearance when working at height. Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the equipment. -
Page 7: Product Description

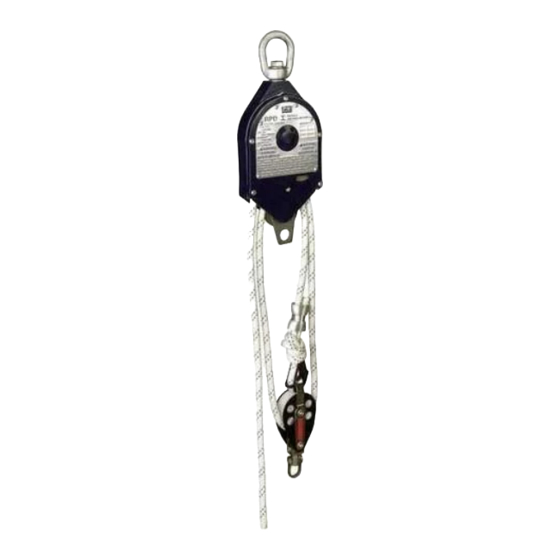

The user must read and follow the manufacturer’s instructions for each component of the complete system. PRODUCT DESCRIPTION: Figure 1 illustrates the 3M™ DBI-SALA® Rollgliss™ Rescue-Positioning Device. DBI-SALA rescue and positioning devices are designed to be components of a rescue-positioning system. This equipment is used for applications where personnel need to be raised or lowered over a vertical distance. - Page 8 Table 1 – Specifications Component Specifications: Figure 2 Reference Component Specifications Swivel Material: Aluminum/Steel Labels Material: Plastic Indicator Flag Width: 1/2 in. (1.27 cm) Housing Material: Aluminum Override Ferrule Material: Stainless steel Material: Kernmantle rope lifeline, braided polyester cover with nylon filament core Diameter: 3/8 in.
-
Page 9: Product Application
AFTER A FALL: If the device is subjected to the forces of arresting a fall, it must be removed from service immediately, clearly tag it “DO NOT USE”, and then either destroyed or forwarded to 3M for replacement or repair. - Page 10 MAKING CONNECTIONS: All connections must be compatible in size, shape, and strength. See Figure 4 for examples of inappropriate connections. Do not attach snap hooks and carabiners: To a D-ring to which another connector is attached. In a manner that would result in a load on the gate. Large-throat snap hooks should not be connected to standard- size D-Rings or other connecting elements, unless the snap hook has a gate strength of 3,600 lbf (16 kN) or greater.
-
Page 11: Installation
“Inspection and Maintenance Log” (Table 2). If inspection reveals an unsafe or defective condition, do not use the device. Remove the device from service and destroy, or contact 3M regarding replacement or repair. BODY SUPPORT: When using the Rescue-Positioning Device, it is recommended that a work-seat or boatswain’s chair be used. - Page 12 DEFECTS: If inspection reveals an unsafe or defective condition, remove the Rescue-Positioning Device from service immediately and tag it “DO NOT USE”. Do not attempt to repair the device. Only 3M or parties authorized in writing by 3M may make repairs to this equipment.
- Page 13 SERVICE: Only 3M or parties authorized in writing by 3M may make repairs to this equipment. If the Rescue-Positioning Device has been subject to fall force or inspection reveals an unsafe or defective conditions, remove the system from service and destroy. Rope replacement, as well as additional maintenance and servicing procedures, must be completed by a factory authorized service center.
- Page 14 Table 2 – Inspection and Maintenance Log Inspection Date: Inspected By: Component: Inspection: User Competent (See Section 5 for Inspection Frequency) Person Rescue-Positioning Inspect hardware for cracks, sharp edges, deformation, corrosion, Device chemical attack, excessive heating, alternation, or excessive wear. Inspect (Figure 2) loose fasteners and bent or damaged parts.
- Page 15 Corrective Action/Maintenance: Approved By: Next inspection due: Date: Corrective Action/Maintenance: Approved By: Next inspection due: Date: Corrective Action/Maintenance: Approved By: Next inspection due: Date: Corrective Action/Maintenance: Approved By: Next inspection due: Date: Corrective Action/Maintenance: Approved By: Next inspection due: Date: Corrective Action/Maintenance: Approved By: Next inspection due:...
- Page 16 LIMITED REMEDY: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M’s control.
