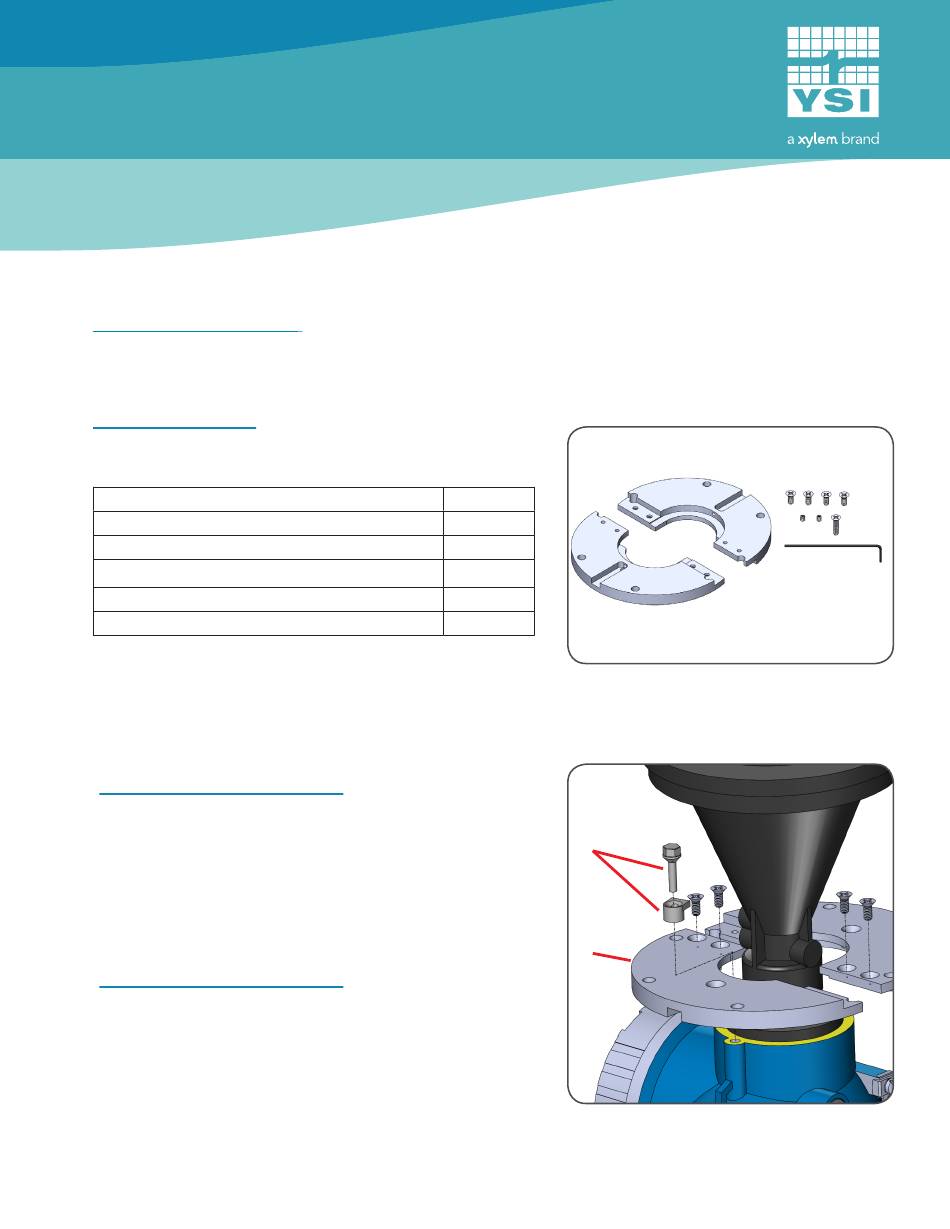

MOUNTING INSTRUCTIONS
NILE RADAR MOUNTING FLANGE
Item # Nile FL
Thank you for purchasing the new WaterLOG Nile radar level sensor! This is the mounting instructions
for the Nile Radar Mounting Flange. For more detailed information regarding the Nile radar sensor
visit
www.waterlog.com/nile.
our products and services. We truly value your input.
1
What's In The Box
Please contact YSI customer service immediately if any
expected items listed are not in the box.
Standard Items
Nile Flange Plates (Symmetrical)
8-32 x 5/16 Screw
6-32 Set Screw
Hex Key
M4 x 18MM Screw
2

Remove Bolt

Remove the hex bolt and radar cone retaining clip
from radar housing as shown.
3

Secure Screws

Mate the two symmetrical flange plates around the
narrow neck of the radar horn, and secure with four
8-32 machine screws.
Please contact us at any time with your comments and feedback about
Quantity
2
4
2
1
1
Nile Radar Sensor Mounting Flange Kit
2
3
Remove Hex Bolt and Retaining Clip,
Assemble Flange
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YSI Nile FL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xylem YSI Nile FL

  • Page 1 MOUNTING INSTRUCTIONS NILE RADAR MOUNTING FLANGE Item # Nile FL Thank you for purchasing the new WaterLOG Nile radar level sensor! This is the mounting instructions for the Nile Radar Mounting Flange. For more detailed information regarding the Nile radar sensor visit www.waterlog.com/nile.
  • Page 2 Slide Flange Slide assembled Flange over the base of the Radar cone. Align Mount Align one mounting hole of the assembled Flange with the threaded boss in the Radar housing. Secure Flange Insert M4 Screw Insert M4 Screw into housing boss as shown and tighten to “finger tight”.
