- Page 1 Valve Controller Installation, Operating, & Maintenance Instructions 98607000 REV-rel 1-574-295-8330 www.elkhartbrass.com...
-
Page 2: Table Of Contents
Automatic Valve Position Calibration for APEX-S . . . . . . . . . . . . . . . . . - Page 3 Figure 7. APEX-S 1:1 Wiring Connections ........
-
Page 4: Introduction

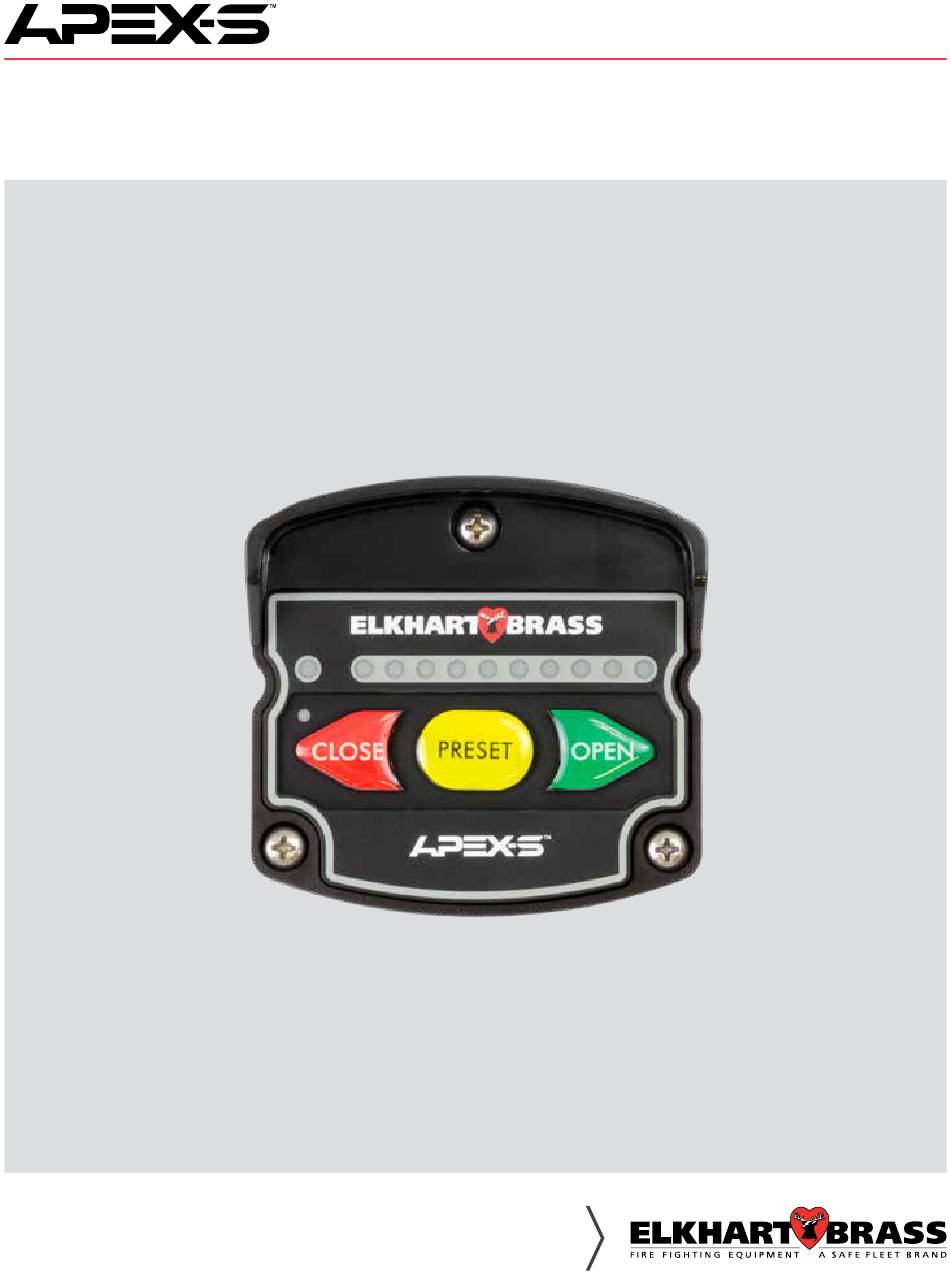

INTRODUCTION Overview The APEX-S electric valve controller is designed with precision and ease of use in mind. Rugged design withstands the demands of outdoor apparatus use. Monitor the valve position with ultra-bright LEDs. Tactile buttons provide enhanced user experience with intuitive and familiar operation. -
Page 5: Specifications
Specifications APEX-S Valve Controller Supply Voltage: 9—30VDC Current: 0 .5 A - Display Module only . Fuse Rating: 1 A (12V) & & 0 .5 AMPS (24V) Dimensions: Height 3 31/32" Width 3 5/8" Depth 2 5/16" Datalink Interface: CAN Bus... -
Page 6: General Description
GENERAL DESCRIPTION Components The Electric Valve System consists of the following components: Valve Controller Valve with Actuator Cables Valve Controller The valve control and LED is sealed to an IP67 rating, and has dimensions of 3 31/32 inches high by 3 5/8 inches wide by 2 5/16 inches deep. All controls and indicators are located on the front of the module. -
Page 7: Controls And Indicators
The Visor helps prevent water and dirt from running down the display. It can also be used to color code the valve controller to match the corresponding discharge. Visor Valve Closed Indicator Valve Open position LEDs (10% increments) Light Sensor Valve Control Buttons APEX-S Figure 1. Controls and Indicators... -
Page 8: Installation
INSTALLATION The APEX valve controller is compatible with unibody valves used in 1.5 to 8 inch piping. Install Valve Controller 1 Measure and mark mounting location for controller panel cutout and mounting screw holes Make sure there is clearance behind the panel for the display and cables before cutting holes Refer to Figure 2 for layout and dimensions 2 Cut out a mounting hole according to the cutout diagram in Figure 2, and drill three holes (clearance or tapped) for #10 mounting screws... -
Page 9: Figure 2. Valve Controller Mounting Dimensions
Recommended Panel Cutout 2 3/32" R 1/2" 1 3/64" 2 9/16" 2 3/32" 1 9/32" 1 17/32" 3 1/16" #10 clear (thru-bolt with nut) or tapped for #10 fasteners, 3x 2 5/16" 3 5/8" 3 31/32" 29 3/32" Figure 2. Valve Controller Mounting Dimensions... -
Page 10: Electrical Connections
ELECTRICAL CONNECTIONS Pin 1 6-Pin Connector Valve Controller 6-Pin Connector Signal Description Power 12/24 VDC Ground Supply Datalink Shield Datalink CAN Low Datalink CAN High Figure 3. Valve Controller Wiring... -
Page 11: Figure 4. Valve Actuator Wiring
6-Pin NOTE: 6-Pin Connector is not used with the Connector Pin 1 APEX-S. Leave sealed plug in place. 12-Pin Connector Pin 1 Actuator 12-Pin Connector Signal Description Power 12/24 VDC Ground Valve Position 5 VDC Valve Position Ground Valve Position Signal Valve Control (–) -
Page 12: Wiring The Valve Controller
1. Connect power and ground to the controllers. Use 1 amp fuse for 12v (0.5 amp for 24v) positive controller leads. 2. Connect CAN wiring from the first APEX-S to a CAN splitter at the valve and then onto the second APEX-S. -
Page 13: Figure 5. Wiring (Cables And Connectors)
Cable A–Display Cables with Terminating Resistor (P/N 37542000) Butt Splice Connectors 6-Pin Plug +12 VDC Connector Black To APEX-S Valve Controller Terminating 3-Pin Receptacle Resistor Connector Cable C–Valve Controller Cables (P/N 37544000) 2-Pin Connector Butt Splice Connectors 12-Pin Plug +12 VDC... -
Page 14: Figure 6. Wiring (Cables And Connectors)
Cable D–Valve Controller Cable without Terminating Resistor P/N 375440NT Connectors 3-Pin Plug Connector Cable E–APEX Extension Cable P/N 37543002 - 2' P/N 37543010 - 10' P/N 37543015 - 15' P/N 37543020 - 20' P/N 37543030 - 30' P/N 37543040 - 40' 3-Pin Plug 3-Pin Plug Connector... -
Page 15: Figure 7. Apex-S 1:1 Wiring Connections
APEX-S Wiring 1:1 Connections Figure 7. APEX-S 1:1 Wiring Connections... -
Page 16: Figure 8. Apex-S 2:1 Wiring Connections
APEX-S Wiring 2:1 Connections Figure 8. APEX-S 2:1 Wiring Connections... -
Page 17: Maintenance/Calibration
21. This programming must be done before performing the automatic valve position calibration. Automatic Valve Position Calibration for APEX-S The valve position calibration determines the point where the valve is fully open or fully closed. This process will automatically determine these points by running the valve to the fully closed position then the fully open position, and then back to the fully closed position. - Page 18 Maintenance Instructions Preventive Maintenance The control system should be inspected during each apparatus check. Inspect the valve controller, wiring, and valve for damage. • Operate all possible functions to ensure that each works normally • Fully open and fully close valve to check for full range operation •...
-
Page 19: Operation
OPERATION On power-up the valve controller will be in the normal operating mode. The green OPEN, red CLOSE, and yellow PRESET buttons will control valve position. The yellow PRESET button will set the valve to a programmed position. Once a preset position has been programmed, pressing the PRESET button will move the valve to that position. -
Page 20: Programming Mode
PROGRAMMING MODE Customizing Default Settings Programming mode allows the user to customize some default settings on the controller. When in programming mode, the position of the LEDs is used to program the valve controller to the desired settings. NOTE: The valve must be closed and the red CLOSED LED must be on to enter program mode. Entering Program Mode Press and hold the CLOSE button, then press and hold the OPEN button. - Page 21 The flashing red closed LED will go out One or more green LEDs may stay on 8 Cycle power to the APEX-S controller and the valve 9 Calibrate the valve by using Code 1113. See page 17 to follow the instructions for Valve...
-
Page 22: Error/Warning Codes Troubleshooting Table
Error/Warning Codes Troubleshooting Table The table is provided to assist in tracking down system problems, it is not meant to take the place of good troubleshooting practices. Table 1. Error/ Warnings Codes and Troubleshooting Code Description of Probable Cause (Symptom) Corrective Actions Warning/Error One LED blinking alternatively... - Page 24 Elkhart Brass Manufacturing Co ., Inc . 1302 W . Beardsley Avenue Elkhart, IN 46514 Tel . (574) 295-8330 Toll Free (800) 346-0250 Fax (574) 293-9914 www .elkhartbrass .com Email: eb .info@safefleet .net 98607000 REV-rel 11-19...
