Summary of Contents for Lab 12 gordian
- Page 1 Owner’s Manual gordian Multifunctional Power Distributor / Conditioner www.lab12.gr manual v1.5...
-
Page 2: Table Of Contents
Lab12 gordian - Multifunctional Power Distributor / Conditioner Table of Contents It is yours…………………………………………………………….. Unpacking and warnings…………………………………………. Installation & placement………………………………………… Front panel…………………………………………………………… Rear panel connections………………………………………..Menu structure……………………………………………………… 5, 6 Power factor correction configuration……………………….. EMI noise filter configuration…………………………………… Operation modes…………………………………………………… Connections…………………………………………………………. -
Page 3: It Is Yours
You should never place another component directly on top of this device. Make sure that your gordian has an adequate flow of air around it. Gordian could be warm in some points; this is normal and within parts specifications. Take care of the front panel’s glass blasting anodized finishing using a soft dry cloth. -
Page 4: Front Panel

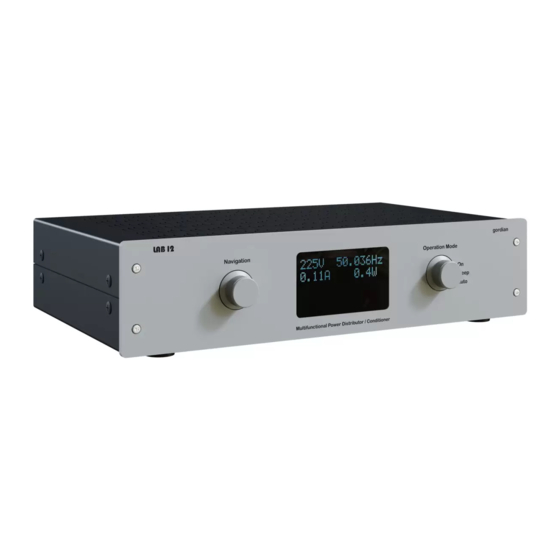

Lab12 gordian - Multifunctional Power Distributor / Conditioner Front Panel Gordian front panel In the front panel you will see the OLED display, the Navigation rotary knob and the Operation Mode rotary knob. The left rotary/push knob (A) is there for navigation into device's menu structure. -
Page 5: Menu Structure
Lab12 gordian - Multifunctional Power Distributor / Conditioner Menu structure All the information for your power line and the configuration of gordian's filter is accessible and updatable through the device's OLED display. You can switch among 11 different menu screens using the "Navigation"... - Page 6 Lab12 gordian - Multifunctional Power Distributor / Conditioner Voltage FFT Frequency analysis of your line’s Push the rotary knob to inspect the frequency voltage. Inspect here the frequency content of your voltage signal. You can see the content of your AC voltage signal gain of each frequency band by rotating the (frequency range 50Hz-7kHz).
-
Page 7: Power Factor Correction Configuration
If you are not sure about what is the best option for your system, set the PF correction mode to 'AUTO' and let gordian adapt the PF correction to the needs of your system and the variations of your system's load. -
Page 8: Operation Modes
Auto : Gordian processor goes to active state only when the standby current exceeds the set value. You can configure the operation of gordian's processor with the rotary switch on the right side of the face plate. If you want the processor to be always active, switch the knob to the "On" position. If you want the processor to be in sleep mode (output sockets will stay alive), switch the knob to the "Sleep"... -
Page 9: Connections
Volt AC/ 50Hz (115 to 120 AC Volts / 60Hz). Check the polarity immediately after the first time of usage and correct the wall plug if needed. Gordian is tuned and calibrated using the Lab12 Knack mk2 Power Cable. We strongly suggest using this cable. -
Page 10: Features & Specifications
Lab12 gordian - Multifunctional Power Distributor / Conditioner Features: • EU, US, UK, Swiss outlets version • 230V/50Hz, 115V/60Hz version • OLED display • Adaptive EMI RFI filtering • Adaptive Common and differential filters • Adaptive Power Factor correction • Overvoltage protection •...
