Summary of Contents for Knauer Azura Degasser DG 2.1S

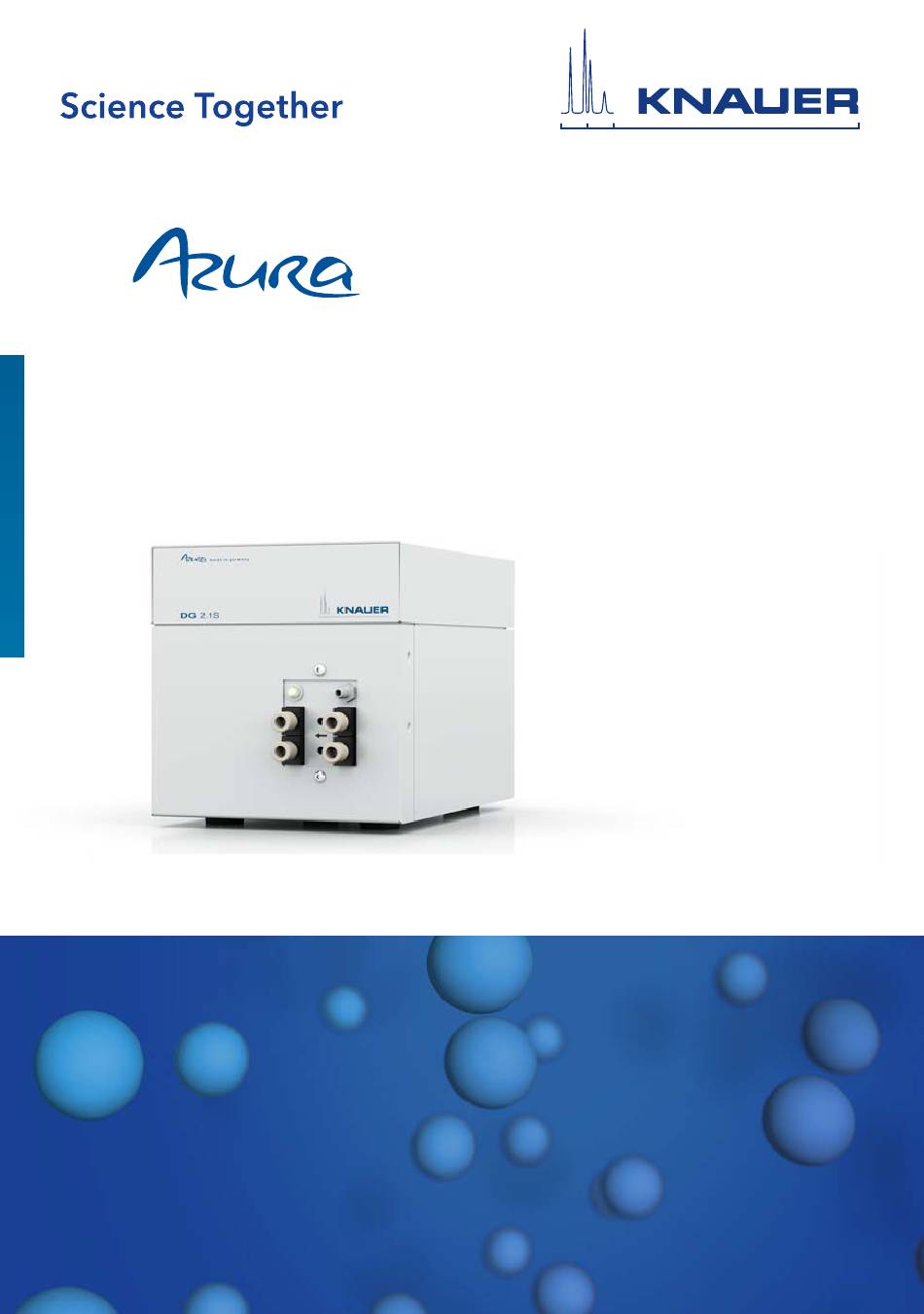

- Page 1 Degasser DG 2.1S Instructions HPLC Document No. V6880...
- Page 2 Note: The contents of this user manual apply for the BlueShadow product. Please submit a request on any article numbers for BlueShadow.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Note: For your own safety, read the manual and always observe the warnings and safety information on the device and in the manual! Intended Use..........5 Device Overview . - Page 4 Table of Contents Technical Data..........17 Accessories and Spare Parts .
-
Page 5: Intended Use

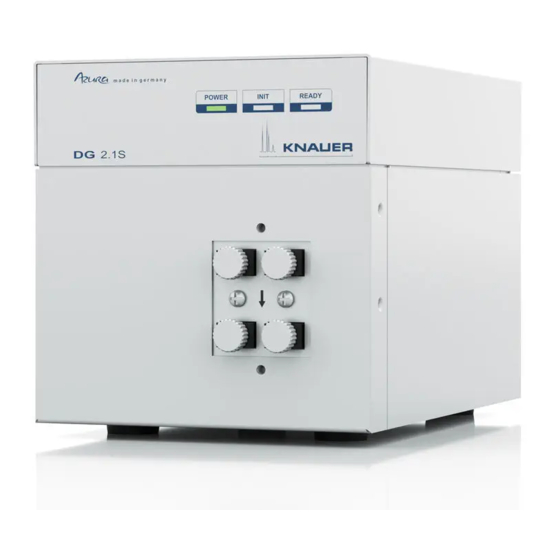

Intended Use Intended Use Note: Only use the device for applications that fall within the range of the intended use. Otherwise, the protective and safety equipment of the device could fail. Device Overview The degasser is a device for degassing eluents. On the front of the device, there are 2 analytical degasser chambers with inlet and outlet side, one bicolor LED and the exhaust port. -
Page 6: Features
Intended Use Operating range Gases that have dissolved into the solvent can cause bubbles in pumps and detectors. Good chromatographic separation therefore requires degassing the solvent. The analytical 2-channel degasser DG 2.1S is equipped with two degas- sing chambers and can thus simultaneously degas two solvents. The device can be used in the following areas: ... -
Page 7: Eluents
Intended Use ® Thanks to the molecular structure of the Teflon AF membrane, only a very small surface is required for degassing the solvent. Thus the risk of carryover during a solvent change is reduced. The special pump design makes it possible to flush the pump head with a small blast of air, to remove solvent fumes, which could escape from the vacuum chamber. -
Page 8: Scope Of Delivery
The environmental, installation, and connection specifications in the user manual National and international regulations pertaining to laboratory work Original spare parts, tools, and solvents made or recommended by KNAUER Good Laboratory Practice (GLP) Accident prevention regulations published by the accident insurance compa- nies for laboratory work ... -
Page 9: Signal Words
At any time, take the device completely out of operation by either switching off the power switch or by pulling the power plug. Opening the Device The device may be opened by the KNAUER Technical Support or any company authorized by KNAUER only. Signal Words Possible dangers related to the device are divided into personal and material damage in this user manual. -
Page 10: Decontamination
Decontaminatin Report Devices without a completed Decontamination Report will not be repaired. If you would like to return a device to KNAUER, make sure to enclose a completed Decontamination Report with the device: http://www.knauer.net/en/down- loads/service.html... -
Page 11: Unpacking And Setup
Contacting the Technical Support You have various options to contact the Technical Support: Phone: +49 30 809727-0 Fax: +49 30 8015010 E-mail: support@knauer.net You can make your requests in English and German. Location Requirements Requirements The location for the device must meet the following requirements: ... -
Page 12: Unpacking
Initial Startup Unpacking Store all packing materials. Packing list should be kept for repeat orders. Tools Utility knife Procedure 1. Check for damages caused during transportation. In case you notice any damage, contact the technical support and the forwarder company. 2. -
Page 13: Switching On The Degasser
Initial Startup Device defect Very high pressures can damage the degasser membrane. The membrane can withstand a maximum pressure of 7 bar. Never connect the degasser to the pump outlet. Procedure 1. Connection of the chambers in the direction of the arrow. 2. -
Page 14: Purging
Initial Startup 5. Switch on the HPLC pump. When you switch off the HPLC pump, also switch off the degasser. Purging Flush the degasser and the connecting tubes with the appropriate solvent prior to use. Thanks to the low chamber volume, only small amounts of the solvents are needed for flushing. -
Page 15: Long-Term Switch-Off
Troubleshooting 3. If the degasser is switched off for several days (e.g. over the weekend), purge the device with isopropanol prior to ending operation. 4. Switch off the degasser at the power supply. Long-Term Switch-Off Procedure 1. Remove critical solvent from the degassing chambers and other system com- ponents by purging with a suitable solvent. -
Page 16: Maintenance And Care
Maintenance and Care Problem Cause Solution The device is running At low rotational speeds, Compare the baseline of but you can not/hardly the pump can hardly be non-degassed ethanol at hear the pump. heard, although the vac- 251 nm with the base- uum is good and the line of degassed etha- degassing process is tak-... -
Page 17: What Is To Be Done If The Degasser Leaks
In this case, the automatic pump control will switch the device off. Inform the Technical Support of KNAUER. Tightening Screw Fittings 1. If the screw fitting of the solvent tube is untight, carefully tighten the screw fitting. -
Page 18: Accessories And Spare Parts
Accessories and Spare Parts Weight 2.3 kg Power supply 85–265 V, 50–60 Hz, 20 W Ambient conditions temperature range: 4–40°C; 39.2–104 F air humidity: below 90 %, non-condensing Accessories and Spare Parts For repeat orders of spare parts please contact the Technical Support of the manufacturer or conform to the packing list which is enclosed when the device is delivered. -
Page 19: Declaration Of Conformity
KNAUER are marked as waste electrical and elec- tronic equipment: 160214. WEEE Registration KNAUER as a company is registered by the WEEE number DE 34642789 in the German "Elektroaltgeräteregister" (EAR). The number belongs to category 8 and 9, which, among others, comprise laboratory equipment. -
Page 20: Index
Index Index Accessories safety equipment Acids Salts Additives Screw fittings Ambient conditions tightening AVV marking Short-term switch-off solvent flammability contamination line self-ignition point tray decontamination Solvent exchange Degasser Solvent tube Front view Screw fitting Degassing principle Spare Parts disposal Spare parts Switch-off Eluent Switch-on... - Page 21 Latest KNAUER instructions online: https://www.knauer.net/en/Support/User-manuals © KNAUER 2020 Phone: +49 30 809727-0 KNAUER Fax: +49 30 8015010 Wissenschaftliche Geräte GmbH E-Mail: info@knauer.net Hegauer Weg 38 Internet: www.knauer.net 14163 Berlin...
