MicroConnect HB-102A Quick Installation Manual

1X2 4K60HZ HDMI 2.0
HDBASET SPLITTER
Quick Installation Guide
Attention:
Customer need to buy the receiver separately
All brand names and trademarks are properties of
their respective owners

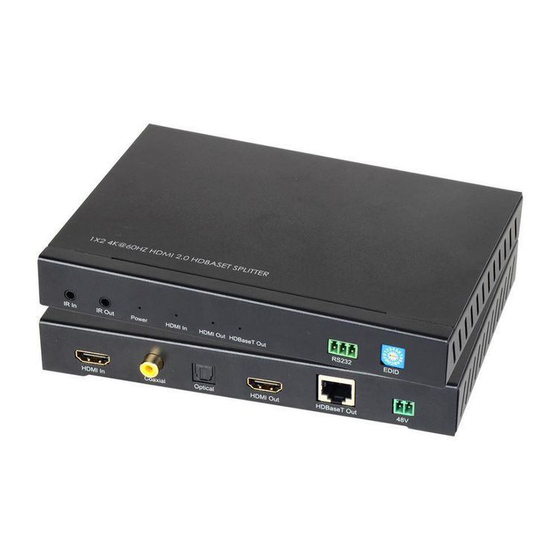

PRODUCT OVERVIEW:

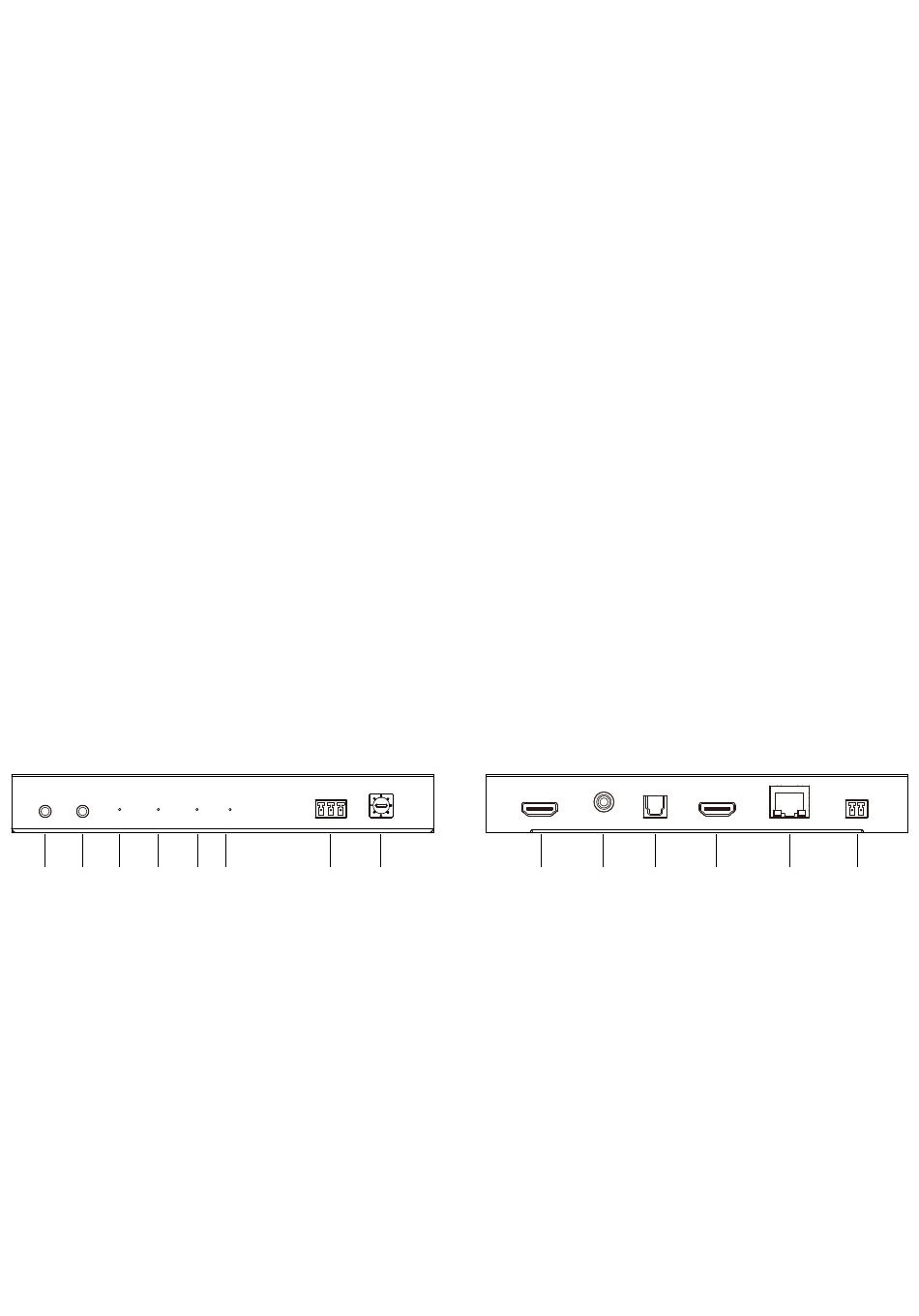

Front Panel :
IR In IR Out
Power HDMI In
① ② ③ ④
① IR In: plug the IR receiver into this jack
② IR Out: plug the IR blaster into this jack
③ Power indicator: constant blue color when the device is powered on
④ HDMI Input indicator: constant blue color when a HDMI source is connected
⑤ HDMI output indicator: constant blue color when a HDMI output is connected
⑥ HDBaseT out indicator: constant blue color when HDBaseT receiver is
connected
⑦ RS232 port
⑧ EDID DIP switch - used for global EDID settings
Ver. 1.0
RS232
HDMI Out HDBaseT Out
⑤ ⑥ ⑦

INTRODUCTION:

Our HB-102A 4K HDBaseT splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4
source to One simultaneous HDBaseT outputs. The HB-102A splitter utilizes
technology to deliver HDMI, Bi-directional IR and PoH (PoE) up to lengths of
100m (70m 4K 60Hz 4:4:4) over a single CAT6a cable. The 2-Way splitter also
features audio breakout, EDID management, and HDMI loop out for integrating
local displays or cascading to multiple devices.

FEATURES:

● Advanced HDBaseT technology offering uncompressed video and audio with
zero latency
● Features 1x HDMI input that is replicated to 1x HDBaseT outputs
● Features 1x HDMI loop out for integrating local displays or cascading to
multiple devices
● Supports 4K 60Hz 4:4:4 UHD video up to 70m via cat6a cable
● Extends HDMI 1080p video up to 100m via cat6a cable
● Supports all known HDMI audio formats including Dolby TrueHD, Dolby
Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
● HDMI audio breakout to both Optical and coaxial digital outputs concurrently
● Supports PoE (Power over HDBaseT) to power compatible HDBaseT
receivers
● Compatible with the HDBaseT receivers - ET-13S-RX (4K 60Hz 4:4:4)
● Advanced EDID management
● HDCP2.2 compliant

PACKAGE CONTENTS:

● 1 x HB-102A
● 1 x 48V/0.5A DC power supply
● 1 x IR emitter (IRE)
● 1 x IR receiver (IRR)
● 1 x User manual
1
Rear Panel :
EDID
HDMI In
⑧ ①
① HDMI input - connect to a HDMI source
② Coaxial audio out - RCA connector, de-embedded audio from the HDMI input
③ Optical out - Connect audio equipment
④ HDMI output - connect to a HDMI display or additional HDMI distribution
equipment
⑤ HDBaseT outputs - connect to HDBaseT receivers
⑥ DC 48V 0.5A
3
Coaxial Optical HDMI Out
② ③ ④
2
HDBaseT Out 48V
⑤ ⑥
