MicroConnect HB-104A Quick Installation Manual

1X4 4K60HZ HDMI 2.0
HDBASET SPLITTER
Quick Installation Guide
Ver. 1.0
Attention:
Customer need to buy the receiver separately
All brand names and trademarks are properties of
their respective owners

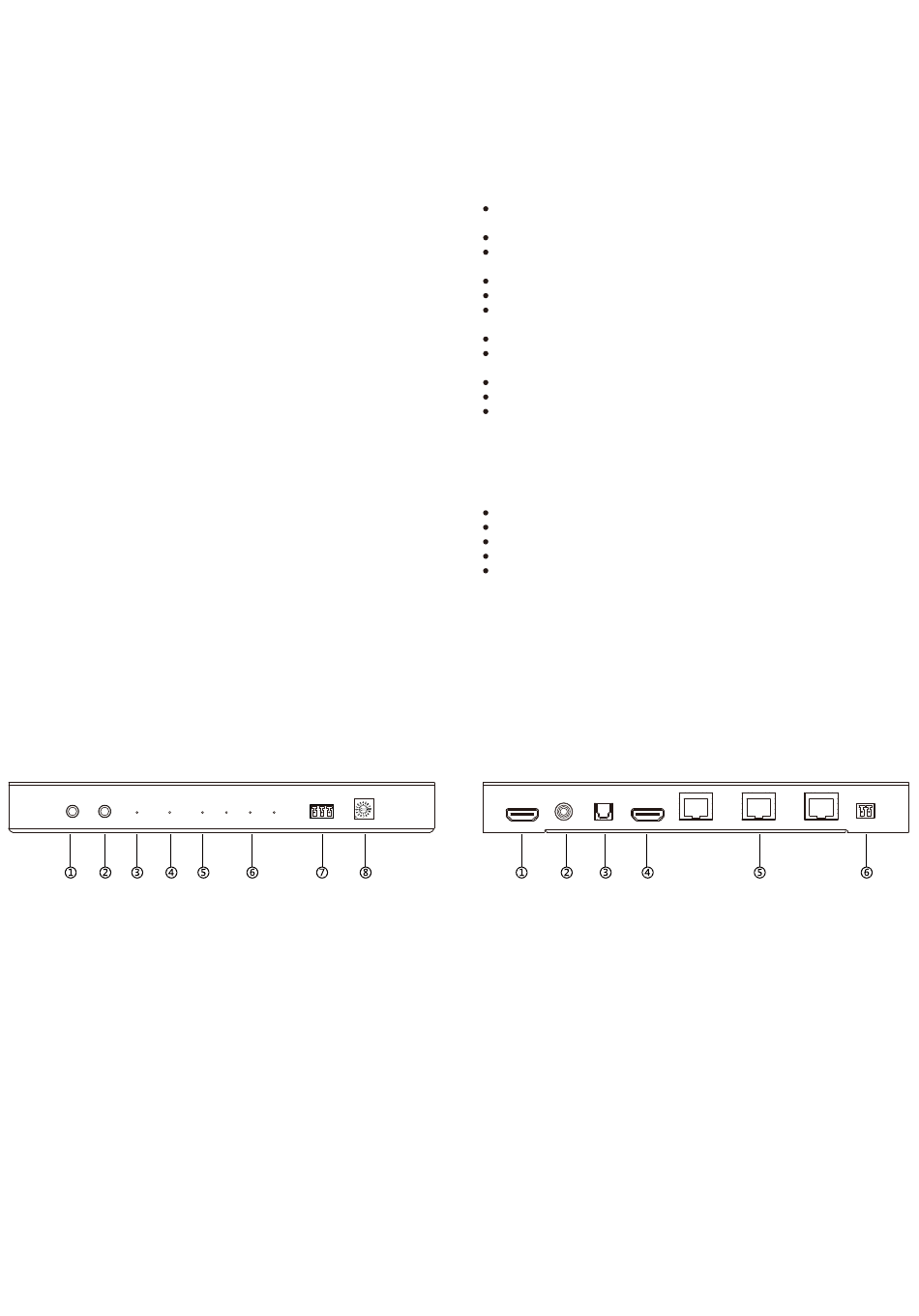

PRODUCT OVERVIEW:

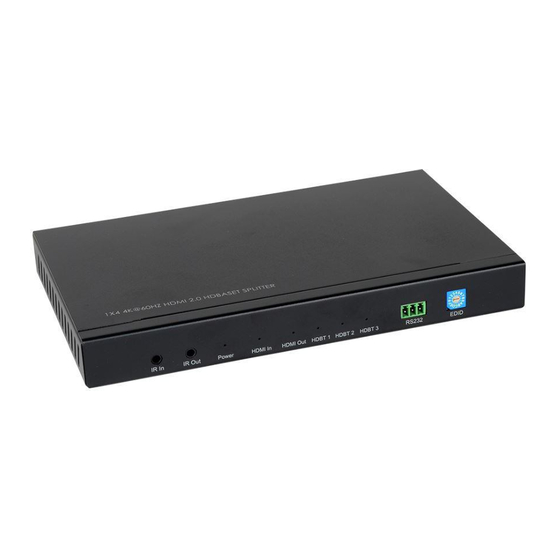

Front Panel :
IR In IR Out
Power HDMI IN HDDMI OUT HDBT 1 HDBT 2
① IR In: plug the IR receiver into this jack
IR Out: plug the IR blaster into this jack
②
Power indicator: constant blue color when the device is powered on
③
HDMI Input indicator: constant blue color when a HDMI source is connected
④
HDMI output indicator: constant blue color when a HDMI output is connected
⑤
HDBaseT out indicator: constant blue color when HDBaseT receiver is connected
⑥
⑦ RS232 port
⑧ EDID DIP switch - used for global EDID settings
1
RS232 EDID
HDBT 3
3

INTRODUCTION:

Our HB-104A 4K HDBaseT splitter distributes a single HDMI 2.0 4K 60Hz
4:4:4 source to Three simultaneous HDBaseT outputs. The HB-104A splitter
utilizes technology to deliver HDMI, Bi-directional IR and PoH (PoE) up to
lengths of 100m (70m 4K 60Hz 4:4:4) over a single CAT6a cable. The 4-Way
splitter also features audio breakout, EDID management,and HDMI loop out for
integrating local displays or cascading to multiple devices.

FEATURES:

Advanced HDBaseT technology offering uncompressed video and audio with
zero latency
Features 1x HDMI input that is replicated to 3x HDBaseT outputs
Features 1x HDMI loop out for integrating local displays or cascading to
multiple devices
Supports 4K 60Hz 4:4:4 UHD video up to 70m via cat6a cable
Extends HDMI 1080p video up to 100m via cat6a cable
Supports all known HDMI audio formats including Dolby TrueHD, Dolby
Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to both Optical and coaxial digital outputs concurrently
Supports PoE (Power over HDBaseT) to power compatible HDBaseT
receivers
Compatible with the HDBaseT receivers - ET-13S-RX (4K60Hz 4:4:4)
Advanced EDID management
HDCP2.2 compliant

PACKAGE CONTENTS:

1 x HB-104A
1 x 48V/1A DC power supply
1 x IR emitter (IRE)
1 x IR receiver (IRR)
1 x User manual
Rear Panel :
HDMI In Coaxial Optical HDMI Out
① HDMI input - connect to a HDMI source
② Coaxial audio out - RCA connector, de-embedded audio from the HDMI input
③ Optical out - Connect audio equipment
④ HDMI output - connect to a HDMI display or additional HDMI distribution
equipment
⑤ HDBaseT outputs - connect to HDBaseT receivers
⑥ DC 48V 1A
HDBaseT Out1 HDBaseT Out2 HDBaseT Out3
2
48V
4
