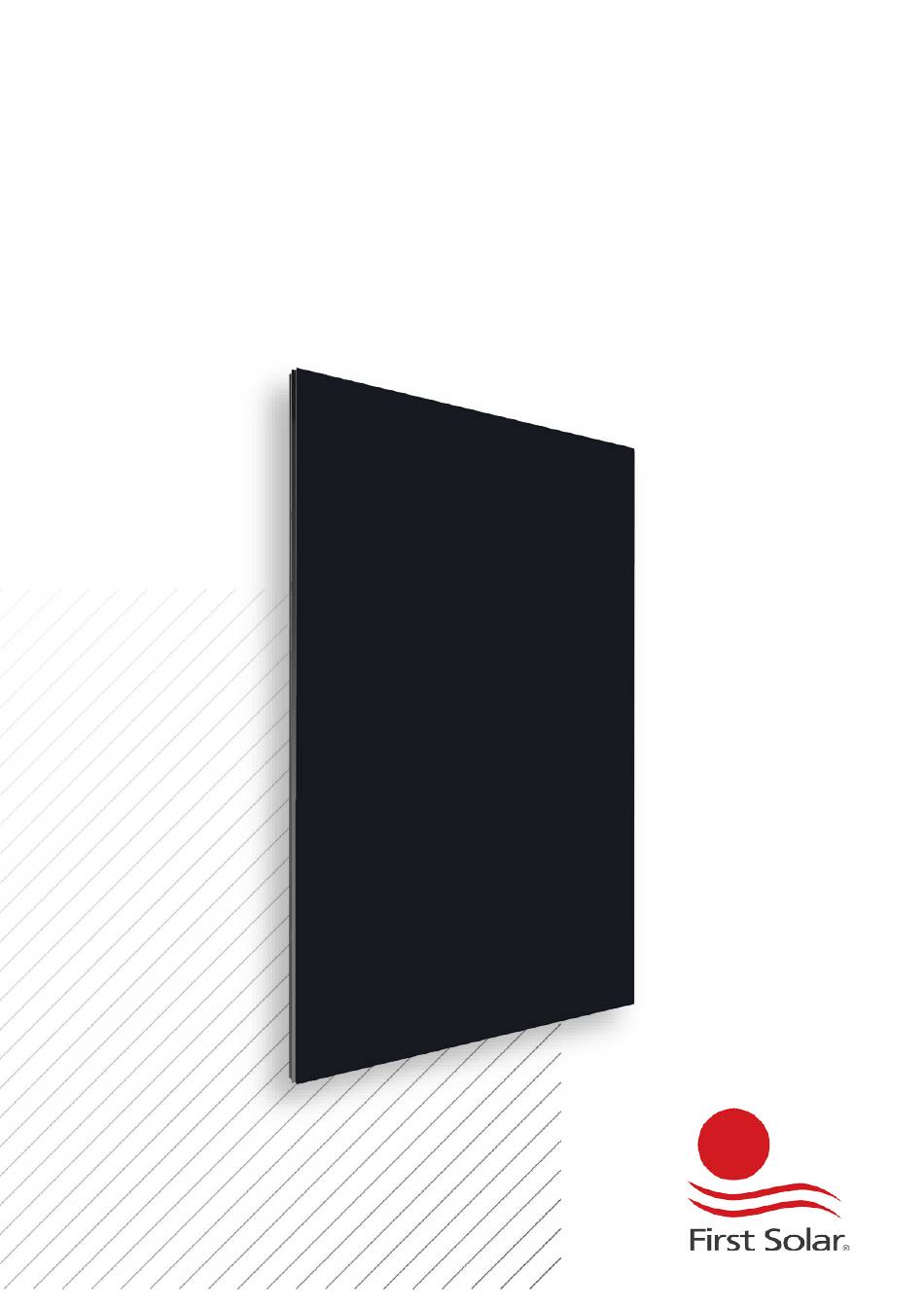

Global
REV 5.0
First Solar Series 6™ Modules | USER GUIDE
PD-5-200-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for First Solar 6 Series

Summary of Contents for First Solar 6 Series

  • Page 1 Global REV 5.0 First Solar Series 6™ Modules | USER GUIDE PD-5-200-06...
  • Page 2 COPYRIGHT AND NOTICES © Copyright 2020 First Solar, Inc. | | PD-5-200-06 Rev 5.0 | FIRST SOLAR SERIES 6 MODULE USER GUIDE. All rights reserved. No part of this document may be reproduced in any form or by any electronic or mechanical means, including information storage and retrieval systems, without permission in writing from First Solar.

  • Page 3: Table Of Contents

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR ii of 29 TABLE OF CONTENTS INTRODUCTION SAFETY REGULATORY COMPLIANCE PRODUCT IDENTIFICATION & RATINGS 4.1 PRODUCT IDENTIFICATION & RATINGS 4.2 SYSTEM DERATING FACTORS HANDLING & STORAGE MECHANICAL SPECIFICATIONS INSTALLATION & MOUNTING 7.1 MOUNTING...

  • Page 4: Introduction

    User Guide. Read this User Guide thoroughly before beginning any work related to installation, operation, or maintenance. Please refer to your First Solar Module Warranty Terms & Conditions for module warranty terms and product return policies. Failure to follow this User Guide may void your warranty.

  • Page 5: Safety

    All instructions and safety information should be read and understood before attempting to handle, install, or electrically connect First Solar modules. Failure to follow safety, installation, and handling instructions may result in injury. Only qualified personnel should install, operate, or maintain PV modules or systems.
  • Page 6 DANGER Reverse currents higher than the rated values for a First Solar module, may result in module failure, including module breakage due to RCOL. Extreme and continuous RCOL conditions may cause a fire or create electrical shock hazards. To avoid RCOL: Maintain equivalent voltage in parallel strings by installing an equal number of modules ►...

  • Page 7: Regulatory Compliance

    It is the responsibility of the installer and/or system integrator to ensure compliance with all local structural and electrical codes, which may be applicable to the installation and use of First Solar Series 6 Modules. For systems installed in Canada, installation shall be in accordance with CSA C22.1, Safety ►...

  • Page 8: Product Identification & Ratings

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 5 of 29 PRODUCT IDENTIFICATION & RATINGS 4.1 PRODUCT IDENTIFICATION & RATINGS Each module is equipped with a product label on the back and laser-etched identification on the front glass.

  • Page 9: System Derating Factors

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 6 of 29 Table 2: Temperature Characteristics TEMPERATURE CHARACTERISTICS Module Operating Temperature Range (°C) -40 to +85 Temperature Coefficient of P -0.32%/°C (Temperature Range: 25°C to 75°C) Temperature Coefficient of V -0.28%/°C...

  • Page 10: Handling & Storage

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 7 of 29 HANDLING & STORAGE When handling packs using forklifts or other mechanical aids, ensure uniform pack support, and the forks fully extend under the pallet. Packs can be lifted from either the short or long side of the pallet. Forklifts must engage the pallet a minimum of 1.3 m (51 in) for long side engagement and a minimum of 1.5 m (60...

  • Page 11: Mechanical Specifications

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 8 of 29 MECHANICAL SPECIFICATIONS Figure 2: Series 6 Module Mechanical Drawing © FIRST SOLAR, INC. | PD-5-200-06 REV 5.0...
  • Page 12 First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 9 of 29 Table 3: Series 6 Module Mechanical Specifications DIMENSION SPECIFICATION MODEL TYPE DETAILS FS-6XXX / FS-6XXXA 2009 mm +3/-1 mm (79.1 +0.11 / -0.04 in) Length FS-6XXX-P / FS-6XXX-P 2024 mm +3/-1 mm (79.7 +0.11/-0.04 in)
  • Page 13 First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 10 of 29 For Model Types FS-6XXX / FS-6XXXA For Model Types FS-6XXX-P / FS-6XXXA-P / FS-6XXX-P-I / FS-6XXXA-P-I Figure 3: Grounding Hole & Wire Management Hole Detail from Frame Center...

  • Page 14: Installation & Mounting

    First Solar is not responsible for bonding failure, breakage, damage, wear, corrosion, or module performance issues that are deemed to be caused by design or installation practices that do not comply with this User Guide.
  • Page 15 FS-6XXX-P-I / FS-6XXXA-P-I Model Types are IEC 61215/IEC 61730 certified at Mounting Configuration B only when supplemented with additional interface point(s). Consult First Solar for supplemental documentation. © FIRST SOLAR, INC. | PD-5-200-06 REV 5.0...

  • Page 16: Series 6 Plus Modules - Required Engineering Practices

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 13 of 29 evaluation by First Solar (technicalsupport@firstsolar.com). First Solar reserves the right to reasonable access to validate proper installation. The modules shall have a minimum spacing gap of 6 mm (0.24 in) between each other. Usable ►...

  • Page 17: Top Mounting

    It is recommended all array positions be designed to mechanically accommodate the FS-6XXX-P / FS-6XXXA-P model types, given their ability to be utilized in all array zones. For the same reason, First Solar will typically provide these FS-6XXX-P / FS-6XXXA-P model types as spares and/or warranty replacements.

  • Page 18: Speedslot Mounting

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 15 of 29 7.5 SPEEDSLOT MOUNTING The Series 6 Module frames include six SpeedSlots on each side, as shown in Figure 7. SpeedSlot clamps must either extend 10 mm (0.39 in) beyond the inner edge of the frame, or have a retention feature to prevent module frame dislodgement under load.

  • Page 19: Module Orientation

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 16 of 29 7.6 MODULE ORIENTATION PV performance modeling software, such as PlantPredict (http://www.plantpredict.com), should be used to determine the optimum orientation and tilt angle for each location. Mount modules in portrait orientation for applications where row-to-row shading could occur. Landscape orientation is permitted only in flat mount applications where the module long edge is not completely shaded and when compliant with Section 7.7 Module Shading Considerations.

  • Page 20: Wire Management

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 17 of 29 7.8 WIRE MANAGEMENT All wire management shall comply with the applicable NEC/IEC codes and standards for maintaining and managing wires, as well as any applicable local requirements determined by local authorities having jurisdiction.
  • Page 21 First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 18 of 29 Figure 10: The above-ground DC cabling (typically a bundle of Harnesses and PV array cables) may be supported by the wire management holes located on the Series 6 Module Edge Frames.

  • Page 22: Electrical Interconnection

    Module-to-module and module-to-harness interconnection must utilize the same manufacturer and type of connectors. First Solar cannot guarantee that connectors from different manufacturers or type of connectors will be mateable. Any damage to the module resulting from any such interconnection will not be covered by the First Solar module warranty.

  • Page 23: Inverter Compatibility

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 20 of 29 Wiring harnesses are recommended in system designs. The shorter string size and low string current of Series 6 Modules make it possible to connect multiple strings together in parallel and return a single pair of DC cables to the combiner box or string inverter.

  • Page 24: Grounding Method

    21 of 29 7.11 GROUNDING METHOD First Solar recommends Series 6 Modules be used in negative-grounded systems. Modules must not be subjected to negative voltage bias conditions that can occur in voltage floating or bi-polar systems (subjecting modules to conditions that could drive potential induced degradation). If string inverters or other...
  • Page 25 First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 22 of 29 A UL Listed Grounding Lug with paint cutting star washer and #8-32 by 3/8 inch thread forming ► screw. A UL Listed grounding strap type EM2050 as manufactured by Electric Motion CO. Inc.

  • Page 26: Maintenance

    Other snow clearing methods, such as blowers, may be used depending on snow conditions and if approval by First Solar. To prevent pile up and overload, periodically clearing snow from the bottom modules first in an array is a critical process.

  • Page 27: Module Cleaning Guidance

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 24 of 29 8.2 MODULE CLEANING GUIDANCE Series 6 Modules do not require cleaning in most climates. Installed modules may collect a light layer of dust and/or dirt (soiling) over time and periodic rainfall should be sufficient to remove light soiling in most cases.

  • Page 28: Module Disposal

    First Solar recommends no more than 90 lb (40.8 kg) per module that is evenly distributed while cleaning. Specific contact points (wheels or belts) can affect the load and pressure placed on the modules.

  • Page 29: Revision History

    First Solar Series 6™ Modules | USER GUIDE FIRST SOLAR 26 of 29 REVISION HISTORY REVISION REVISION AMENDMENT DETAILS NUMBER DATE Document created 12/19/2017 Updated from single to dual crossbar frame design; Handling and Storage 7/31/2018 update. Added single and dual crossbar frame designs; Updated UL grounding...
