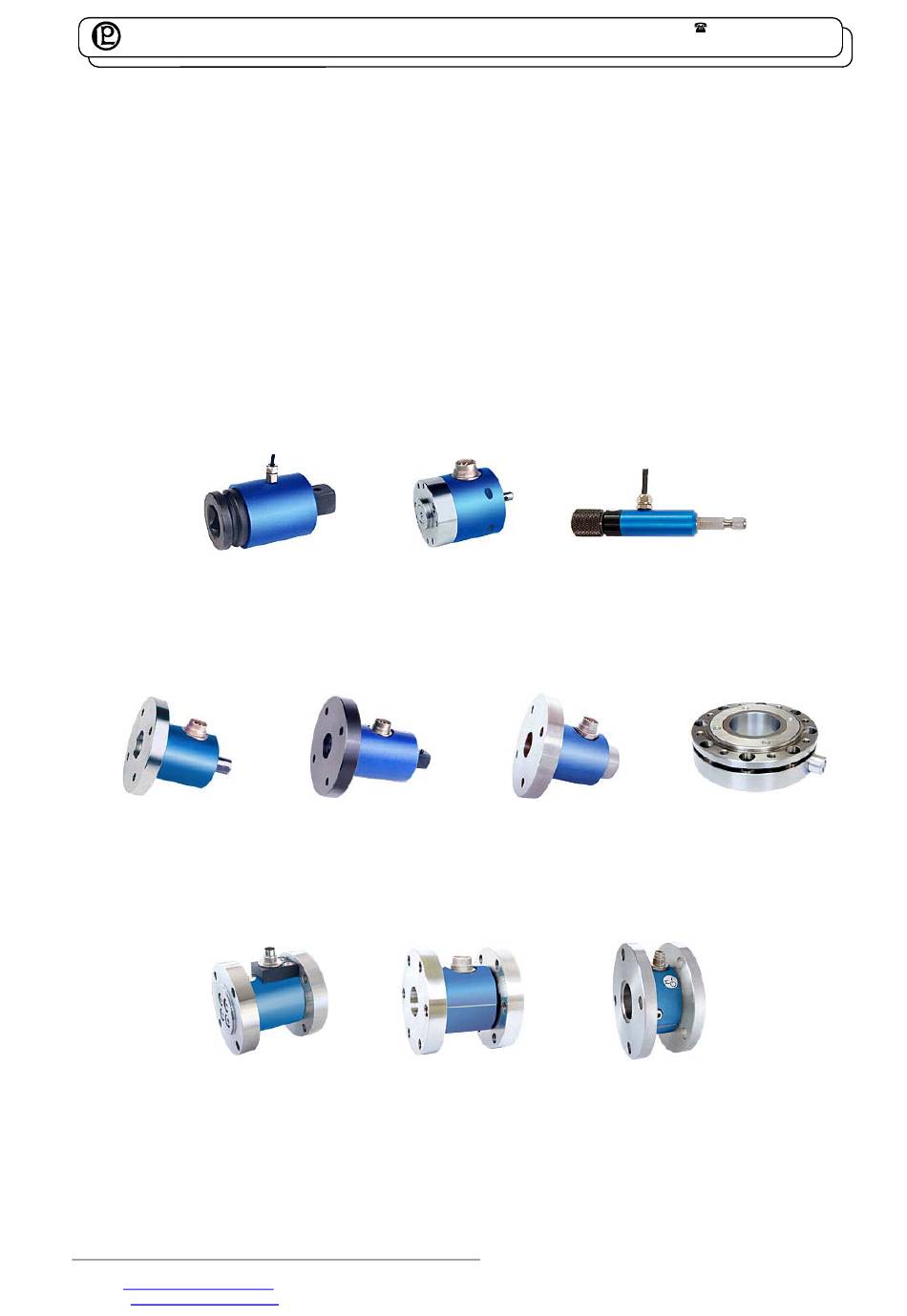

LORENZ MESSTECHNIK GmbH
Operation Manual
for Torque Sensors
For below and similar Types

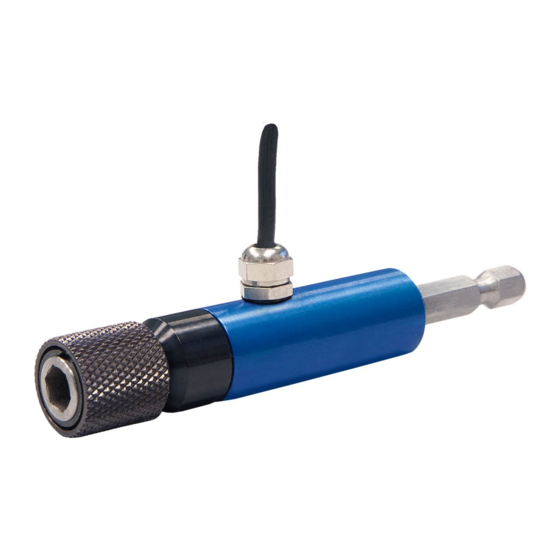

DV-14
DFW-25
D-2209
E-Mail:
info@lorenz-sensors.com
Internet:
www.lorenz-sensors.com
DH-15
DFW-35
DF-30
Technical changes reserved
Obere Schloßstr.131
Fax 07172 /93730-22
73553 Alfdorf
D-2431
D-2223
D-2553
07172 / 93730-0
D-2268
090138c.doc
Page 1 of 11
Advertisement
Table of Contents
Related Manuals for LORENZ MESSTECHNIK DV-14
Summary of Contents for LORENZ MESSTECHNIK DV-14
- Page 1 Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Operation Manual for Torque Sensors For below and similar Types DV-14 DH-15 D-2431 DFW-25 DFW-35 D-2223 D-2268 D-2209 DF-30 D-2553 E-Mail: info@lorenz-sensors.com Technical changes reserved 090138c.doc Internet: www.lorenz-sensors.com...
- Page 2 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Imprint Manufacturer, Place Lorenz Messtechnik GmbH, D-73553 Alfdorf. Valid for... Static Torque Sensors Copyright © 2006 Lorenz Messtechnik GmbH, Alfdorf. Reprint Interdiction Reprints, even in extracts, only with written authority.
- Page 3 Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Contents Read First.............................. 4 Safety and Caution Symbols......................4 Intended Use..........................4 Dangers............................4 1.3.1 Neglecting of Safety Notes ..................... 4 1.3.2 Remaining Dangers ........................ 4 Reconstructions and Modifications ....................4 Personnel ............................
-
Page 4: Read First
Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Read First Safety and Caution Symbols Caution: Injury Risk for Persons Damage of the Device is possible Note: Important points to be considered Intended Use Torque sensors are intended for the measurement of torques. This measurand is further suitable for control tasks. -
Page 5: Term Definitions
Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Term Definitions Terms Measuring Side: Shaft connection in which the torque to be measured is applied. Usually this side has the smallest moment of inertia. Drive Side: The shaft end on the opposite side of the measuring side with the larger moment of inertia. -
Page 6: Mechanical Assembly
Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Mechanical Assembly Caution: During the assembly inadmissibly large forces may not act on the sensor or the couplings. At small torques (< 20 N·m) connect the sensor electrically during the assembly and observe the signal, the measurement signal may not exceed the limit values During the assembly the sensor must be supported to protect it from falling down. -
Page 7: Electrical Connection
Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Electrical Connection Pin Connection 6-pin Function SG- excitation - SG- excitation + Shield SG- signal + SG- signal - 100% calibration control 7-pin Function SG- excitation -... - Page 8 Cable resistance = 2 x resistance of the cable length (both feed lines of the sensor). The sensors with the ordered cable length are calibrated at Lorenz Messtechnik GmbH. Therefore the cable length does not need to be considered in this case.
- Page 9 Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf 6.4.2 Natural Resonances Estimate of the mechanical natural frequencies: = Natural frequency in Hz ⎛ ⎞ ⎜ ⎜ ⎟ ⎟ ⋅ ⋅ = Moment of inertia in kg*m²...
-
Page 10: Maintenance Schedule
Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Maintenance Maintenance Schedule Action Frequency Date Date Date Control of cables and connectors 1x p.a. Calibration < 26 months Control of fixation (flanges, shafts) 1x p.a. Trouble Shooting This chart is used for searching for the most frequent errors and their elimination. -
Page 11: Data Sheet
Obere Schloßstr.131 07172 / 93730-0 LORENZ MESSTECHNIK GmbH Fax 07172 /93730-22 73553 Alfdorf Storage The storage of the sensors must occur in dry, dust-free rooms, only. Slightly lubricate shafts and flanges with oil before storing (rust). Disposal The torque sensors must be disposed according to the valid provisions of law.
