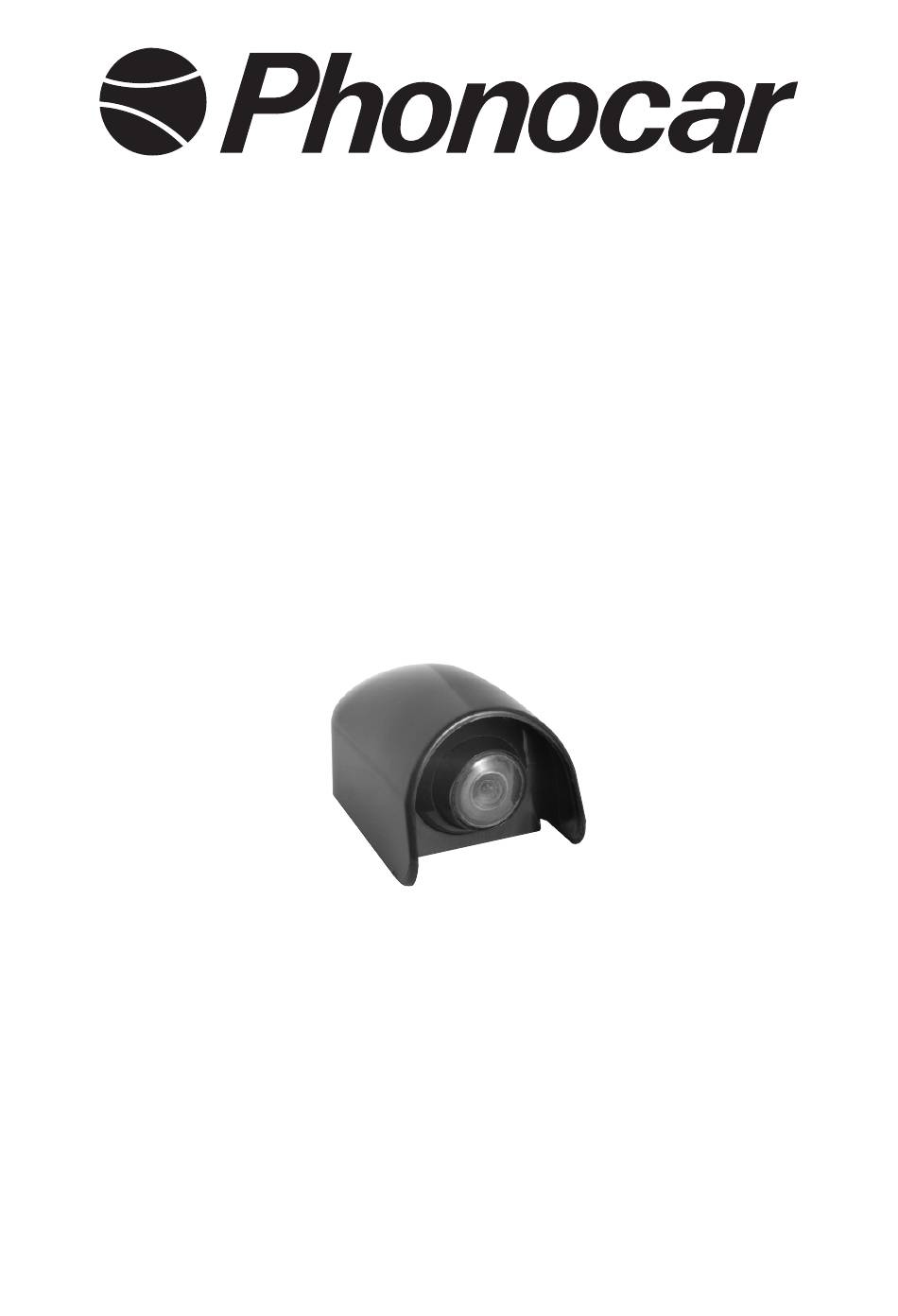

- Page 1 RETRO-CAMERA 1,4” CMD ORIENTABILE IN BOX REAR-CAMERA 1.4” CMD ADJUSTABLE IN-BOX ISTRUZIONI DI MONTAGGIO MOUNTING INSTRUCTIONS INSTRUCTIONS DE MONTAGE MONTAGE-ANLEITUNGEN INSTRUCCIONES PARA EL MONTAJE VM 285...
- Page 2 INSTALLAZIONE • INSTALLATION • INSTALACIÓN Copertura verniciabile Cover paintable Couverture à peindre Abdeckung Überstreichbar Se puede pintar la cubierta Viti / Screws / Vis / Schrauben / Tornillos 2,9x9,5 mm Supporto superiore Upper support Support supérieur Obere Hälfte Soporte superior Camera orientabile Orientable camera Caméra orientable...
- Page 3 SCHEMA DI COLLEGAMENTO • CONNECTION SCHEME DIAGRAMME DE CONNEXION • ANSCHLUß-DIAGRAMMA ESQUEMA DE CONEXION • NON MODIFICARE PER NESSUN MOTIVO IL CAVO DELLA TELECAMERA. • BY NO MEANS, NEVER MODIFY THE CABLE OF THE REAR-CAMERA. • NE MODIFIER EN AUCUN CAS LE CÂBLE DE LA CAMÉRA DE RECUL. •...
- Page 4 1999/5/EC R&TTE IT Phonocar dichiara che i prodotti sono conformi ai requisiti essenziali e a tutte le altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. GB Phonocar declares that these units are in compliance with the essential requirements and other revelant provisions of Directive 1999/5/EC.
