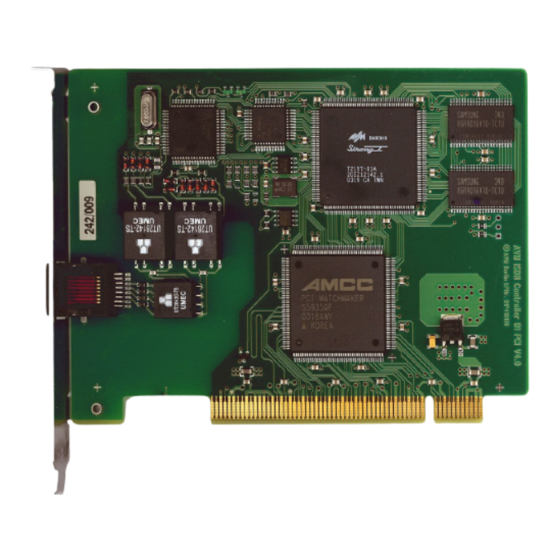

AVM ISDN-Controller B1 PCI v4.0
This documentation and the software it describes are protected by copyright. AVM grants the non-ex-
clusive right to use the software, which is supplied exclusively in what is known as object code format.
The licensee may create only one copy of the software, which may be used exclusively for backup use.
AVM reserves all rights that are not expressly granted to the licensee. Without previous approval in
writing, and except for in cases permitted by law, it is particularly prohibited to
copy, propagate or in any other manner make this documentation or this software publicly accessi-
ble, or
process, disassemble, reverse engineer, translate, decompile or in any other manner open the soft-
ware and subsequently copy, propagate or make the software publicly accessible in any other man-
ner.
Please consult the LICENSE.TXT file on the product CD included in the package for specifics about the
licensing conditions.
This documentation and software have been produced with all due care and checked for correctness in
accordance with the best available technology. AVM GmbH disclaims all liability and warranties,
whether express or implied, relating to the AVM product's quality, performance or suitability for any
given purpose which deviates from the performance specifications contained in the product descrip-
tion. The licensee bears all risk in regard to hazards and impairments of quality which may arise in
connection with the use of this product.
AVM will not be liable for damages arising directly or indirectly from the use of the manual or the soft-
ware, nor for incidental or consequential damages, except in case of intent or gross negligence. AVM
expressly disclaims all liability for the loss of or damage to hardware or software or data as a result of
direct or indirect errors or destruction and for any costs (including connection charges) related to the
documentation and the software and due to incorrect installations not performed by AVM itself.
The information in this manual and the software are subject to change without notice for the purpose
of technical improvement.
We offer a manufacturer's warranty for this original product. The conditions of this warranty are con-
tained in the WARRANTY.PDF file in the INFO folder on the product CD included with delivery.
© AVM GmbH. 2007All rights reserved.
Documentation release 2007
AVM Audiovisuelles Marketing
und Computersysteme GmbH
Alt-Moabit 95
D-10559 Berlin
AVM in the Internet: www.avm.de/en
Trademarks: Unless otherwise indicated, all trademarks mentioned are legally protected trademarks
owned by AVM GmbH, especially product names and logos. Microsoft, Windows and the Windows logo
are trademarks owned by Microsoft Corporation in the USA and/or other countries. Bluetooth is a
trademark of Bluetooth SIG Inc. licensed to AVM GmbH. All other products and company names are
trademarks of their respective owners.
2
ISDN-Controller B1 PCI v4.0
AVM Computersysteme
Vertriebs GmbH
Alt-Moabit 95
D-10559 Berlin

Advertisement

Table of Contents
loading

Summary of Contents for AVM B1 PCI v4.0

  • Page 1 AVM will not be liable for damages arising directly or indirectly from the use of the manual or the soft- ware, nor for incidental or consequential damages, except in case of intent or gross negligence. AVM...
  • Page 2: Table Of Contents

    Installing Additional Controllers ......15 Removing the ISDN-Controller B1 PCI v4.0 ..... . 15 Installation in Windows XP / Server 2003 Installing the Driver Software .
  • Page 3 The AVM System Drivers........
  • Page 4 Updates ..........80 16.4 Support from the AVM Service Team......80 Index Declaration of CE Conformity ISDN-Controller B1 PCI v4.0 –...
  • Page 5 Tips, instructions and ...for more informa- tion, see... warnings Symbols The following icons are used in the manual: This symbol designates sections which contain important in- formation. This symbol indicates useful tips and information. ISDN-Controller B1 PCI v4.0 – Symbols and Highlighting...
  • Page 6: The Avm Isdn-Controller B1 Pci V4.0

    ISDN line over the S interface on the con- troller. This interface is connected to the ISDN line using the cable included in the product package. ISDN-Controller B1 PCI v4.0 – 1 The AVM ISDN-Controller B1 PCI v4.0...
  • Page 7: The Driver Software Of The Isdn-Controller B1 Pci V4.0

    ISDN applications for the use of data, fax and speech transmission. This interface allows the ISDN- Controller B1 PCI v4.0 to be used with a wide range of CAPI 2.0-based ISDN applications. For more information about CAPI 2.0, see the section “The Applications Interface CAPI 2.0”...
  • Page 8 Internet or to access remote serv- ers. For detailed information about the AVM system drivers, see the section “The AVM System Drivers” on page 67. ISDN-Controller B1 PCI v4.0 – 1 The AVM ISDN-Controller B1 PCI v4.0...
  • Page 9: System Requirements

    DOS, Novell NetWare 6.x, 5.x, 4.x and 3.12, OS/2 or Linux. CD-ROM drive for installation of the driver software free PCI slot compliant with specification 2.1 or higher (5V slot) ISDN-Controller B1 PCI v4.0 – 1 The AVM ISDN-Controller B1 PCI v4.0...
  • Page 10: Package Contents

    “Connect32” for convenient data transmission in ISDN. “AVM ISDN-Tools” manual in PDF format in the INFO/MANUAL folder on the installation CD Additional CAPI applications may be acquired separately from your vendor. ISDN-Controller B1 PCI v4.0 – 1 The AVM ISDN-Controller B1 PCI v4.0...
  • Page 11: Installing The Isdn-Controller B1 Pci V4.0

    This completes the hardware installation. The individual steps taken to install the driver software differ among the operating systems. Read the section that de- scribes the driver installation for your operating system. ISDN-Controller B1 PCI v4.0 – 2 Installing the ISDN-Controller B1 PCI v4.0...
  • Page 12: Installation In Windows Vista

    (ISDN device) can access. This is par- ticularly important for ISDN telephones. AVM continuously extends the functionality of the driver software for your ISDN-Controller B1 PCI v4.0. If a more cur- rent version of the driver software is available, it may be ob- tained...
  • Page 13: Installing The Driver Software

    Installing the Driver Software Installing the Driver Software Once the ISDN-Controller B1 PCI v4.0 has been installed in your computer, it will be recognized automatically as a Plug & Play device. The CAPI 2.0 interface and the AVM NDIS WAN CAPI Driver are available on your system.
  • Page 14: Installing Additional Controllers

    Only one ISDN-Controller can be removed at a time. If you have installed several ISDN-Controllers and want to remove them all, then perform the procedure described here several times, without restarting Windows between each operation. ISDN-Controller B1 PCI v4.0 – 3 Installation in Windows Vista...
  • Page 15: Installation In Windows Xp / Server 2003

    AVM is continuously developing the driver software for the the ISDN-Controller B1 PCI v4.0. If a more current version of the driver software is available, it may be obtained from the ADC under CARDWARE\B1_PCI\WINDOWS.XP\ENGLISH. ISDN-Controller B1 PCI v4.0 – 4 Installation in Windows XP / Server 2003...
  • Page 16: Installing The Driver Software

    Once the driver installation is concluded, the second step is to update the driver software from the installation CD. We recommend installing the current driver software from the installation CD or the ADC. ISDN-Controller B1 PCI v4.0 – 4 Installation in Windows XP / Server 2003...
  • Page 17 CAPI Driver are available on your system. For details about the AVM ISDN NDIS WAN CAPI Driver and the other two AVM system drivers, see the section “The AVM System Drivers” on page 67. ISDN-Controller B1 PCI v4.0 – 4 Installation in Windows XP / Server 2003...
  • Page 18: Changing The Settings

    If the current driver software from AVM is installed on your system, the “Device Manager includes an additional Ad- vanced” settings page which allows you to enable Direct Dial-in. ISDN-Controller B1 PCI v4.0 – 4 Installation in Windows XP / Server 2003...
  • Page 19: Installing Additional Controllers

    Only one ISDN-Controller can be removed at a time. If you have installed several ISDN-Controllers and want to remove them all, then perform the procedure described here several times, without restarting Windows between each operation. ISDN-Controller B1 PCI v4.0 – 4 Installation in Windows XP / Server 2003...
  • Page 20: Installation In Windows 2000

    Installation in Windows 2000 Installation in Windows 2000 The AVM ISDN Controller B1 PCI v4.0 is shipped with drivers that are especially developed for use in Microsoft Windows 2000. The CAPI 2.0 interface supplied supports both 16-bit and 32-bit applications. Applications in DOS win- dows are not supported.
  • Page 21: Installing The Driver Software

    Installing the Driver Software Installing the Driver Software Once the ISDN-Controller B1 PCI v4.0 has been installed in your computer, it will be recognized automatically as a Plug & Play device. Use the Found New Hardware Wizard to con- figure the ISDN-Controller for operation. To do so, proceed as...
  • Page 22 We recommend that you always install the current driver software from the installation CD or the ADC to take advan- tage of the entire potential of the ISDN-Controller B1 PCI v4.0 (for instance, faxing on two B channels simultaneously). Run the SETUP.EXE file.
  • Page 23: Changing The Settings

    After installation the CAPI 2.0 and the AVM ISDN NDIS WAN CAPI Driver are available on your system. For details about the AVM ISDN NDIS WAN CAPI Driver and the other two AVM system drivers, see the section “The AVM System Drivers” on page 67.
  • Page 24: Installing Additional Controllers

    To install an additional ISDN-Controller for the PCI bus, sim- ply insert it in a suitable slot as described in “Installing the ISDN-Controller B1 PCI v4.0” on page 12 and start Windows. Make the entries described in the section “Installing the Driver Software”...
  • Page 25 Only one ISDN-Controller can be removed at a time. If you have installed several ISDN-Controllers and want to remove them all, then perform the procedure described here several times, without restarting Windows between each operation. ISDN-Controller B1 PCI v4.0 – 5 Installation in Windows 2000...
  • Page 26: Installation In Windows Nt

    Installation in Windows NT AVM no longer provides support for use of the ISDN-Control- ler B1 PCI v4.0 with the Windows NT operating system and there is no further development of the driver software. The AVM ISDN Controller B1 PCI v4.0 is shipped with drivers that are especially developed for use in Microsoft Windows NT.
  • Page 27 Windows NT. Now the ISDN-Controller can be put into opera- tion. A new program group called “AVM” is created in the Program Manager/Start menu. This program group contains the files “AVM Internet Home Page” (Windows NT 4.0 only: link to the AVM Internet pages), “B1 Readme”, “B1 Setup”...
  • Page 28: Changing The Settings

    Changing the Settings By default the ISDN-Controller B1 PCI v4.0 is loaded auto- matically every time Windows NT is started. Because the controller is loaded before the items in the “Startup” pro- gram group, it is no problem to include communications pro- grams based on CAPI in the “Startup”...
  • Page 29: Removing The Isdn-Controller B1 Pci V4.0

    Removing the ISDN-Controller B1 PCI v4.0 Removing the ISDN-Controller B1 PCI v4.0 Proceed as follows to remove the ISDN-Controller B1 PCI v4.0 driver software in Windows NT: Select “Start / Settings / Control Panel”, then double- click the “Add/Remove Programs” icon.
  • Page 30: Installation In Windows Me

    Installation in Windows Me AVM no longer provides support for use of the ISDN-Control- ler B1 PCI v4.0 with the Windows Me operating system and there is no further development of the driver software. The AVM ISDN-Controller B1 PCI v.0 is shipped with drivers that are especially developed for use in Microsoft Windows Me.
  • Page 31 SPID, leave the input fields in this dialog blank and click “Continue”. The installation program then copies all files to the specified folder. ISDN-Controller B1 PCI v4.0 – 7 Installation in Windows Me...
  • Page 32 “AVM Internet Home Page” (link with the AVM Internet pages), “B1 Readme”, “B1 Setup” and “B1 Test”. US only: In addition to the above files, your AVM pro- gram folder also contains the program “B1 SPID Tool”. With this tool, you can change the Directory Number(s) and SPID(s) for the ISDN-Controller.
  • Page 33: Changing The Settings

    To install an additional ISDN-Controller for the PCI bus, sim- ply insert it in a suitable slot as described in “Installing the ISDN-Controller B1 PCI v4.0” on page 12 and start Windows. Make your settings in the dialogs as described in the section “Installing the Driver Software”...
  • Page 34: Removing The Isdn-Controller B1 Pci V4.0

    Removing the ISDN-Controller B1 PCI v4.0 Removing the ISDN-Controller B1 PCI v4.0 Proceed as follows to remove the ISDN-Controller B1 PCI v4.0 driver software in Windows Me: Select “Start / Settings / Control Panel”, then double- click the “Add/Remove Programs” icon.
  • Page 35: Installation In Windows 98

    Installation in Windows 98 AVM no longer provides support for use of the ISDN-Control- ler B1 PCI v4.0 with the Windows 98 operating system and there is no further development of the driver software. The AVM ISDN Controller B1 PCI v4.0 is shipped with drivers that are especially developed for use in Microsoft Windows 98.
  • Page 36 Start installation by clicking “Next” again. The Windows 98 Add New Hardware Wizard reports that a driver file for the ISDN-Controller B1 PCI v4.0 has been found. If the information is correct, click “Next”. 10. The driver files are copied to a temporary folder. Then click “Finish”.
  • Page 37 ISDN-Controller B1 PCI v4.0. Confirm with “Contin- ue”. A new folder called “AVM” is created in the “Programs group of the Windows 98 Start menu. This folder contains the pro- grams “AVM Internet Home Page” (link with the AVM Internet pages), “B1 Readme”, “B1 Setup”...
  • Page 38: Changing The Settings

    To install an additional ISDN-Controller for the PCI bus, sim- ply insert it in a suitable slot as described in “Installing the ISDN-Controller B1 PCI v4.0” on page 12 and start Windows. Make your settings in the dialogs as described in the section “Installing the Driver Software”...
  • Page 39: Removing The Isdn-Controller B1 Pci V4.0

    Removing the ISDN-Controller B1 PCI v4.0 Removing the ISDN-Controller B1 PCI v4.0 Proceed as follows to remove the ISDN-Controller B1 PCI v4.0 driver software in Windows 98: Select “Start / Settings / Control Panel”, then double- click the “Add/Remove Programs” icon.
  • Page 40: Installation In Novell Netware 6.X, 5.X, 4.X And

    Ware versions. Configuration and operation of the ISDN-Con- troller B1 PCI v4.0 is different depending on whether the Stand-Alone CAPI or the CAPI Manager version is used. ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 41: Installing The Driver Software

    ISDN-Controller, enter the following com- mand: <CD-ROM drive>:\CARDWARE\B1_PCI\ NETWARE\CAPI20\ENGLISH To enter the driver software for the CAPI Manager, enter the following command: ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 42: Configuring The Isdn-Controller B1 Pci V4.0 With Stand-Alone Capi

    Here you can perform the settings for the D-channel protocol, the Point-to-Point protocol (Direct Dial-In) and au- tomatic data compression. Move the selection to the entry ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 43: Starting Operation Of The Isdn-Controller B1 Pci V4.0 With Stand-Alone

    "Alt + Esc". Enter the following command in order to unload the ISDN- Controller: load capi20 -d The system displays a message confirming the action. ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 44: Isdn-Controller B1 Pci V4.0 With Capi For The Capi Manager

    In the next dialog, select the ISDN-Controller “B1PCI” and press “Return”. Then enter your parameters: – PCI slot – Reports (fixed at 2) – Switch Type (D-channel protocol) ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 45: Installing Additional Isdn-Controllers

    In the list of available ISDN-Controllers, press “Ins”. Each time an ISDN-Controller is installed, another ISDN-Controller is displayed, complete with an available I/O address and in- terrupt level. ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 46: Removing The Isdn-Controller B1 Pci V4.0

    “Configuration Options” menu. Select “Exit” to leave the installation program. This concludes the uninstallation of the ISDN-Controller B1 PCI v4.0 in Novell NetWare. ISDN-Controller B1 PCI v4.0 – 9 Installation in Novell NetWare 6.x, 5.x, 4.x and 3.12...
  • Page 47: Installation In Linux

    Installation in Linux 10 Installation in Linux The ISDN-Controller B1 PCI v4.0 can be used with all current Linux distributions. For the SUSE Linux distributions, pre- compiled drivers are included in the software package. In versions SUSE Linux 8.2 or higher, a CAPI4Linux driver is al- ready integrated in the operating system.
  • Page 48 FTP clients a CAPI 2.0 interface for the popular Fax G3 application “HylaFAX” (CAPI4HylaFAX) the AVM Software Development Kit (SDK): a tool and re- sources for developing CAPI 2.0-compatible applica- tions For more information about the CAPI plug-in for the Generic PPP stack (pppd), see the INSTALL_ACTIVE-E.HTML file...
  • Page 49 Linux 8.2 or higher, a CAPI4Linux driver is already integrated in the operating system. Other Distributions The ISDN-Controller B1 PCI v4.0 can be used with all other current Linux distributions. Installation in other distributions or kernel versions must be adapted individually depending on the components used.
  • Page 50: Installation In Linux

    CD, in the tar archive of the corresponding SUSE version. Once the ISDN-Controller B1 PCI v4.0 has been physically in- stalled in your computer, the next step is to install the ISDN- Controller using YaST. Once installation has been completed, CAPI 2.0 applications can be started immediately.
  • Page 51 Detailed instructions on the capi4k-utils package can be found in the README file, which is also located in the above- mentioned directory. The completed translations of the modules are copied by the installation routine to the system directory ISDN-Controller B1 PCI v4.0 – 10 Installation in Linux...
  • Page 52: Testing The Installation

    At the end of the installation, perform a PING test to check whether the software has been installed correctly. For this purpose a test connection to the AVM Data Call Center (ADC) in Berlin is established over the “pppd” module. This test simulates dialing in to any ISP (Internet Service Provider) us- ing PPP sync in accordance with RFC 1618 over HDLC.
  • Page 53: Installing Additional Controllers

    PING transit time to the AVM server over your ISDN-Controller. This means that installation was suc- cessful. Now you can start a web browser and access the AVM home page. Enter www.avm.de/en. Pre-defined scripts for dialing into different Internet Service Providers over the console are included in the AVM software package.
  • Page 54: Installation In

    11 Installation in OS/2 AVM no longer provides support for use of the ISDN-Control- ler B1 PCI v4.0 with the OS/2 operating system and there is no further development of the driver software. For operation in OS/2 specially developed drivers are includ- ed with delivery.
  • Page 55 Confirm by clicking “OK”. Rebooting the system completes the installation of the driver software in OS/2. A new folder called “AVM” now appears on the desktop. It contains the programs “B1 Load” and “B1 Unload” along with the “B1 Readme” file.
  • Page 56: Starting Operation Of The Isdn-Controller B1 Pci V4.0

    B1 PCI installed” appears briefly upon start-up. Loading the ISDN-Controller The ISDN-Controller can be loaded manually by double-click- ing the “B1 Load” icon in the “AVM” program group. An OS/2 window is opened and displays the following message when the loading procedure is complete:...
  • Page 57: Installing Additional Controllers

    The “B1 Load” program loads all the controllers installed. 11.5 Removing the ISDN-Controller B1 PCI v4.0 To remove the ISDN-Controller B1 PCI v4.0 in OS/2, start the installation program from the installation CD. The program reports that an installed ISDN-Controller was found.
  • Page 58: Special Types Of Lines

    Special Types of Lines 12 Special Types of Lines The default installation of the ISDN-Controller B1 PCI v4.0 is for operation on ISDN point-to-multipoint lines. However, it also can be operated with ISDN point-to-point lines or the in- ternal bus of a PBX.
  • Page 59 Click the “Properties” command and select the “Ad- vanced” page. On this page, enable the option “Enable Support for ISDN point-to-point BRI (with direct-dial capability [DDI])”. Confirm your choices by clicking “OK”. Restart your computer. ISDN-Controller B1 PCI v4.0 – 12 Special Types of Lines...
  • Page 60 Enable the “P2P” option in the menu for setting the D-chan- nel protocol and restart Novell NetWare. Linux To operate the ISDN-Controller B1 PCI v4.0 at a point-to-point BRI (P2P=Point-to-Point), just change the /ETC/CAPI.CONF file manually. The same is true for multiple ISDN-Controller B1 PCI v4.0.
  • Page 61: Connecting The Isdn-Controller B1 Pci V4.0 To An Internal Pbx Bus

    Connecting the ISDN-Controller B1 PCI v4.0 to an Internal PBX Bus 12.2 Connecting the ISDN-Controller B1 PCI v4.0 to an Internal PBX Bus The ISDN-Controller B1 PCI v4.0 can be operated smoothly on internal S buses of telecommunications PBXs. The CAPI 2.0 drivers supplied with the software support the D-channel protocols DSS1 (Euro-ISDN), NI1, 5ESS and 1TR6.
  • Page 62 Connecting the ISDN-Controller B1 PCI v4.0 to an Internal PBX Bus are configured for the same ISDN service indicator (for instance, a router and FRITZ!data in Server Mode both respond to calls with the indicator “DATA64K”), the cor- responding application must use different MSN config- urations to direct calls correctly during parallel opera- tion.
  • Page 63: Avm System Architecture

    ISDN-Controller B1 PCI v4.0. 13.1 The Applications Interface CAPI 2.0 After the ISDN-Controller B1 PCI v4.0 has been installed, the ISDN interface CAPI 2.0 is available to the computer. This in- terface allows you to use all features of ISDN.
  • Page 64 Support for multiple concurrent applications Messages independent of the operating systems A message-passing mechanism tailored to specific op- erating systems for optimum system integration An asynchronous, event-driven mechanism for high throughput ISDN-Controller B1 PCI v4.0 – 13 AVM System Architecture...
  • Page 65: Idm Architecture

    (such as RAS) with CAPI-based hardware. This connection is realized by the AVM system drivers such as the AVM CAPI Port Driver or the AVM NDIS WAN CAPI Driver. This architecture permits the simultaneous use of CAPI, mo- dem and networking applications over ISDN.
  • Page 66: The Avm System Drivers

    The third AVM system driver, AVM ISDN TAPI Services, per- mits the use of telephony applications with the ISDN-Con- troller B1 PCI v4.0 in the Windows Vista, XP, and 2000 oper- ating systems. The AVM system drivers are located in the “Programs” folder on the installation CD.
  • Page 67 AVM ISDN CAPI Port Driver AVM ISDN CAPI Port Driver The AVM ISDN CAPI Port Driver allows you to use an ISDN- Controller as if it were a modem. The AVM ISDN CAPI Port Driver makes it possible for even programs designed for analog modems to communicate over the ISDN interface.
  • Page 68: Capi Softcompression X75/V42Bis

    AVM ISDN TAPI Services for CAPI AVM ISDN TAPI Services for CAPI AVM ISDN TAPI Services for CAPI are drivers which can be used to implement TAPI applications with AVM ISDN-Control- lers universally in Windows. TAPI (Telephony Application Programming Interface) is a te-...
  • Page 69: Capi Softfax

    For Novell NetWare, this informa- tion is contained in the sections “Configuring the ISDN-Con- troller B1 PCI v4.0 with Stand-Alone CAPI” on page 43 and “ISDN-Controller B1 PCI v4.0 with CAPI for the CAPI Manag- er” on page 45.
  • Page 70: Technical Specifications

    RJ45 TAE connector Function - 5 (b1) - 4 (b1) transmit - 4 (a1) - 3 (a1) transmit - 3 (a2) - 6 (a2) receive - 6 (b2) - 5 (b2) receive ISDN-Controller B1 PCI v4.0 – 14 Technical Specifications...
  • Page 71: Features At A Glance

    DTMF recognition and fax polling Designed for high-load operation with 2 B channels CAPI 2.0 interface fully downward-compatible with the older versions of the ISDN-Controller B1 PCI v4.0 Driver software loadable for national and international protocols: DSS1 (Euro ISDN), NI1, 5ESS and 1TR6 Software loaded on the ISDN-Controller, for instance, V.42bis data compression...
  • Page 72: Technical Specifications At A Glance

    DOS) and Connect32 (Windows Vista, XP and 2000) compatible with FRITZ!data and IDtrans, AVM ISDN NDIS WAN CAPI driver and AVM ISDN CAPI Port driver for Windows Vista, XP and 2000, AVM TAPI Services for CAPI (Windows Vista, XP and 2000)
  • Page 73: Troubleshooting

    If you combine adapters without plug-and-play support (Leg- acy) such as the AVM ISDN-Controller B1 v3.0 in the same system with PCI or ISA plug-and-play cards, the resources (I/O addresses and IRQ levels) used by the hardware without plug-and-play support should be so designated in the com- puter’s BIOS.
  • Page 74 “B1 Test” program (Windows 2000, Windows NT, Windows 98, Windows 95, Windows 3.x, MS-DOS) located in the “AVM” program group and in the folder of the driver soft- ware on the installation CD. This program performs function- al tests of the ISDN-Controller’s components and displays the results.
  • Page 75: Error Messages

    CAPI-based DOS applications in DOS win- dows. No connection charge information is displayed. The drivers for the ISDN-Controller B1 PCI v4.0 allow CAPI- based applications to display charge information. This infor- mation is only available if the corresponding ISDN service has been enabled by your ISDN carrier.
  • Page 76 “IRQ x assigned to: PCI/ISA PnP”. If you combine adapters without plug-and-play support (Leg- acy) such as the AVM ISDN-Controller B1 v3.0 in the same system with PCI or ISA plug-and-play cards, the resources (I/O addresses and IRQ levels) used by the hardware without plug-and-play support should be so designated in the com- puter’s BIOS.
  • Page 77 Error message: “... at least one application is registered.” Possible cause: You tried to unload or uninstall the AVM ISDN-Controller B1 PCI v4.0 while an application (such as a terminal or fax program) was still using it. Remedy: First end all applications that use the ISDN-Control- ler.
  • Page 78: Customer Service Guide

    User's manual A printed user's manual is included in the ISDN-Control- ler B1 PCI v4.0 package and a PDF file is available in the “INFO\MANUAL” folder on the installation CD. You can install the Acrobat reader to view PDF docu-...
  • Page 79: Information In The Internet

    AVM products as well as new product announcements and new product versions. 16.3 Updates AVM provides updates of the drivers and the firmware for the ISDN-Controller B1 PCI v4.0 for free downloading over the Internet. Enter the following URL to download the current driver software: www.avm.de/en/download...
  • Page 80 AVM support by clicking the “Send” button. Our Support team will respond by e-mail as quickly as possible. Support by Fax If necessary, you can reach AVM Support at the fax number: +49 (0)30 / 39 97 62 66 The following information should be included in your fax: Your name and address.
  • Page 81 Support by Fax Are you able to dial up a data connection to the AVM Data Call Center (ADC) with your ISDN-Controller B1 PCI v4.0? Attempt to make a test connection to the ADC with the ISDN Tool “Connect32”, included with your ISDN-Con- troller, or with “FRITZ!data”.
  • Page 82: Index

    OS/2 Dial-Up Networking in Windows 2000 direct dial-in in Windows 98 documentation in Windows Me downward compatibility in Windows NT driver signature options in Windows Vista driver software in Windows XP installing driver software ISDN-Controller B1 PCI v4.0 – Index...
  • Page 83 Manager installing driver software Novell NetWare with Stand-Alone removing controllers CAPI starting operation of the ISDN-Con- support troller B1 PCI v4.0 with Stand-Alone by e-mail CAPI by fax system requirements operating systems operating systems supported technical specifications of the AVM ISDN- OS/2 Controller B1 PCI v4.0...
  • Page 84 Windows Vista changing settings error messages installing additional controllers installing the driver software removing the controller Windows XP changing settings error messages installing additional controllers installing the driver software removing the controller ISDN-Controller B1 PCI v4.0 – Index...
  • Page 85: Declaration Of Ce Conformity

    EN 55022/9.98 + A1/10.00 + A2/01.03 Class B EN 55024/9.98 + A1/10.01 + A2/01.03 The CE symbol confirms that this product conforms with the above mentioned norms and regulations. Berlin, 16/03/2000 Peter Faxel, Technical Director ISDN-Controller B1 PCI v4.0 – Declaration of CE Conformity...
