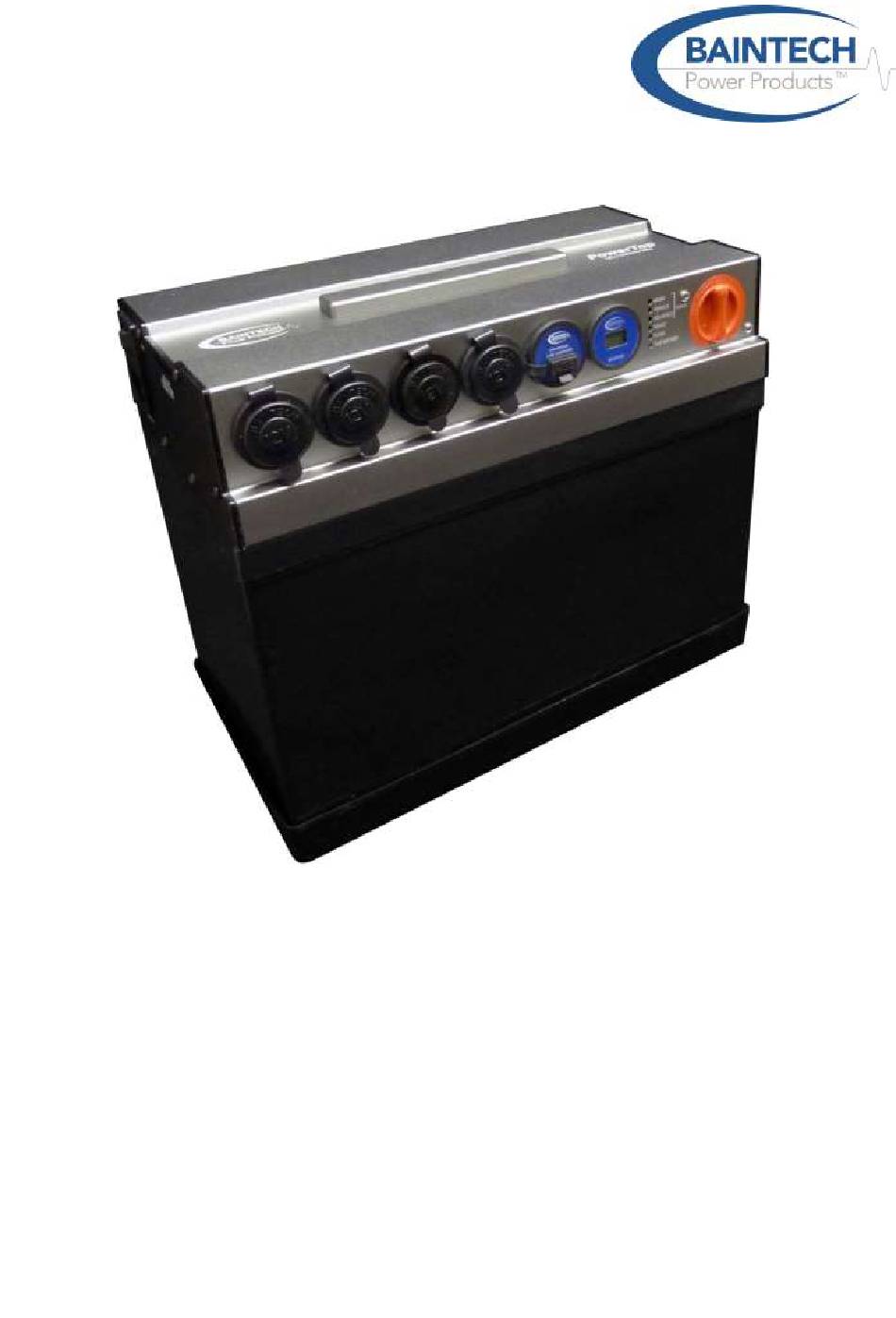

- Page 1 Baintech PowerTop User Operation Manual This manual must be read in its entirety before operating the PowerTop and retained for future reference.
- Page 2 PowerTop Sides ................................3 Charging .................................... 4 Internal Charger ................................4 Fast Charging ................................. 4 Unregulated DC Supply Connection ..........................5 Vehicle Connection ............................... 5 Load Connection ................................6 PowerTop Technical Information ............................7 Features ..................................7 Specifications ................................7...
- Page 3 Do not block air vents on the side of the unit Ensure the PowerTop is mounted upright Ensure the PowerTop is only used in a well-ventilated location Ensure the PowerTop avoids contact with water Opening the PowerTop unit or...
- Page 4 Charging Battery isolator switch must be ON for charging. Internal Charger The PowerTop comes with an internal 5A charger. The charger operates when the AC plug is connected into the unit and the power switch is turned on. Fast Charging...
- Page 5 Vehicle Connection If you want to connect a vehicle alternator output to the PowerTop connect a cable to the vehicle 12V output e.g. connect to ciga plug or starter battery on one end of the cable, on the other end of the cable plug into the Blue Anderson socket labelled Vehicle charge input.
- Page 6 Maximum load/Socket 10A The Baintech LockOn socket system is designed to ensure your gear such as fridges stays connected on the roughest trips. It’s easy to use – simply turn the plug clockwise and the locking mechanism engages, ensuring all your essential gear can stay connected, even on the roughest treks.
- Page 7 Replacement parts are available after warranty period. Opening unit voids warranty. For standard warranty terms please visit http://www.baintech.com.au/warranty Replacement battery available, please contact Bainbridge Technologies This manual is subject to change please see Baintech.com.au for the latest manual (current V3)
