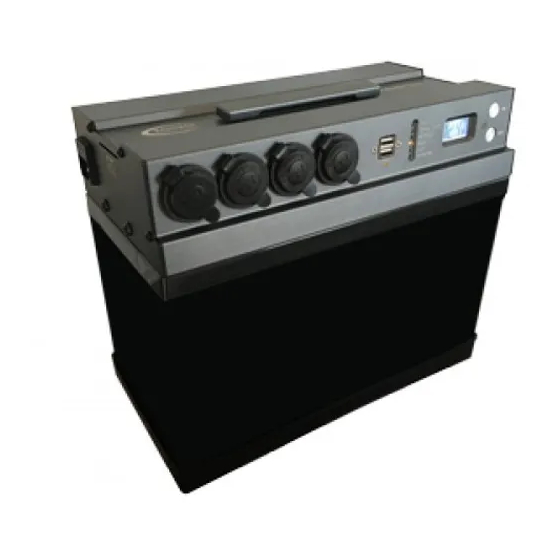

Summary of Contents for Baintech PowerTop V3
-
Page 2: Important Safety Instructions
Children should be supervised to ensure that they do not play with the appliance. If supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacture or its service agent. -Include a warning against recharging non-rechargeable batteries. PowerTop V3 User Operation Manual... - Page 3 PowerTop V3 User Operation Manual...
- Page 4 PowerTop V3 User Operation Manual...
- Page 5 PowerTop V3 User Operation Manual...
- Page 6 If you require faster charging we recommend using a 20A (maximum) charger suited for Gel batteries with the following voltage set points: • Bulk 14.2V • Float 13.7V The external charger is to be connected to the Grey Anderson connector labelled 50A Battery Output. PowerTop V3 User Operation Manual...
- Page 7 PowerTop V3 User Operation Manual...
- Page 8 If you want to connect a DC charging source that is unregulated, for example a 12V PV panel (36 Cell) without a regulator it must be connected to the Red Anderson Connector input labelled Solar/External Charge. PowerTop V3 User Operation Manual...
- Page 9 Blue Anderson Plug on the PowerTop labelled Vehicle charge input. Fuse the cable at the start battery end of the cable. The vehicle voltage must be above 13.2V to charge the PowerTop battery. Recommended fuse size is 35 AMPS max. PowerTop V3 User Operation Manual...
- Page 10 FLOAT BATTERY LED will switch on when the BOOST cut-out voltage is reached and will switch off when the Boost cut-in voltage is reached. The Float LED indicates the battery is not being charged via the Solar/Ext (RED Anderson) and Vehicle (Blue Anderson ) inputs. PowerTop V3 User Operation Manual...
- Page 11 Engel x 2 Maximum load/Socket 10A • Maximum load/Socket 5V /2.3A • self-resettable thermal breaker. Maximum recommended load across all Sockets output are protected by a 20A sockets as a guide is 200W, dependent on ambient temperature. PowerTop V3 User Operation Manual...
-
Page 12: Specifications
Maximum Load across all sockets 200W Dimensions (L x W x H) 330 x 175 x 275 mm Weight 32kg Warranty 12 months • After warranty period service is available. • Opening unit voids warranty. PowerTop V3 User Operation Manual... - Page 13 Damaged electrical cords are a hazard, in the case of damaged or frayed electrical cord DON’T use and seek replacement from the supplier. DON’T Recharge non-rechargeable batteries. PowerTop V3 User Operation Manual...
- Page 14 The Grey Anderson connector accepts the D250SA. This manual is subject to change & specifications may vary without any notice. Please see for the latest version of this manual (Version 3 of the PowerTop) . PowerTop V3 User Operation Manual...
