ADS Technologies USBX-404 Specification

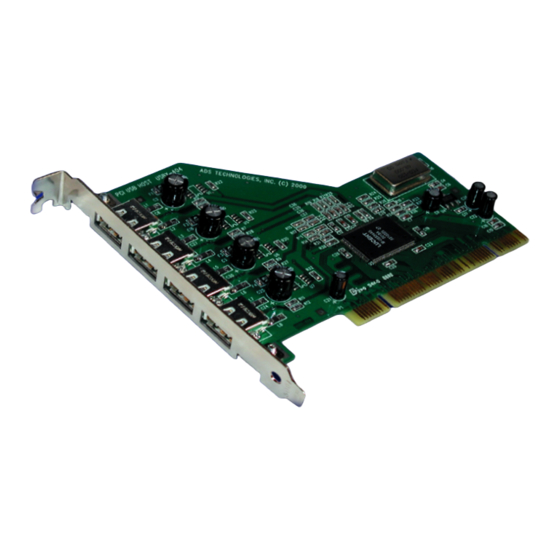

USB Turbo Quad 4
• Add four full-powered USB ports to your computer
• Full 48 Mbits/sec of bandwidth for your USB devices
• Connect high bandwidth devices without compromising the
performance of other connected devices
• Full 12 Mbits/sec bandwidth per port
• Supports up to 127 devices per port
• OHCI-compliant, supports Mac and PC USB devices
• USB Rev 1.1 compliant
• PCI 2.1 compliant (32 bit, 33 MHz PCI Local Bus)
• Plug & Play
• Hot Swappable
• Integrated dual-speed transceivers (1.5 Mbits/sec. &
12 Mbits/sec)
APPLICATIONS:
• Upgrade to USB or add extra USB ports
• Simultaneous operation of multiple
high-performance devices
REQUIREMENTS:
• Available PCI slot
• Windows 98, 98 SE, Windows 2000 or
Windows ME
• Mac G3 or later
• Mac OS 8.6 or higher
INCLUDES:
• USB Turbo Quad 4 OHCI compliant PCI four-port host card

Technical Specifications

Interface: PCI Card
Data Transfer Rate:
12 Mbps per port
Power:
500mA supplied to each
USB port
U.S. Headquarters
Cerritos, CA 90703
(562) 926-1928 (800) 888-5244
•
Fax (562) 926-0518
http://www.adstech.com
5 Volt VDC
Connectors:
Four standard USB ports
Certifications
FCC Part 15, Class B CE
The power of four
USB PCI Cards in
The USB Turbo Quad 4 utilizes Lucent' s QuardaBus technology, which
allows a single PCI card to provide four independent Full Speed USB
Ports.
The Turbo Quad 4 provides four separate USB Host controllers. Each
host controller provides the full 12 MB/sec USB bandwidth for low (1.5
Mb/sec.) and Full (12 Mb/sec.) speed peripherals.
The Turbo Quad 4 is an OpenHCI compliant board, which means it
works with Mac and Windows based computers while providing signifi-
cant USB performance benefits and reduced CPU overhead.
The USB Turbo Quad 4 offers a powerful performance advantage over
all other USB host controllers by providing full USB bandwidth for each
port rather than sharing USB bandwidth over all ports. This results in
an increase in the number of devices that can simultaneously operate.
Only the USB Turbo Quad 4 ensures High-Bandwidth simultaneous
operation of USB devices such as cameras, speakers, scanners,
modems and other bandwidth intensive peripherals.
USB Turbo Quad 4
DIMENSIONS: 11"W x 6.5"H x 2.5"D
UPC 7-57887-40400-0
ADS Technologies Distribution Centre
ONE !
WEIGHT: 2 lbs
•
PART# USBX-404
•
Shannon Industrial Estate
Shannon, CO. Clare Ireland
Information Contact:
353.61.702042
