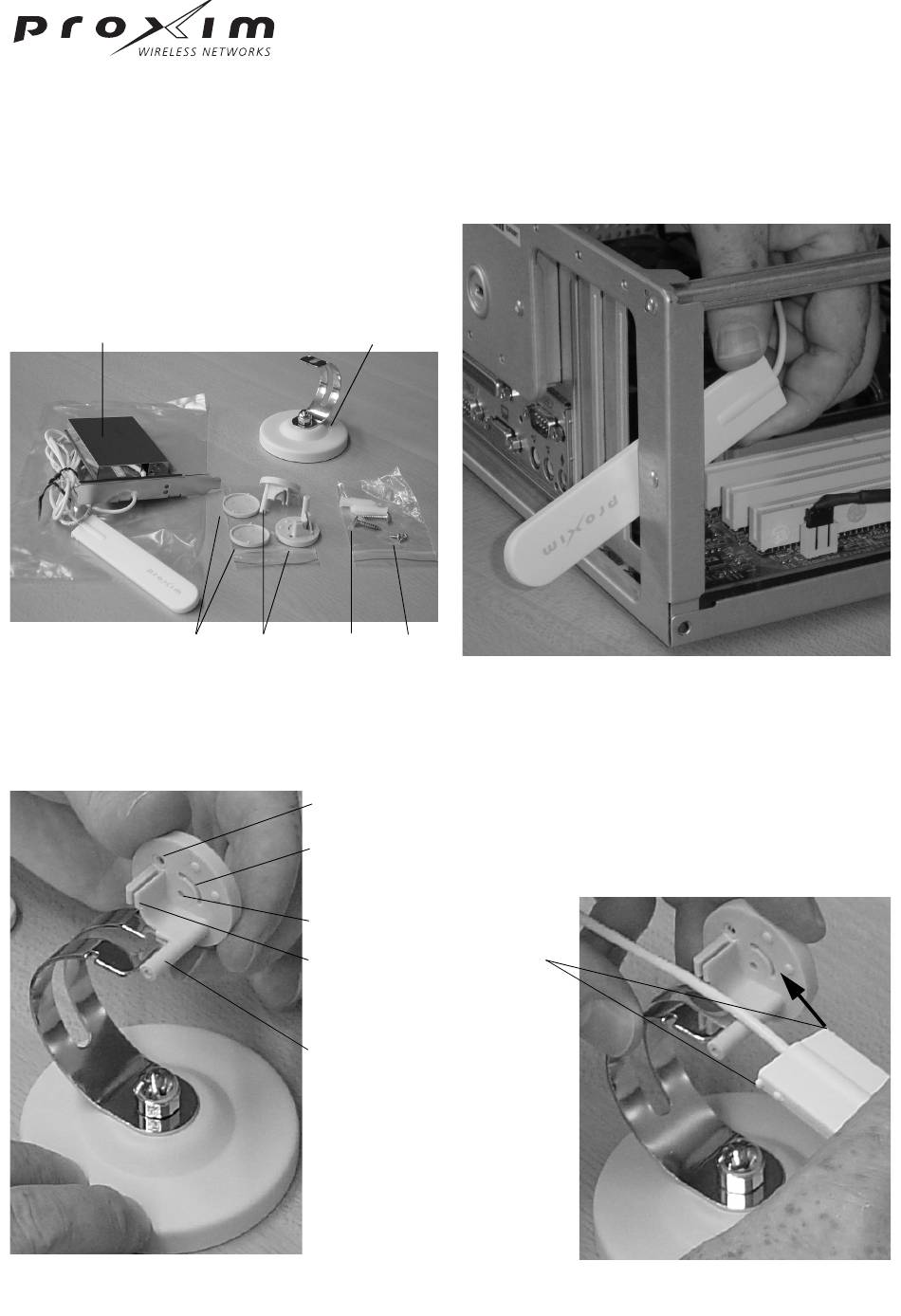

1 Verify the kit contents.
a. One (1) PCI Card with antenna
b. One (1) Antenna base
c. Two (2) mounting brackets
d. Two (2) bracket covers
e. Two (2) small screws
f. Mounting hardware
• Two (2) large screws
• Two (2) wall anchors
a
3 Attach one of the mounting brackets to
the antenna base.
• The mounting brackets are grooved to fit onto
the base.
© 2003 Proxim Corporation
d
c
f
hole for screw
semi-circular
hole
center hole
groove that
slides onto the
base
bracket arm
for screw
ORiNOCO 11a/b/g PCI Card:
Antenna Installation
2 Install the PCI Card in your computer and
feed the antenna through the PCI slot and
out the back of the computer.
• See the Quick Start Flyer for complete installation
instructions for the ORiNOCO 11a/b/g PCI Card.
b
e
4 Lay the antenna across the top of the
base.
• The bottom of the antenna has two knobs on
each side.
• Insert the two knobs into the holes molded into
the mounting bracket.
• One knob fits into the center hole.
• The second knob fits into the semi-circular
hole.
antenna
knobs
66179/A
