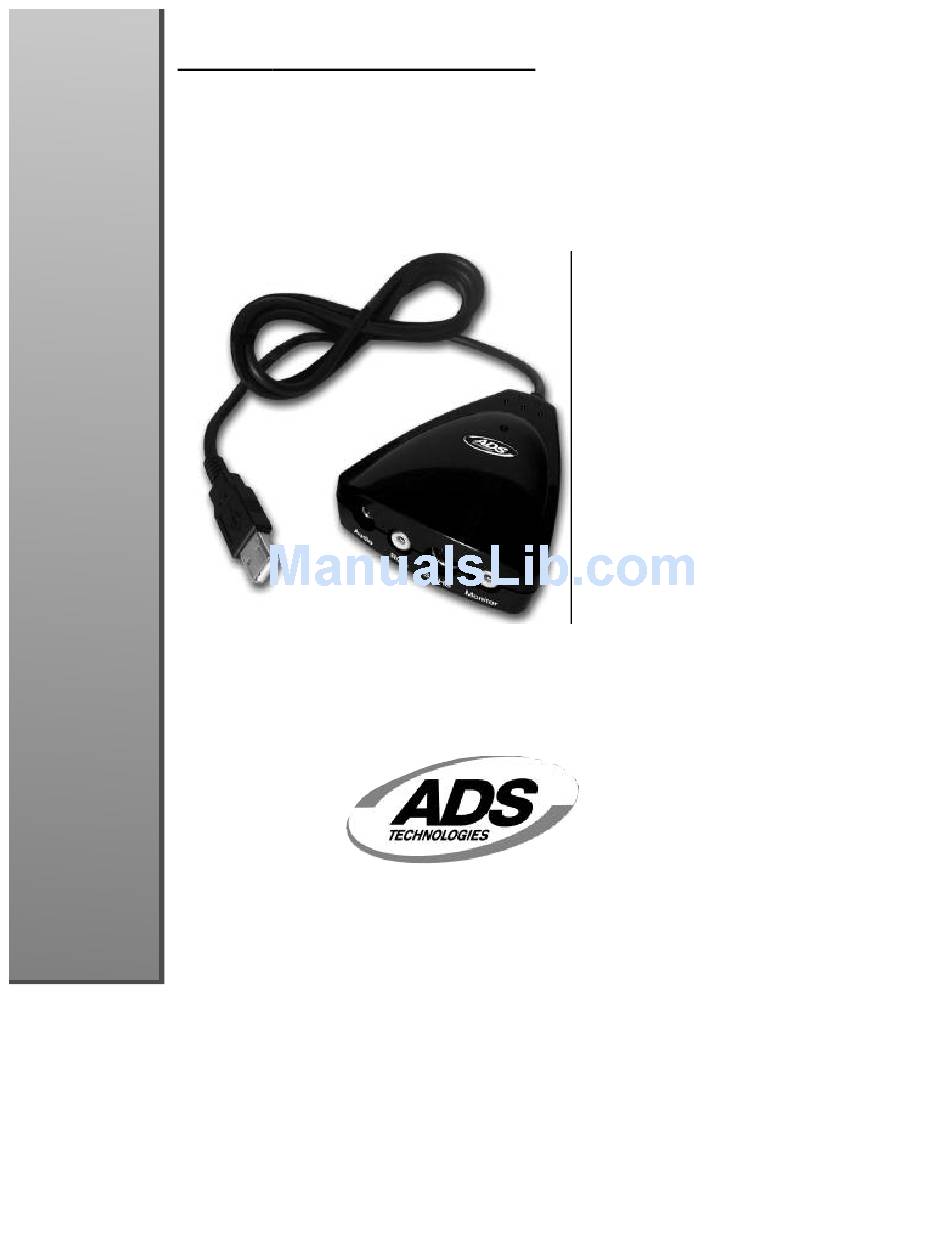

- Page 1 USB Instant Video User Guide, Rev. 2.0 Product Part# USBAV-170 Product UPC: 7-57887-17000-4 website: www.adstech.com email: support@adstech.com...
- Page 2 International Business Machines, Inc. ADS is a registered trademark of ADS Technologies Inc. ADS Technologies (ADS) makes no warranty of any kind with regard to this material, including but not limited to, the implied war- ranties of merchantability and fitness for a particular purpose. The information furnished within this written document is for information purposes only and is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents A letter from the President of ADS ..5 Package Contents ..... 6 System Requirements . -
Page 4: A Letter From The President Of Ads
More over they are winners with our customers. I wish to thank you for choosing ADS Technologies and I hope you enjoy your new multimedia experience. Sincerely,... -
Page 5: Package Contents
INTRODUCTION Package Contents: 1. USB Instant Video device w/ 6 ft. USB cable attached 2. Audio/Video connection cable 3. USB Instant Video CD 4. User’s Guide System Requirements: • A computer system equipped with a PENTIUM II 300MMHZ / AMD K7 Chip or above / Apple G3, G4 Based MAC •... -
Page 6: Hardware Installation (Windows)
HARDWARE INSTALLATION INSTRUCTIONS FOR WINDOW’S Windows 98, 98SE, ME, 2000, XP Do not connect the device to the USB port at this time. INSTALL Device Drivers FIRST ! 1. Insert the USB INSTANT VIDEO CD. 2. Our AUTORUN CD will display the USB INSTANT VIDEO SETUP SCREEN. - Page 7 NOTE: Since USB INSTANT VIDEO has an AUDIO COMPONENT, our Installer will install a USB AUDIO DEVICE. 7. Once Your Computer has restarted. Plug the USB INSTANT VIDEO into an available USB PORT. NOTE: IT IS ADVISABLE THAT THE USB INSTANT VIDEO NOT BE PLUGGED INTO A USB HUB TO AVOID USB BANDWIDTH ISSUES.
-
Page 8: Software Installation (Windows)
PLUG IN ALL YOUR CABLES The USB INSTANT VIDEO Hardware is now installed. Plug the included AUDIO/VIDEO Cable to your VCR, DVD Player or CAM- CORDER. Plug the other end into the USB INSTANT VIDEO. The MONITOR connector on the USB INSTANT VIDEO allows you to LOOP the VIDEO back to your TV. - Page 9 VIDEOSTUDIO 6 AND USB INSTANT VIDEO: USB INSTANT VIDEO can capture analog video and audio into sev- eral formats. The most popular kinds are AVI and MPEG1 (VCD). AVI file capture is popular for turning video into email attachments or for streaming video on the web. VideoStudio 6 can easily con- vert AVI files into various streaming formats.
- Page 10 11. Change the settings for the VIDEO FORMAT to window below: MAKE SURE YOU PICK: Compression: I420 Frame Size: 352x240 12. Click OPTIONS again in the CAPTURE SETTINGS Tab and Select CAPTURE PROPERTIES. You will see a box similar to the one below: 13.
- Page 11 CAPTURING VIDEO AND EXPORTING TO VCD With VIDEOSTUDIO 6 correctly configured to capture in VCD mode, you can now go ahead and start capturing video by clicking on the CAPTURE VIDEO ICON on the upper left side of the screen. Once you have captured all your clips and placed on the TIME- LINE, added effects and titles, you can CLICK on the FINISH TAB and CLICK on SAVE TO VCD.
-
Page 12: Hardware Installation (Mac)
HARDWARE INSTALLATION FOR MAC’S Do not connect the device to the USB port at this time. INSTALL Video Drivers FIRST! STEP 1. (Installing Drivers for the USB Instant Video) A. Insert the USB Instant Video CD. B. From the Install screen, INSTALL DRIVERS first. When installing the extension, you will notice the following: Follow Driver installation instructions. -
Page 13: Mac Software Installation
MAC SOFTWARE INSTALLATION Installing Software applications A. Insert the USB Instant Video CD. B. From the Install screen, INSTALL each software application by running it’s separate installer. C. Be sure to install the Instant Video drivers before connecting the device to your Mac. D. -
Page 14: Help Resources
HELP RESOURCES Video Studio Help – Press "F1" on your keyboard at any time. Video Studio User Manual – on CD Video Studio Guide – Turn this on by clicking on "G" (global prop- erties) and selecting preferences. ADS Web Site: www.adstech.com To Learn more about VIDEO CD go to : www.vcdhelp.com Support Online:... -
Page 15: Service And Warranty
Return/Replacement: If you need to return your ADS Technologies product you should return the product directly to the dealer or store where you purchased the product. Each individual com- puter store or dealer sets product returns policies for their customers. ADS Technologies, Inc. - Page 16 workmanship for a period of One (1) year from the date of original purchase from ADS or an authorized ADS dealer. This warranty applies only to the original purchase of the product and is not transferable. This warranty does not cover any incompatibilities due to the user’s computer, hardware, software or other related system configuration in which the product interfaces.
- Page 17 North America Office ADS Technologies 12627 Hidden Creek Way Cerritos, CA 90703 Phone: (562) 926-1928 Fax: (562) 926-0518 Support: (562) 926-4338 European Office: ADS Technologies Shannon Industrial Estate Shannon Co. Clare, Ireland Phone: +353.61.702042 www.adstech.com email: support@adstech.com Manual Part# 170-51...
